DELPHI

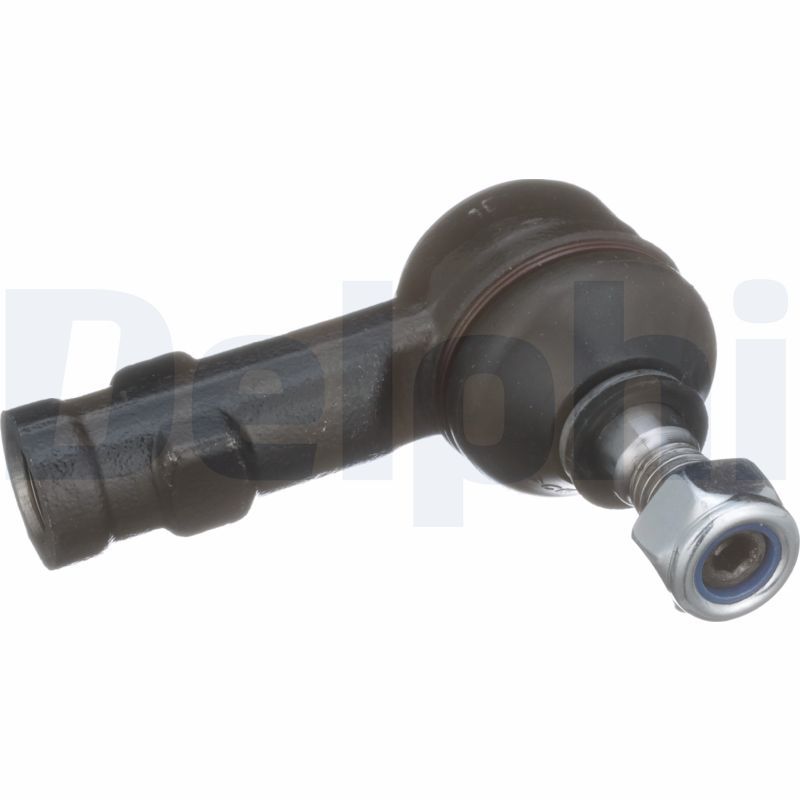

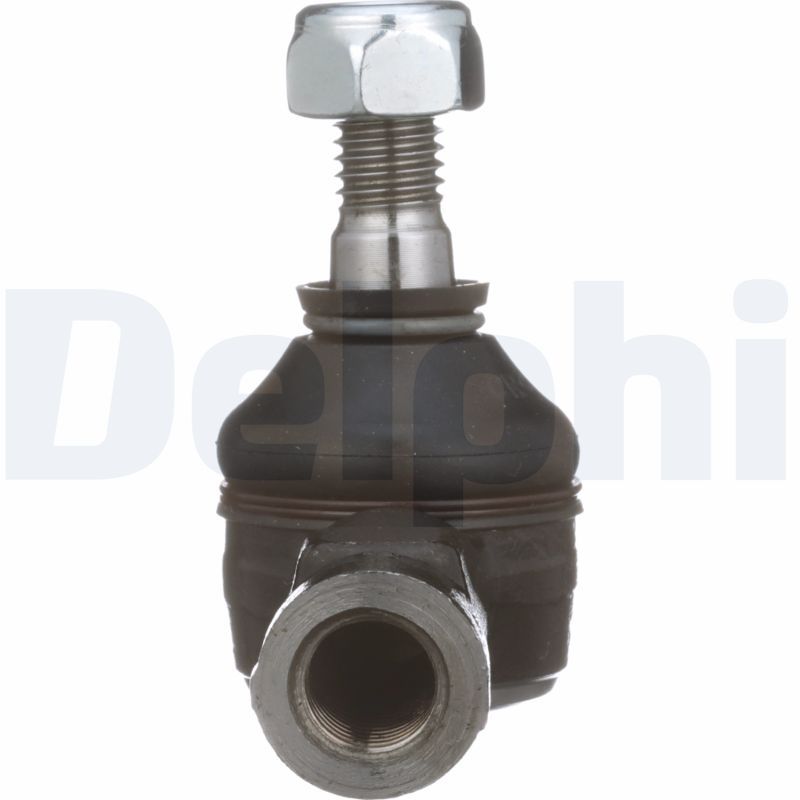

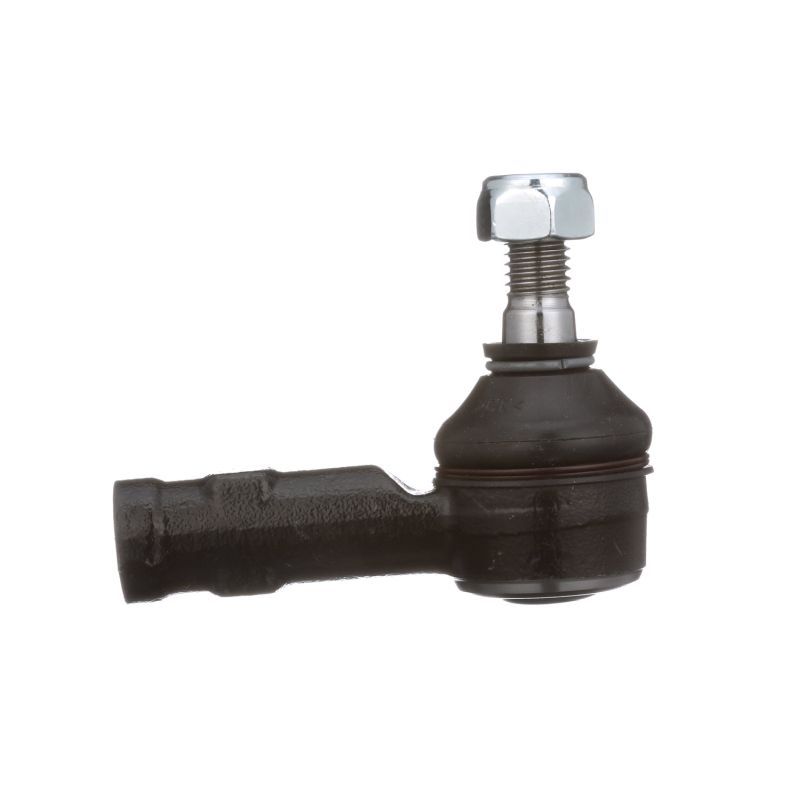

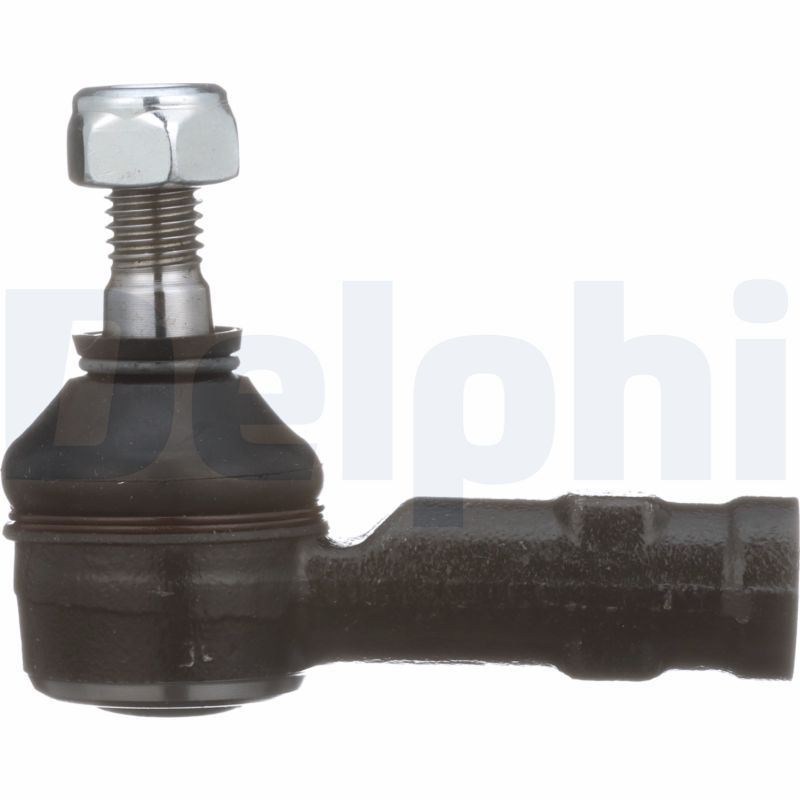

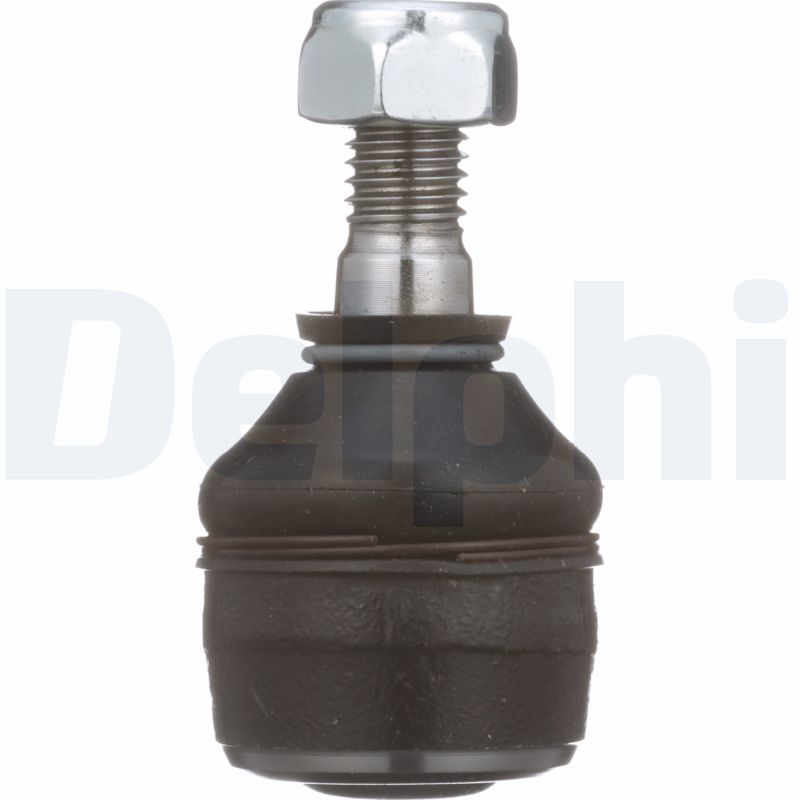

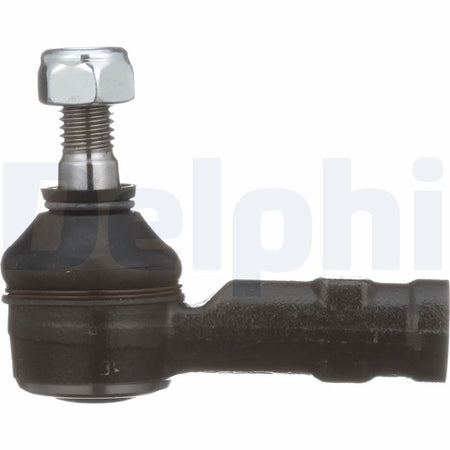

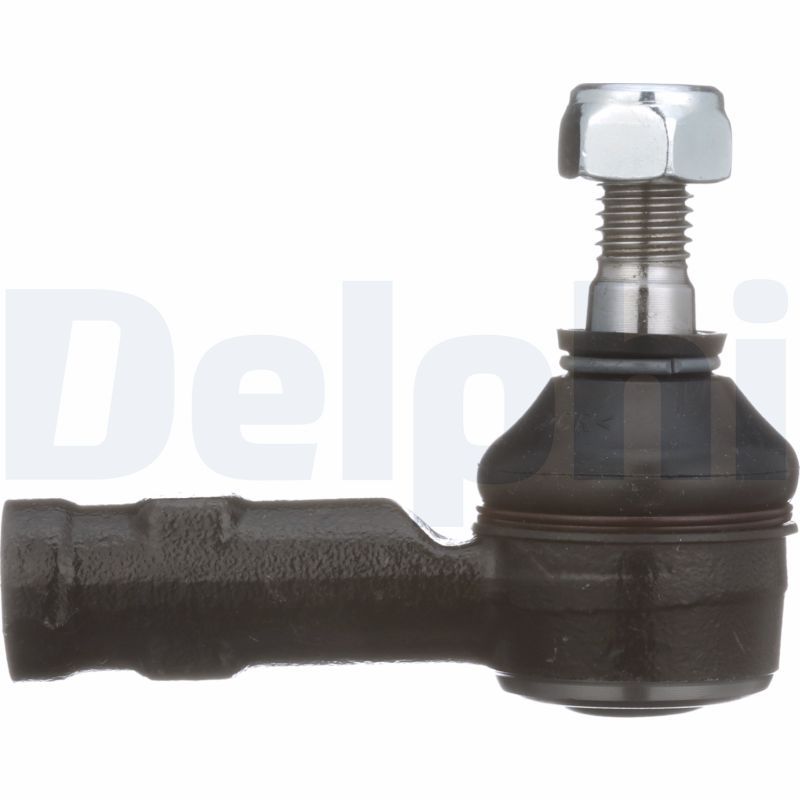

Delphi TA769 Tie Rod End

SKU: TA769
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£8.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Free UK delivery

Free shipping available on all orders across the UK.

  • Royal Mail Tracked 48 = Free
  • Royal Mail Tracked 24 = £2.99
  • FedEx Next Day = £4.99
VOLVO
240 (P242, P244)
Description Cylinder Capacity Horse Power Year
2.0 1986 CCM 90 HP 08/1976 - 07/1979
2.1 2127 CCM 97 HP 08/1974 - 07/1975
2.1 2127 CCM 100 HP 08/1975 - 07/1980
2.1 2127 CCM 107 HP 08/1980 - 07/1984
2.1 2127 CCM 122 HP 08/1974 - 09/1983
2.1 Turbo 2127 CCM 155 HP 08/1980 - 07/1984
2.3 2316 CCM 110 HP 08/1984 - 07/1986
2.3 2316 CCM 112 HP 08/1980 - 07/1984
2.3 2315 CCM 113 HP 08/1986 - 07/1987
2.3 2316 CCM 131 HP 08/1983 - 07/1985
2.3 2316 CCM 136 HP 08/1980 - 07/1983
2.3 2316 CCM 140 HP 08/1978 - 12/1982
2.4 Diesel 2383 CCM 82 HP 08/1978 - 07/1985
2.3 i Cat 2316 CCM 115 HP 08/1986 - 07/1993
2.4 Diesel 2383 CCM 79 HP 08/1987 - 08/1993
240 Kombi (P245)
Description Cylinder Capacity Horse Power Year
2.1 2127 CCM 100 HP 08/1975 - 07/1980
2.1 2127 CCM 109 HP 08/1980 - 07/1984
2.1 2127 CCM 122 HP 08/1974 - 09/1983
2.1 Turbo 2127 CCM 155 HP 08/1980 - 07/1985
2.3 2316 CCM 110 HP 08/1984 - 07/1986
2.3 2316 CCM 112 HP 08/1980 - 07/1984
2.3 2316 CCM 113 HP 08/1986 - 07/1987
2.3 2316 CCM 131 HP 08/1984 - 07/1985
2.3 2316 CCM 133 HP 08/1984 - 12/1988
2.4 Diesel 2383 CCM 82 HP 04/1979 - 08/1993
2.3 i Cat 2316 CCM 115 HP 08/1986 - 07/1993
2.3 2316 CCM 136 HP 08/1980 - 12/1984
2.0 1986 CCM 82 HP 08/1974 - 07/1975
2.0 1986 CCM 97 HP 08/1980 - 12/1984
2.1 2127 CCM 97 HP 08/1974 - 07/1975
260 (P262, P264)
Description Cylinder Capacity Horse Power Year
2.7 2664 CCM 140 HP 08/1974 - 07/1980
2.7 2664 CCM 148 HP 08/1978 - 07/1982
2.7 2664 CCM 125 HP 08/1976 - 07/1982
2.8 2849 CCM 129 HP 08/1980 - 07/1982
2.8 2849 CCM 155 HP 08/1980 - 07/1982
260 Estate (P265)
Description Cylinder Capacity Horse Power Year
2.7 2664 CCM 148 HP 10/1978 - 07/1982
2.7 2664 CCM 140 HP 07/1975 - 07/1982
2.7 2664 CCM 125 HP 08/1975 - 07/1977
2.8 2849 CCM 155 HP 08/1980 - 07/1982
260 Coupe (P262)
Description Cylinder Capacity Horse Power Year
2.7 2664 CCM 140 HP 08/1977 - 07/1978
740 (744)
Description Cylinder Capacity Horse Power Year
2.3 2315 CCM 113 HP 09/1985 - 12/1989
2.3 2316 CCM 114 HP 08/1984 - 07/1990
2.3 2316 CCM 131 HP 08/1984 - 12/1992
2.3 2316 CCM 156 HP 08/1988 - 07/1991
2.4 Diesel 2383 CCM 82 HP 08/1984 - 07/1992
2.3 2316 CCM 115 HP 08/1987 - 07/1992
2.3 Turbo 2316 CCM 156 HP 08/1986 - 07/1989
2.3 2316 CCM 117 HP 10/1984 - 07/1988
2.3 2316 CCM 129 HP 08/1983 - 07/1984
2.3 2316 CCM 159 HP 08/1987 - 07/1989
2.3 Turbo 2316 CCM 165 HP 08/1989 - 07/1990
2.3 Turbo 2316 CCM 190 HP 08/1989 - 07/1990
2.3 2316 CCM 151 HP 08/1988 - 08/1992
2.4 TD 2383 CCM 113 HP 08/1984 - 07/1990
2.0 1986 CCM 121 HP 08/1985 - 07/1992
740 Kombi (745)
Description Cylinder Capacity Horse Power Year
2.3 2316 CCM 113 HP 08/1985 - 12/1989
2.3 2316 CCM 114 HP 09/1985 - 07/1990
2.3 2316 CCM 131 HP 08/1985 - 07/1988
2.3 Turbo 2316 CCM 156 HP 08/1986 - 07/1989
2.4 Diesel 2383 CCM 82 HP 08/1985 - 07/1988
2.4 Turbo-Diesel 2383 CCM 109 HP 09/1985 - 07/1992
2.0 1986 CCM 112 HP 08/1989 - 07/1991
2.3 2316 CCM 115 HP 08/1987 - 07/1992
2.3 2316 CCM 156 HP 08/1988 - 07/1990
2.4 TD Interc. 2383 CCM 122 HP 08/1986 - 07/1988
2.3 Turbo 2316 CCM 165 HP 08/1989 - 07/1990
2.3 2316 CCM 131 HP 07/1990 - 12/1992
2.3 2316 CCM 159 HP 08/1987 - 07/1989
2.3 Turbo 2316 CCM 182 HP 08/1985 - 07/1988
2.3 Turbo 2316 CCM 190 HP 08/1989 - 07/1990
760 (704, 764)
Description Cylinder Capacity Horse Power Year
2.4 Turbo Diesel 2383 CCM 109 HP 04/1987 - 07/1992
2.3 Turbo 2316 CCM 182 HP 08/1984 - 10/1988
2.8 2849 CCM 143 HP 05/1986 - 08/1991
2.8 2849 CCM 156 HP 08/1981 - 07/1988
2.4 Turbo Diesel 2383 CCM 112 HP 08/1982 - 07/1987
2.4 TD Interc. 2383 CCM 115 HP 08/1987 - 07/1992
2.8 (764) 2849 CCM 147 HP 08/1986 - 07/1990
2.3 Turbo 2316 CCM 173 HP 08/1982 - 07/1984
2.3 2316 CCM 165 HP 01/1988 - 07/1992
2.3 2316 CCM 114 HP 08/1984 - 08/1987
2.8 2849 CCM 170 HP 09/1987 - 08/1990
2.3 2316 CCM 176 HP 08/1984 - 08/1987
2.3 2316 CCM 173 HP 01/1984 - 03/1986
760 Kombi (704, 765)
Description Cylinder Capacity Horse Power Year
2.8 (765) 2849 CCM 143 HP 05/1986 - 08/1991
2.8 (765) 2849 CCM 156 HP 08/1986 - 08/1990
2.4 TD Interc. (765) 2383 CCM 116 HP 01/1983 - 07/1992
2.4 D 2383 CCM 82 HP 01/1982 - 07/1992
2.3 Turbo 2316 CCM 182 HP 08/1984 - 08/1990
2.3 2316 CCM 114 HP 08/1984 - 08/1987
2.8 2849 CCM 170 HP 08/1984 - 08/1990
2.4 TDiC 2383 CCM 122 HP 09/1987 - 08/1990
780 (782)
Description Cylinder Capacity Horse Power Year
2.9 2849 CCM 156 HP 08/1986 - 07/1987
2.9 2849 CCM 147 HP 08/1987 - 07/1990
2.4 D 2383 CCM 122 HP 04/1986 - 07/1990
940 (944)
Description Cylinder Capacity Horse Power Year
2.0 1986 CCM 112 HP 01/1992 - 07/1994
2.3 2316 CCM 131 HP 08/1990 - 12/1994
2.3 2316 CCM 116 HP 08/1992 - 07/1994
2.3 Turbo 2316 CCM 165 HP 08/1990 - 07/1994
2.4 TD Intercooler 2383 CCM 122 HP 08/1990 - 12/1994
2.4 Turbo Diesel 2383 CCM 109 HP 08/1990 - 12/1994
2.3 Turbo 2316 CCM 190 HP 08/1991 - 07/1993
2.3 2316 CCM 156 HP 08/1990 - 07/1991
2.4 D 2383 CCM 82 HP 08/1990 - 12/1994
2.0 Turbo 1986 CCM 155 HP 08/1990 - 12/1994
2.0 1986 CCM 139 HP 09/1990 - 09/1993
2.3 2316 CCM 160 HP 09/1990 - 09/1993
2.3 2316 CCM 135 HP 05/1991 - 03/1995
940 Kombi (945)
Description Cylinder Capacity Horse Power Year
2.0 1986 CCM 112 HP 01/1992 - 07/1994
2.3 2316 CCM 131 HP 08/1990 - 12/1994
2.3 Turbo 2316 CCM 165 HP 08/1990 - 07/1994
2.3 2316 CCM 116 HP 08/1992 - 07/1994
2.3 2316 CCM 155 HP 08/1990 - 07/1991
2.4 Turbo Diesel 2383 CCM 109 HP 08/1990 - 07/1994
2.3 Turbo 2316 CCM 190 HP 08/1991 - 07/1993
2.0 Turbo 1986 CCM 155 HP 01/1991 - 07/1995
2.4 D 2383 CCM 82 HP 08/1990 - 07/1995
2.4 TD Intercooler 2383 CCM 122 HP 08/1990 - 08/1994
940 Mk II Estate (945)
Description Cylinder Capacity Horse Power Year
2.3 2316 CCM 131 HP 08/1994 - 10/1998
2.3 2316 CCM 116 HP 08/1994 - 07/1995
2.3 Turbo 2316 CCM 165 HP 08/1994 - 10/1998
2.4 TD Interc. 2383 CCM 122 HP 08/1994 - 10/1998
2.3 ti 2316 CCM 135 HP 01/1995 - 10/1998
2.3 Turbo 2316 CCM 171 HP 08/1995 - 10/1998
2.0 Turbo 1986 CCM 155 HP 04/1996 - 10/1998
940 Mk II (944)
Description Cylinder Capacity Horse Power Year
2.3 2316 CCM 131 HP 08/1994 - 10/1998
2.3 2316 CCM 116 HP 08/1994 - 07/1995
2.3 Turbo 2316 CCM 165 HP 08/1994 - 10/1998
2.4 TD Interc. 2383 CCM 122 HP 08/1994 - 10/1998
2.3 ti 2316 CCM 135 HP 01/1995 - 10/1998
2.0 Turbo 1986 CCM 155 HP 04/1996 - 10/1998
2.0 1986 CCM 139 HP 10/1994 - 05/1997
2.0 GLT 1986 CCM 189 HP 10/1994 - 05/1997
2.3 Turbo 2316 CCM 171 HP 01/1995 - 12/1998
960 (964)
Description Cylinder Capacity Horse Power Year
2.4 TD Interc. 2383 CCM 115 HP 09/1991 - 07/1994
2.9 2922 CCM 204 HP 08/1990 - 07/1994
2.0 1986 CCM 190 HP 08/1990 - 09/1993
2.0 1986 CCM 140 HP 09/1990 - 08/1993
2.3 Turbo 2316 CCM 165 HP 09/1990 - 08/1993
2.0 1986 CCM 111 HP 09/1990 - 09/1993
960 Kombi (965)
Description Cylinder Capacity Horse Power Year
2.4 TD Interc. 2383 CCM 115 HP 09/1991 - 07/1994
2.9 2922 CCM 204 HP 08/1990 - 07/1994
2.0 1986 CCM 190 HP 08/1990 - 09/1993
2.0 1986 CCM 140 HP 09/1990 - 08/1993
2.3 Turbo 2316 CCM 165 HP 09/1990 - 08/1993
2.4 Tdi 2383 CCM 122 HP 09/1990 - 08/1993
960 Mk II (964)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 204 HP 07/1994 - 12/1996
2.5 2473 CCM 170 HP 07/1994 - 12/1996
960 Mk II Estate (965)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 204 HP 09/1994 - 12/1996
2.5 2473 CCM 170 HP 08/1994 - 12/1996
S90 I (964)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 180 HP 01/1997 - 05/1998
2.9 2922 CCM 204 HP 01/1997 - 05/1998
V90 I Estate (965)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 180 HP 01/1997 - 12/1998
2.9 2922 CCM 204 HP 01/1997 - 12/1998
Function : Tie Rod End
Thread Size : M14x2
Thread Type : with right-hand thread
Cone Size [mm] : 12.8
Fitting Position : Front Axle
Length [mm] : 92
Width [mm] : 38
Height [mm] : 73
  • Vendor DELPHI
  • SKU TA769
  • Barcode 5012759851791
  • VOLVO : 1205658 35169440 3516944 1329675 2717015
  • APEC : AST6830
  • BORG & BECK : BTR4064
  • CORTECO : 49401521
  • FEBI BILSTEIN : 12077
  • FIRST LINE : FTR4064
  • LEMFÖRDER : 12023 03
  • MEYLE : 516 020 3283
  • MONROE : L2751
  • NAPA : NST6830
  • Schaeffler FAG : 840 0960 10
  • SKF : VKDY 316003
  • TRW : JTE426
