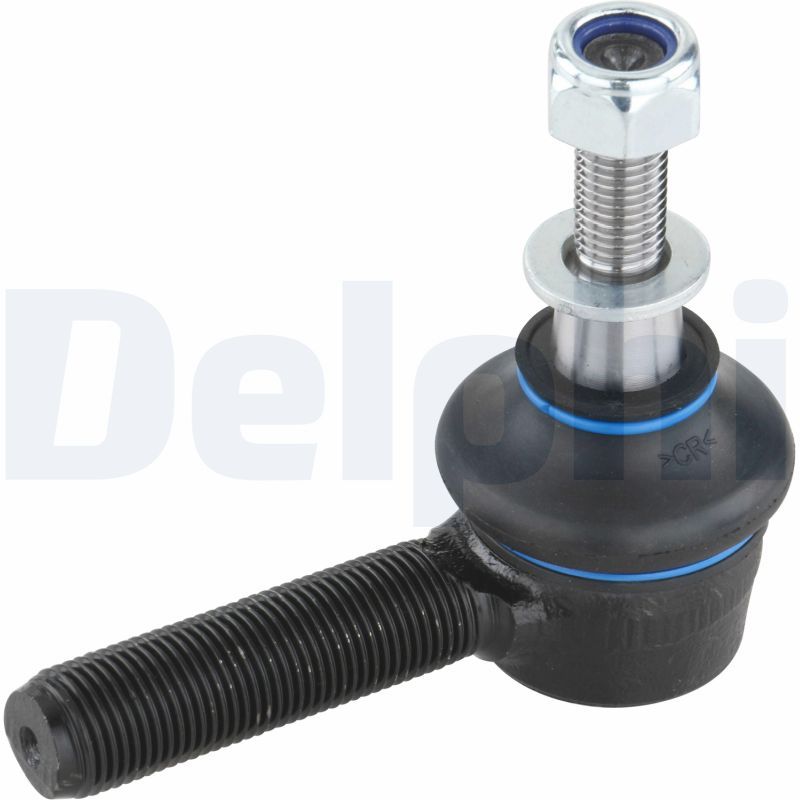

Delphi TA870 Tie Rod End - 1

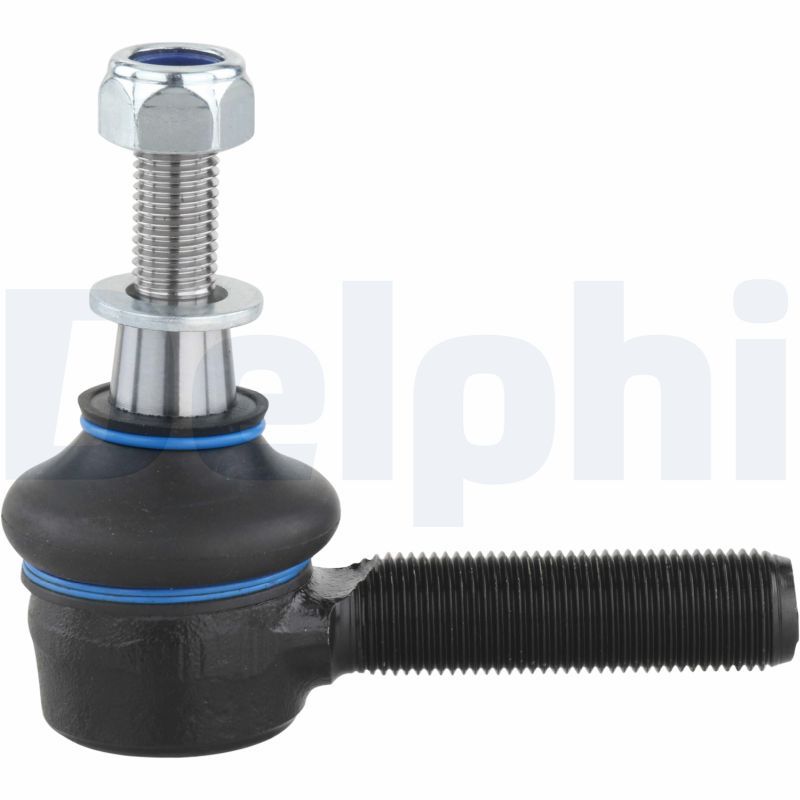

Delphi TA870 Tie Rod End - 2

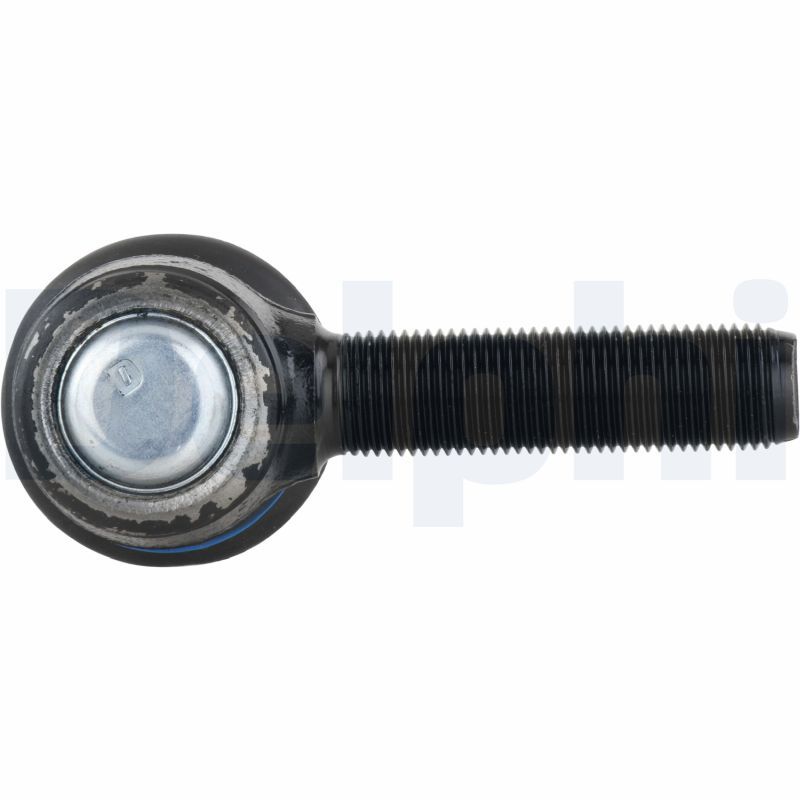

Delphi TA870 Tie Rod End - 3

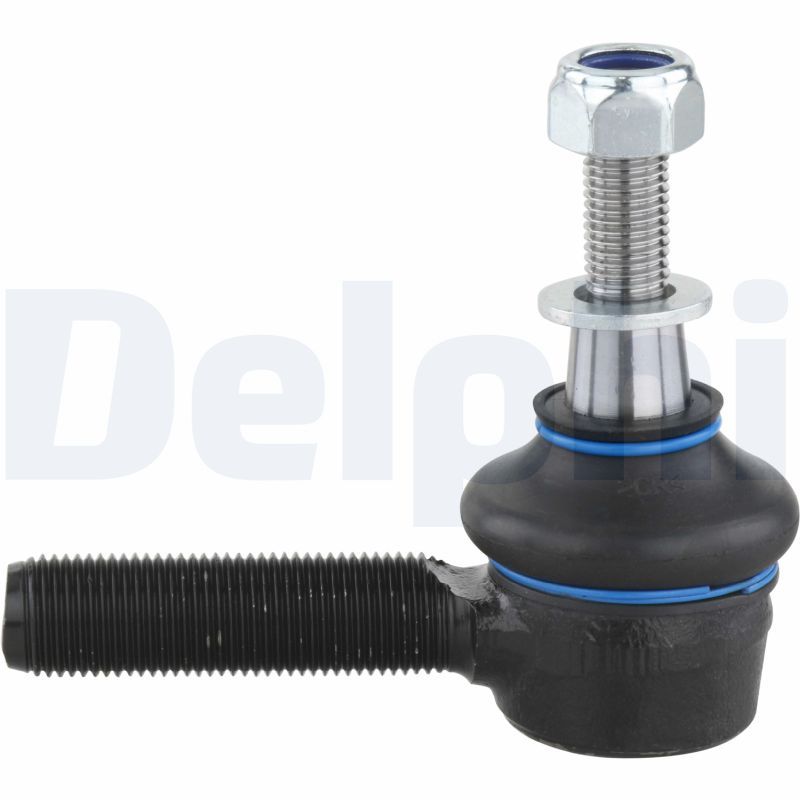

Delphi TA870 Tie Rod End - 4

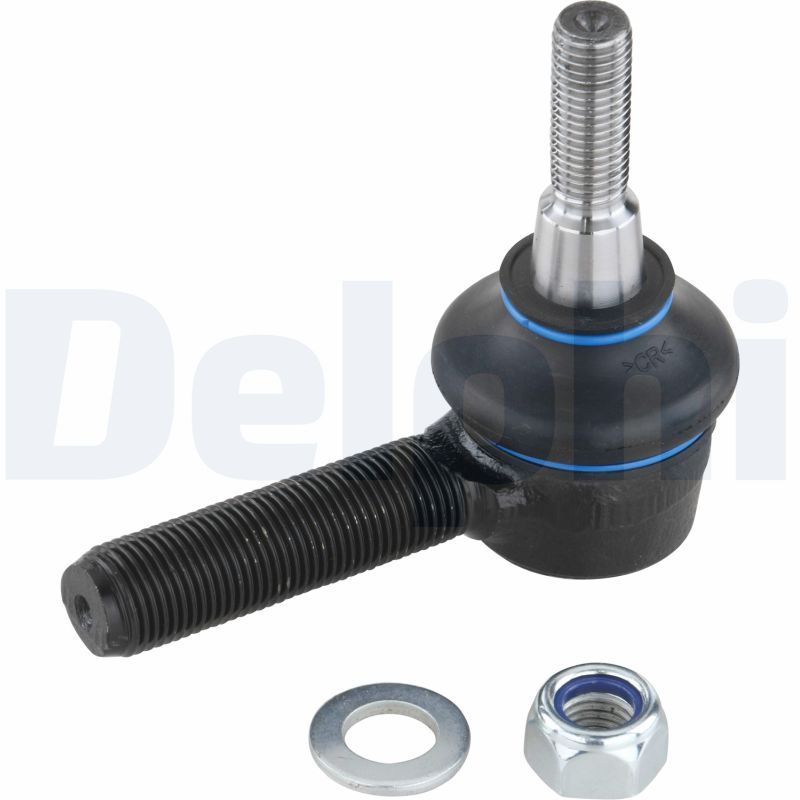

Delphi TA870 Tie Rod End - 5

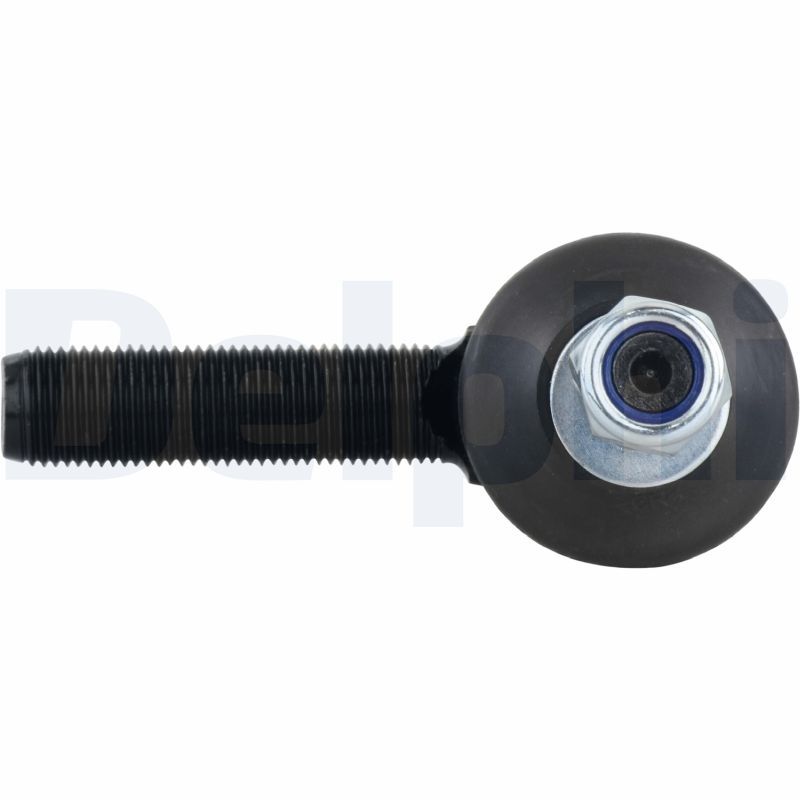

Delphi TA870 Tie Rod End - 6
Delphi TA870 Tie Rod End video
Delphi TA870 Tie Rod End - 1
Delphi TA870 Tie Rod End - 2
Delphi TA870 Tie Rod End - 3
Delphi TA870 Tie Rod End - 4
Delphi TA870 Tie Rod End - 5
Delphi TA870 Tie Rod End - 6
Delphi TA870 Tie Rod End video
DELPHI

Delphi TA870 Tie Rod End

SKU: TA870
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£12.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
DEFENDER Station Wagon (L316, L315)
Description Cylinder Capacity Horse Power Year
2.5 TDI 4x4 (L316) 2495 CCM 113 HP 08/1990 - 12/1998
3.9 V8 4x4 (L316) 3947 CCM 185 HP 11/1998 - 02/2016
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
2.2 Td4 4x4 (L316) 2198 CCM 122 HP 08/2011 - 02/2016
2.5 4x4 2495 CCM 83 HP 09/1990 - 12/1994
3.5 4x4 3528 CCM 117 HP 09/1990 - 08/1993
2.4 Td4 4x4 (L316) 2402 CCM 122 HP 10/2006 - 02/2016
2.5 D 4x4 (L316) 2495 CCM 69 HP 09/1990 - 07/1994
2.2 Td4 4x4 (L316) 2198 CCM 150 HP 02/2015 - 02/2016
3.5 4x4 3528 CCM 136 HP 09/1990 - 07/1994
2.4 Td4 4x4 2402 CCM 140 HP 07/2007 - 02/2016
DEFENDER Cabrio (L316)
Description Cylinder Capacity Horse Power Year
2.5 TDI 4x4 (L316) 2495 CCM 113 HP 08/1990 - 11/1998
2.2 Td4 4x4 (L317) 2198 CCM 122 HP 08/2011 - 02/2016
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
3.9 4x4 3947 CCM 182 HP 04/1998 - 09/2000
2.4 Td4 4x4 (L317) 2402 CCM 122 HP 05/2007 - 02/2016
2.5 D 4x4 (L316) 2495 CCM 69 HP 09/1990 - 07/1994
3.5 4x4 3528 CCM 117 HP 09/1990 - 08/1993
DEFENDER Platform/Chassis (L316)
Description Cylinder Capacity Horse Power Year
2.2 Td4 4x4 (L317) 2198 CCM 122 HP 08/2011 - 02/2016
2.4 TD4 4x4 2402 CCM 122 HP 05/2007 - 02/2016
DEFENDER Pick Up (L316)
Description Cylinder Capacity Horse Power Year
2.2 Td4 4x4 (L317) 2198 CCM 122 HP 08/2011 - 02/2016
2.5 Td5 4x4 (L316) 2495 CCM 122 HP 06/1998 - 02/2016
4.0 4x4 3947 CCM 182 HP 04/1998 - 09/2000
2.4 Td4 4x4 (L317) 2402 CCM 122 HP 05/2007 - 02/2016
DISCOVERY I (LJ)
Description Cylinder Capacity Horse Power Year
2.5 TDI 4x4 2495 CCM 113 HP 10/1989 - 10/1998
3.5 4x4 (SALLJG) 3531 CCM 154 HP 06/1989 - 06/1994
2.0 16 V 4x4 1994 CCM 135 HP 06/1989 - 10/1998
4.0 4x4 3947 CCM 182 HP 09/1993 - 10/1998
3.5 4x4 3531 CCM 166 HP 06/1989 - 06/1994
3.5 4x4 3528 CCM 133 HP 06/1989 - 08/1990
2.5 TDI 4x4 2495 CCM 122 HP 06/1993 - 10/1998
4.0 4x4 3947 CCM 185 HP 09/1993 - 10/1998
3.5 4x4 3528 CCM 114 HP 11/1989 - 09/1990
RANGE ROVER
Description Cylinder Capacity Horse Power Year
3.5 Vogue 4x4 3528 CCM 126 HP 08/1981 - 09/1990
3.5 4x4 3528 CCM 146 HP 01/1987 - 09/1990
3.5 Vogue 4x4 3528 CCM 163 HP 10/1985 - 09/1990
3.9 Cat 4x4 3947 CCM 173 HP 11/1988 - 07/1994
2.4 TD 4x4 2393 CCM 106 HP 04/1986 - 12/1990
3.9 Vogue SEI 4x4 3947 CCM 182 HP 11/1988 - 07/1994
4.3 Vogue LSE 4x4 4275 CCM 203 HP 09/1992 - 07/1994
3.5 4x4 3528 CCM 132 HP 07/1970 - 08/1981
2.4 TD 4x4 2393 CCM 121 HP 10/1989 - 02/1992
2.5 TDi 4x4 2495 CCM 113 HP 11/1992 - 04/1996
2.5 TD 4x4 2498 CCM 121 HP 10/1989 - 11/1992
3.5 4x4 3528 CCM 131 HP 10/1969 - 08/1991
2.4 TD 4x4 2393 CCM 113 HP 04/1986 - 07/1994
3.9 4x4 3947 CCM 185 HP 10/1989 - 12/1994

The Delphi TA870 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 11/16"x16 thread size, with right-hand thread thread type, front axle right fitting position, and 107 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : 11/16"x16
Thread Type : with right-hand thread
Cone Size [mm] : 15
Paired article number : TA1002
Fitting Position : Front Axle Right
Length [mm] : 107
Width [mm] : 40
Height [mm] : 97
  • Vendor DELPHI
  • SKU TA870
  • Barcode 5012759851999
  • ROVER : RTC5869
  • LAND ROVER : NRC6007 NTC1886 RTC1800 RTC5869
  • APEC : AST6061
  • BLUE PRINT : ADJ138714
  • BORG & BECK : BTR4191
  • BORG & BECK : BTR5930
  • CORTECO : 49400452
  • FEBI BILSTEIN : 14122
  • FIRST LINE : FTR4191
  • FIRST LINE : FTR5930
  • LEMFÖRDER : 26696 01
  • LEMFÖRDER : 27925 01
  • MEYLE : 53-16 020 0011
  • MONROE : L17115
  • NAPA : NST6061
  • Schaeffler FAG : 840 0691 10
  • SKF : VKDY 317502
  • TRW : JTE238
