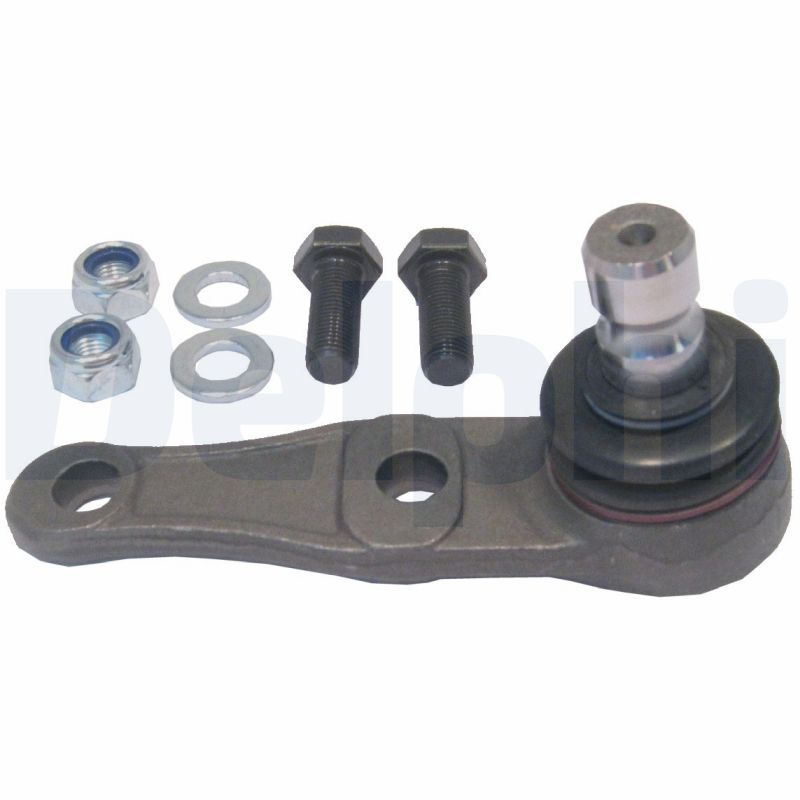

Delphi TC1228 Ball Joint - 1
Delphi TC1228 Ball Joint - 1
DELPHI

Delphi TC1228 Ball Joint

SKU: TC1228
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£19.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

KIA
CARENS I MPV (FC, FJ)
Description Cylinder Capacity Horse Power Year
1.8 i 1793 CCM 110 HP 11/2000 - 07/2002
1.6 1594 CCM 105 HP 07/2002 - 08/2006
2.0 CRDi 1991 CCM 113 HP 07/2002 - 04/2006
2.0 CVVT 1975 CCM 139 HP 08/2004 - 05/2007
2.0 CRDi 1991 CCM 140 HP 11/2005 - 04/2006
1.8 i 16V 1793 CCM 110 HP 03/2000 - 05/2002
1.8 i 1793 CCM 126 HP 03/2000 - 08/2006
PICANTO I (SA)
Description Cylinder Capacity Horse Power Year
1.1 CRDi 1120 CCM 75 HP 10/2005 - 04/2011
SHUMA Saloon (FB)
Description Cylinder Capacity Horse Power Year
1.5 i 16V (AFB222) 1498 CCM 88 HP 10/1997 - 10/2001
SHUMA I (FB)
Description Cylinder Capacity Horse Power Year
1.5 i 16V (AFB242) 1498 CCM 88 HP 10/1997 - 03/2001
1.8 i 16V 1793 CCM 110 HP 10/1997 - 03/2001
SHUMA II (FB)
Description Cylinder Capacity Horse Power Year
1.6 1594 CCM 101 HP 05/2001 - 08/2004
1.8 1793 CCM 114 HP 04/2003 - 08/2004
SHUMA II Saloon (FB)
Description Cylinder Capacity Horse Power Year
1.6 1594 CCM 101 HP 05/2001 - 05/2004

The Delphi TC1228 Ball Joint is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records Pinch Bolt 18mm thread size, 150 mm length, 45 mm width, and front axle, lower, and rear axle fitting position. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Ball Joint
Thread Size : Pinch Bolt 18mm
Length [mm] : 150
Width [mm] : 45
Height [mm] : 75
Fitting Position : Front Axle
Fitting Position : Lower
Fitting Position : Rear Axle
Fitting Position : inner
Fitting Position : Centre
  • Vendor DELPHI
  • SKU TC1228
  • Barcode 5012759346990
  • KIA : 0K2A1-34-550A 0K2FA-34-550
  • BLUE PRINT : ADG08629
  • BLUE PRINT : ADG08690
  • BORG & BECK : BBJ5400
  • CORTECO : 49395768
  • FEBI BILSTEIN : 41816
  • FEBI BILSTEIN : 41883
  • FIRST LINE : FBJ5400
  • LEMFÖRDER : 30704 01
  • MEYLE : 28-16 010 0003
  • MONROE : L18506
  • Schaeffler FAG : 825 0097 10
  • SKF : VKDS 815012
  • TRW : JBJ7545
  • User manual
