DELPHI

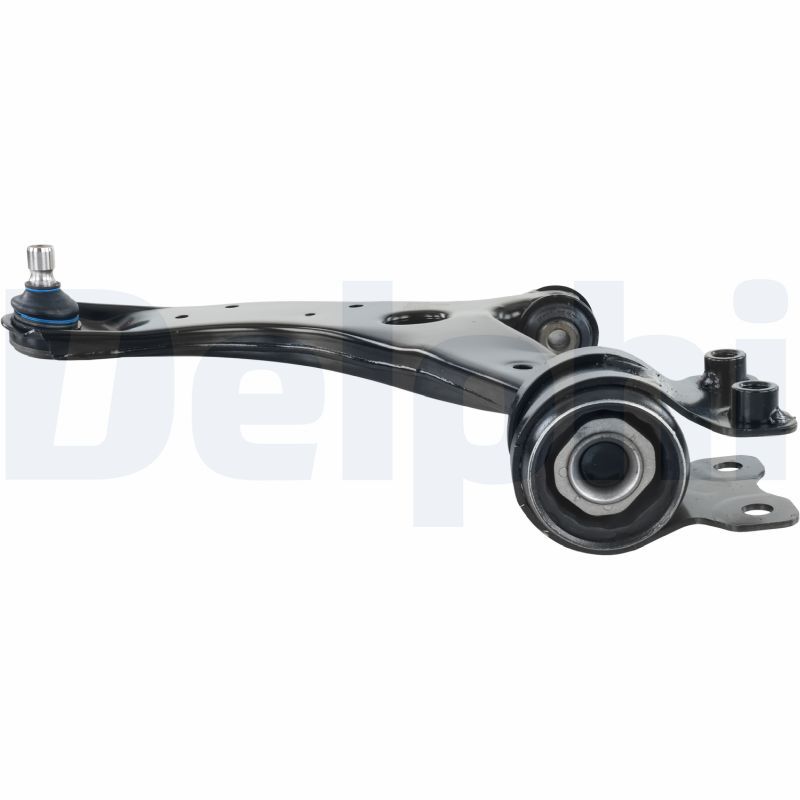

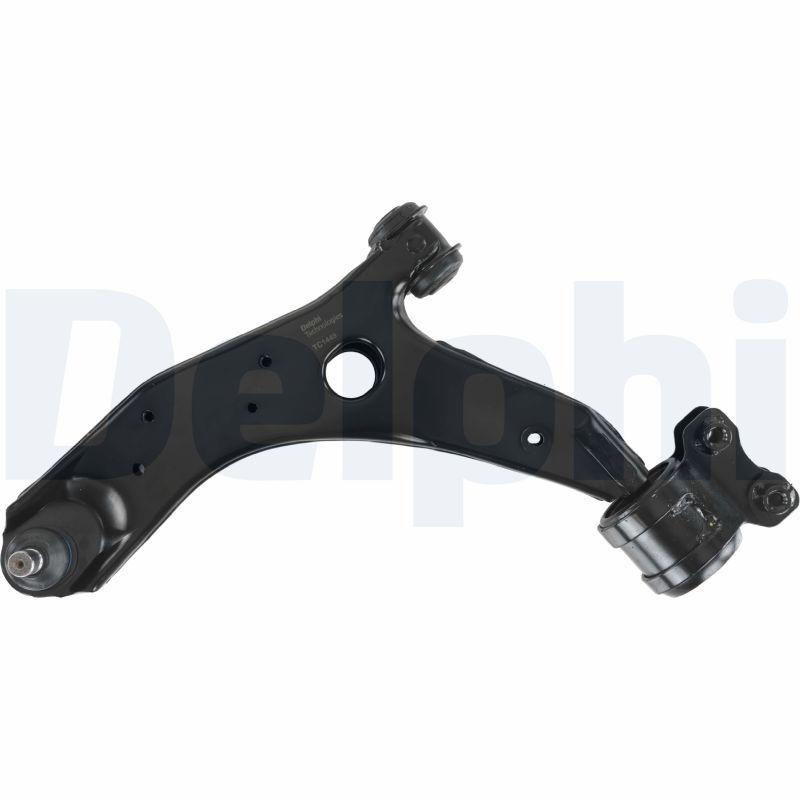

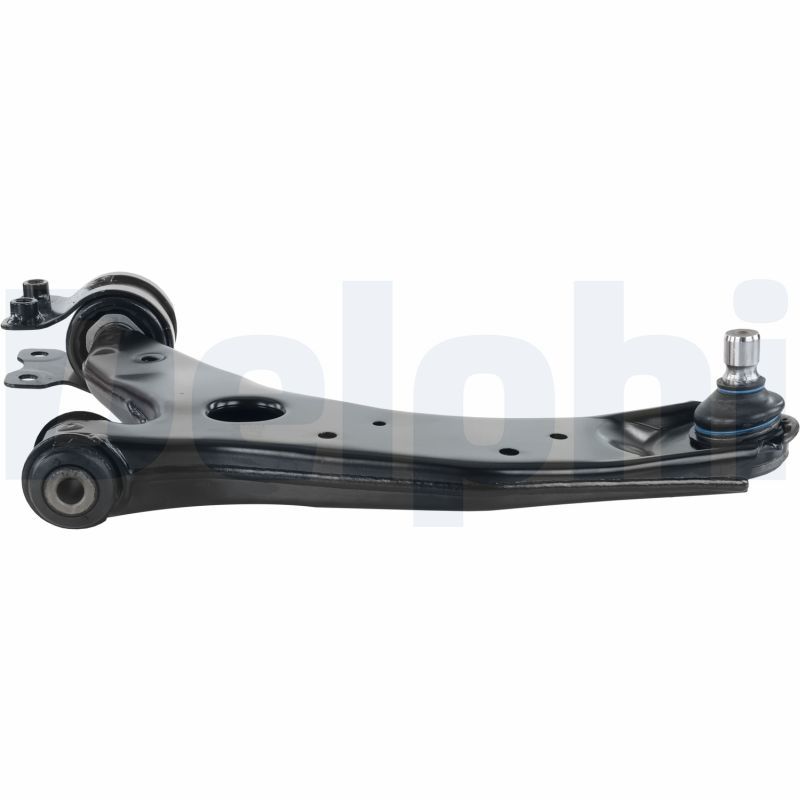

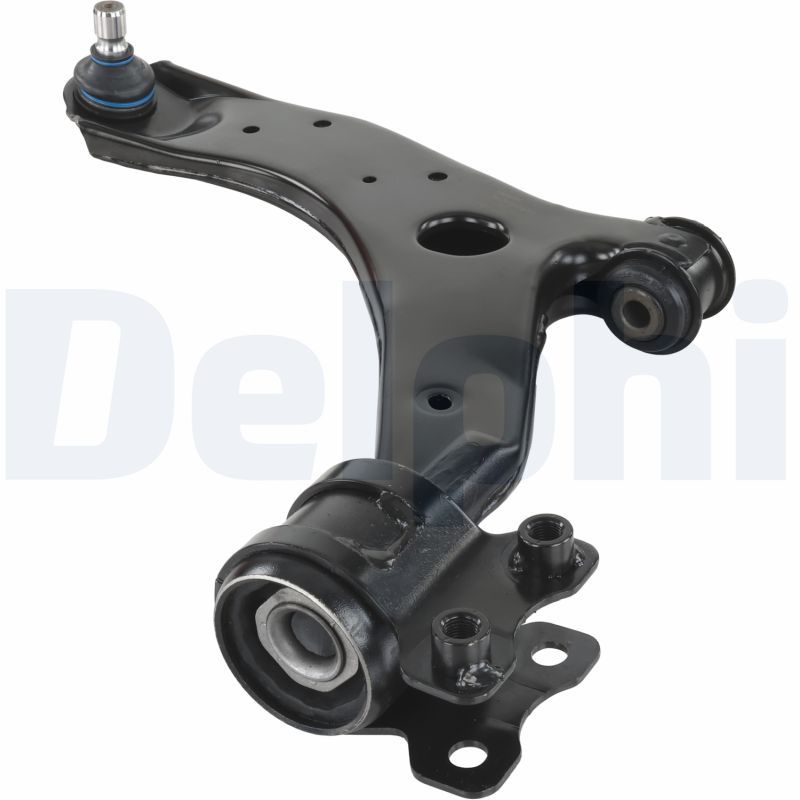

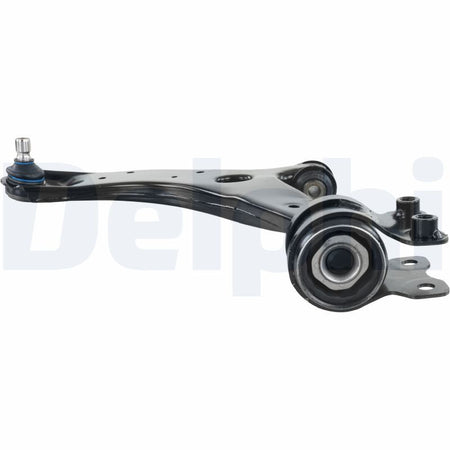

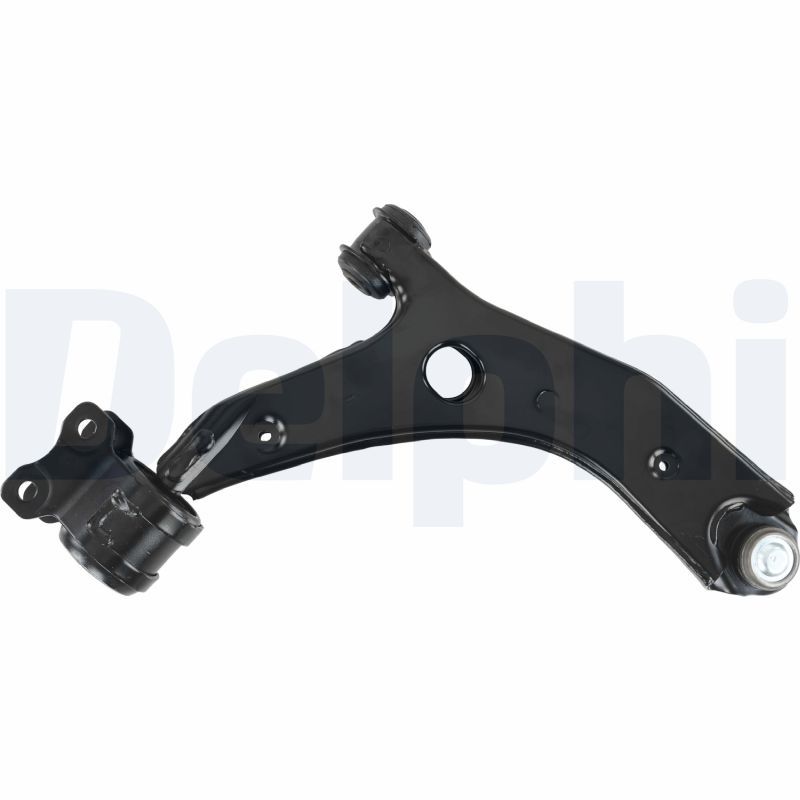

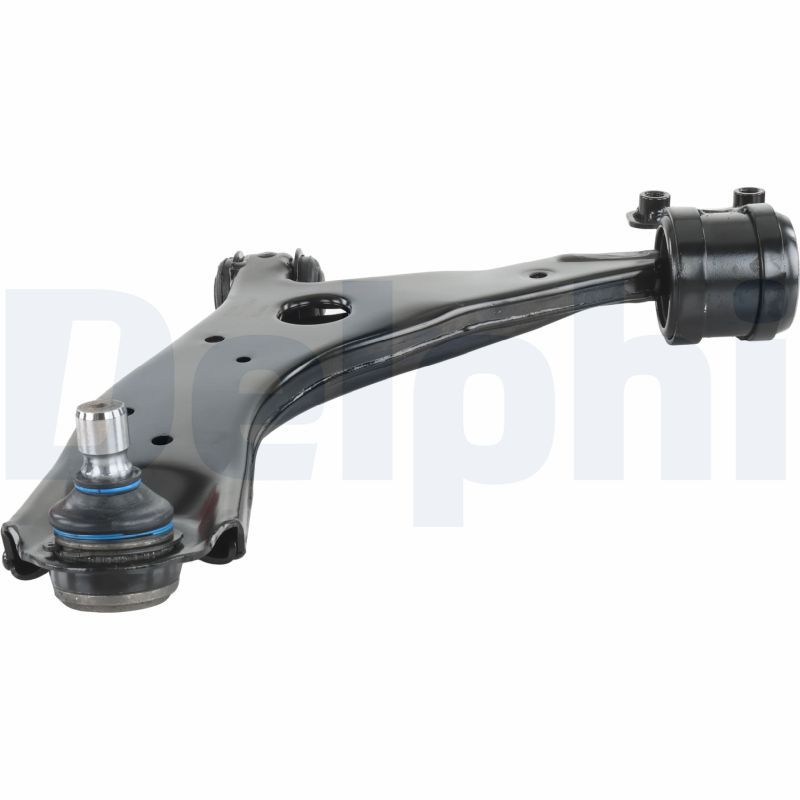

Delphi TC1449 Control/Trailing Arm, wheel suspension

SKU: TC1449
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£79.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
2.0 MZR-CD (BK12) 1998 CCM 143 HP 12/2006 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009
2.3 MPS Turbo (BK14) 2261 CCM 260 HP 12/2006 - 06/2009
2.0 MZR-CD (BK14) 1998 CCM 143 HP 07/2006 - 06/2009
1.6 MZ-CD 1560 CCM 90 HP 06/2006 - 12/2009
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 110 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 143 HP 02/2005 - 05/2010
5 (CW)
Description Cylinder Capacity Horse Power Year
1.6 CD 1560 CCM 116 HP From 07/2010
2.0 (CWEFW) 1999 CCM 150 HP From 09/2010
2.0 (CWEFW) 1999 CCM 144 HP From 06/2010
1.8 MZR 1798 CCM 116 HP From 09/2010
2.0 (CWFFW) 1998 CCM 151 HP From 08/2014
2.0 1999 CCM 147 HP From 01/2011

The Delphi TC1449 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records left and lower fitting position, sheet Steel construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Left
Fitting Position : Lower
Material : Sheet Steel
Paired article number : TC1450
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 460
Width [mm] : 380
Height [mm] : 85
  • Vendor DELPHI
  • SKU TC1449
  • Barcode 5012759385456
  • APEC : AST2258
  • BLUE PRINT : ADM58667
  • BORG & BECK : BCA6275
  • CORTECO : 49398485
  • CORTECO : 49398510
  • FEBI BILSTEIN : 29357
  • FEBI BILSTEIN : 42433
  • FIRST LINE : FCA6275
  • KYB : KSC4144
  • LEMFÖRDER : 35906 01
  • MEYLE : 35-16 050 0061/HD
  • MONROE : L50532
  • MONROE : L50815
  • NAPA : NST2258
  • Schaeffler FAG : 821 0721 10
  • SKF : VKDS 824040 B
  • TRW : JTC7563
