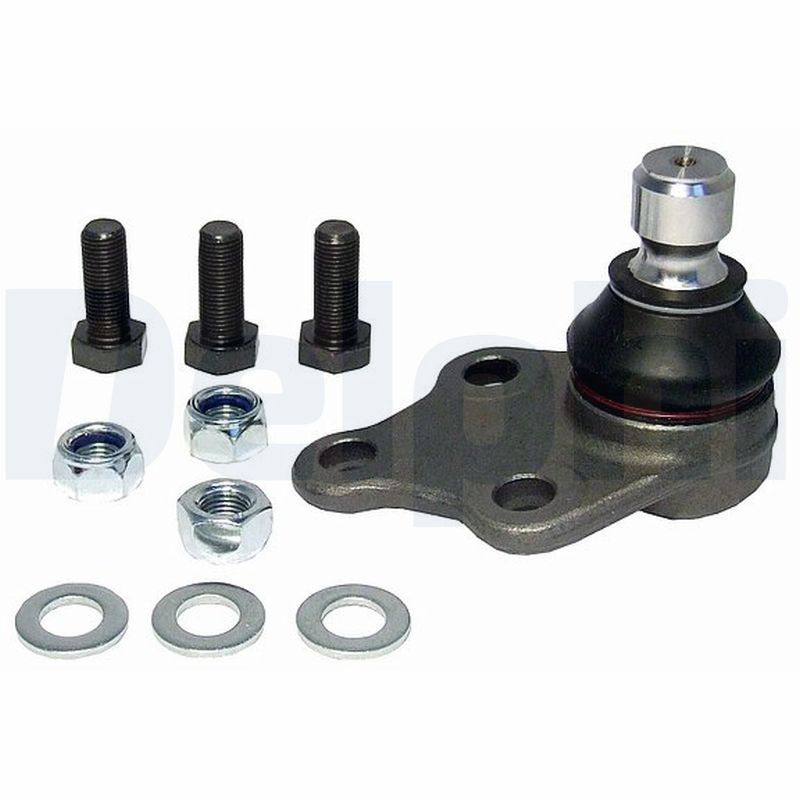

Delphi TC1564 Ball Joint - 1
Delphi TC1564 Ball Joint - 1
DELPHI

Delphi TC1564 Ball Joint

SKU: TC1564
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£18.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
VIANO (W639)
Description Cylinder Capacity Horse Power Year
CDI 2.2 (639.811, 639.813, 639.815, 639.711, 639.713) 2143 CCM 136 HP From 07/2010
CDI 2.2 (639.811, 639.813, 639.815, 639.711, 639.713) 2143 CCM 163 HP From 07/2010
CDI 3.0 (639.811, 639.813, 639.815) 2987 CCM 224 HP From 07/2010
CDI 2.2 4-matic (639.811, 639.813, 639.815, 639.711,... 2143 CCM 136 HP From 07/2010
CDI 2.2 4-matic (639.811, 639.813, 639.815, 639.711,... 2143 CCM 163 HP From 07/2010
3.2 (639.711, 639.811, 639.813) 3199 CCM 190 HP From 09/2003
3.2 (639.713, 639.813, 639.815) 3199 CCM 218 HP From 09/2003
CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) 2148 CCM 150 HP From 09/2003
CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) 2148 CCM 109 HP From 09/2003
3.7 (639.815) 3724 CCM 231 HP From 06/2004
CDI 2.2 4-matic (639.713) 2148 CCM 109 HP From 07/2005
CDI 2.2 4-matic (639.711, 639.713, 639.811, 639.813,... 2148 CCM 150 HP From 07/2005
CDI 3.0 (639.811, 639.813, 639.815) 2987 CCM 204 HP From 02/2006
CDI 2.2 (639.711, 639.713, 639.811, 639.813, 639.815) 2148 CCM 116 HP From 08/2005
3.5 (639.811, 639.813, 639.815) 3498 CCM 258 HP From 09/2007
VITO / MIXTO Van (W639)
Description Cylinder Capacity Horse Power Year
110 CDI (639.601, 639.603, 639.605) 2143 CCM 95 HP 09/2010 - 08/2014
113 CDI (639.601, 639.603, 639.605) 2143 CCM 136 HP 09/2010 - 08/2014
116 CDI (639.601, 639.603, 639.605) 2143 CCM 163 HP 09/2010 - 08/2014
122 CDI (639.601, 639.603, 639.605) 2987 CCM 224 HP 09/2010 - 08/2014
115 CDI (639.601, 639.603, 639.605) 2148 CCM 150 HP 09/2003 - 08/2014
111 CDI (639.601, 639.603, 639.605) 2148 CCM 109 HP 09/2003 - 08/2007
119 (639.601, 639.603, 639.605) 3199 CCM 190 HP 09/2003 - 07/2008
122 (639.601, 639.603, 639.605) 3199 CCM 218 HP 09/2003 - 09/2004
109 CDI (639.601, 639.603, 639.605) 2148 CCM 88 HP 09/2003 - 07/2006
111 CDI (639.601, 639.603) 2148 CCM 116 HP 09/2007 - 08/2014
120 CDI (639.601, 639.603, 639.605) 2987 CCM 204 HP 03/2006 - 08/2014
111 CDI 4x4 (639.601, 639.603, 639.605) 2148 CCM 109 HP 09/2007 - 08/2014
115 CDI 4x4 (639.601, 639.603, 639.605) 2148 CCM 150 HP 07/2006 - 08/2014
126 (639.601, 639.603, 639.605) 3498 CCM 258 HP 09/2007 - 08/2014
109 CDI (639.601, 639.603, 639.605) 2148 CCM 95 HP 08/2006 - 08/2014
VITO Bus (W639)
Description Cylinder Capacity Horse Power Year
110 CDI (639.701, 639.703, 639.705) 2143 CCM 95 HP 09/2010 - 08/2014
113 CDI (639.701, 639.703, 639.705) 2143 CCM 136 HP From 09/2010
116 CDI (639.701, 639.703, 639.705) 2143 CCM 163 HP From 09/2010
122 CDI (639.701, 639.703, 639.705) 2987 CCM 224 HP From 09/2010
116 CDI 4x4 (639.701, 639.703, 639.705) 2143 CCM 163 HP 09/2010 - 08/2014
113 CDI 4x4 (639.701, 639.703, 639.705) 2143 CCM 136 HP 09/2010 - 08/2014
119 (639.701, 639.703, 639.705) 3199 CCM 190 HP From 09/2003
111 CDI (639.701, 639.703, 639.705) 2148 CCM 109 HP From 09/2003
115 CDI (639.701, 639.703, 639.705) 2148 CCM 150 HP From 09/2003
122 (639.701, 639.703, 639.705) 3199 CCM 218 HP From 09/2003
109 CDI (639.701, 639.703, 639.705) 2148 CCM 88 HP From 09/2003
123 (639.701) 3724 CCM 231 HP 06/2004 - 07/2008
109 CDI (639.701, 639.703, 639.705) 2148 CCM 95 HP From 09/2006
109 CDI 4x4 (639.701) 2148 CCM 95 HP 09/2007 - 08/2014
126 (639.701, 639.703, 639.705) 3498 CCM 258 HP From 09/2007

The Delphi TC1564 Ball Joint is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records Pinch Bolt 22mm thread size, 112 mm length, 84 mm width, and 82 mm height. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Ball Joint
Thread Size : Pinch Bolt 22mm
Length [mm] : 112
Width [mm] : 84
Height [mm] : 82
  • Vendor DELPHI
  • SKU TC1564
  • Barcode 5012759380260
  • MERCEDES-BENZ : A639 333 0227 639 333 0227
  • APEC : AST0171
  • BORG & BECK : BBJ5496
  • BOSCH : 0 986 140 838
  • CORTECO : 49398728
  • FEBI BILSTEIN : 24578
  • FIRST LINE : FBJ5496
  • LEMFÖRDER : 27666 02
  • MEYLE : 016 010 0013/HD
  • MEYLE : 016 010 0034
  • MONROE : L23535
  • NAPA : NST0171
  • Schaeffler FAG : 825 0250 10
  • SKF : VKDS 318011
  • TRW : JBJ756
