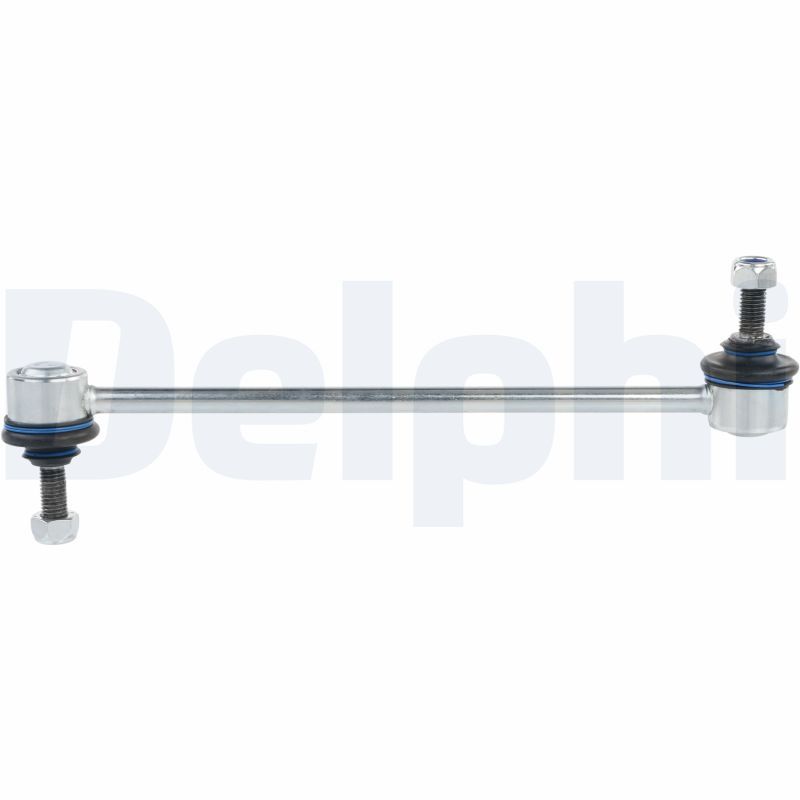

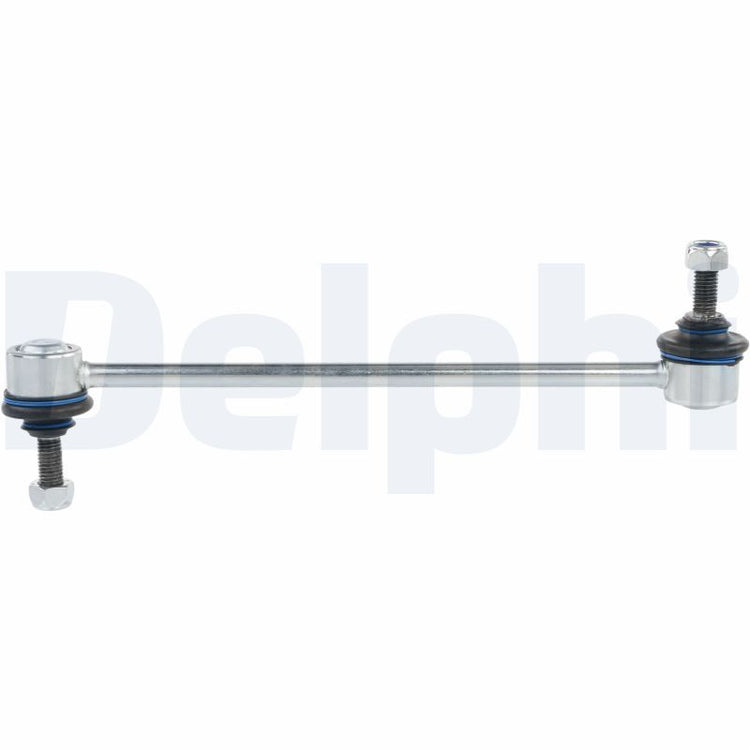

Delphi TC1575 Link/Coupling Rod, stabiliser bar - 1

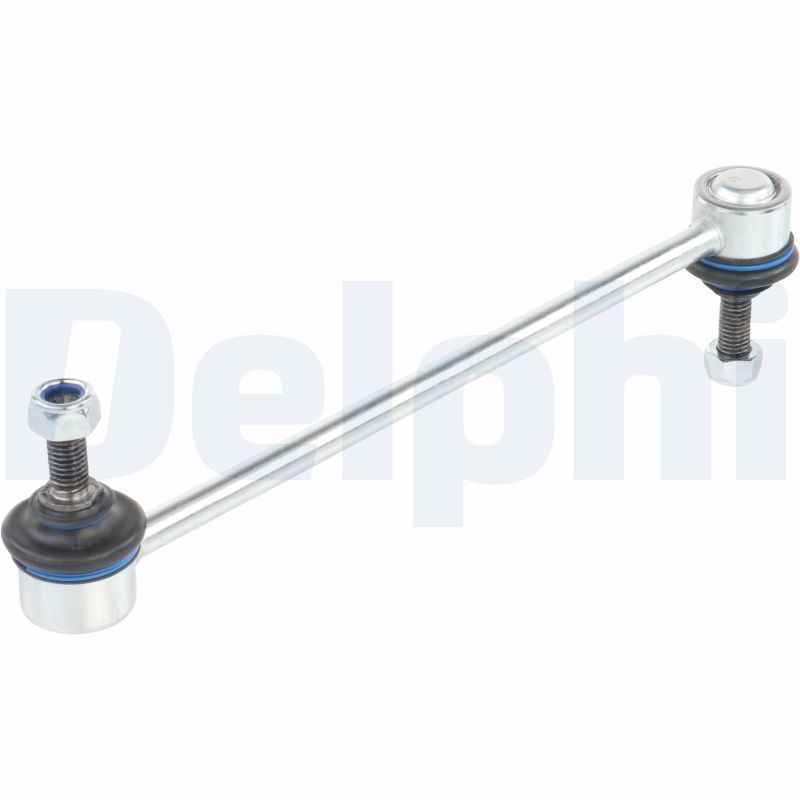

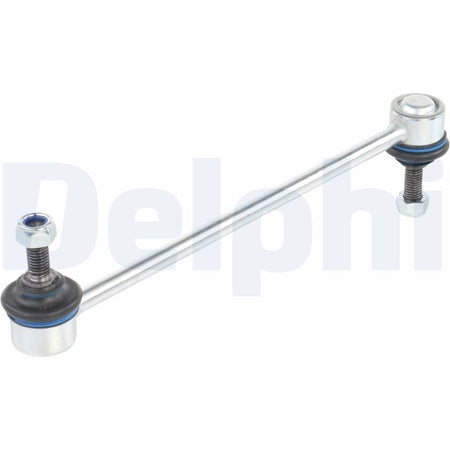

Delphi TC1575 Link/Coupling Rod, stabiliser bar - 2

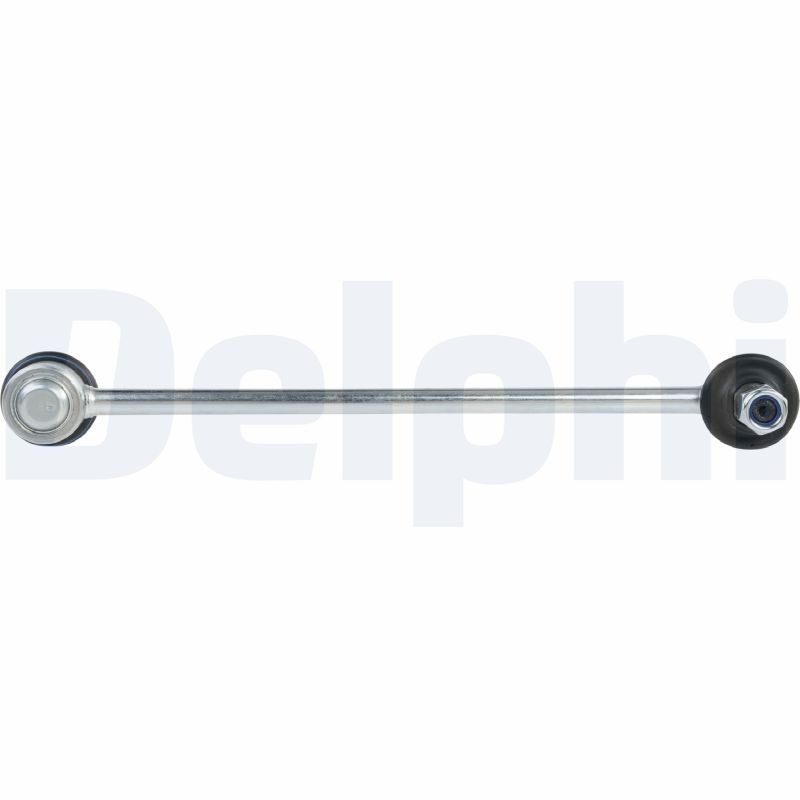

Delphi TC1575 Link/Coupling Rod, stabiliser bar - 3

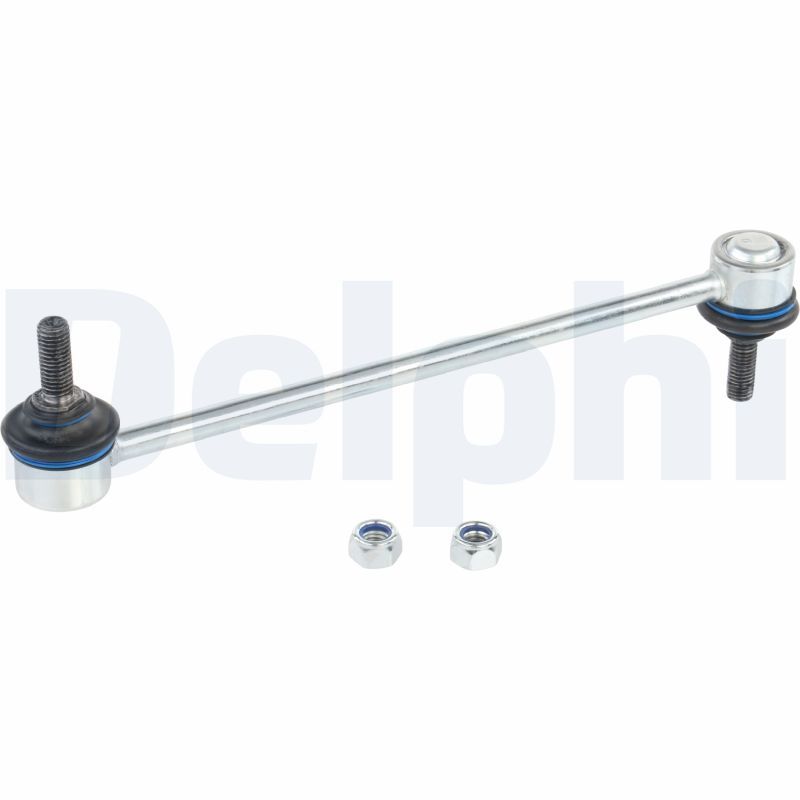

Delphi TC1575 Link/Coupling Rod, stabiliser bar - 4

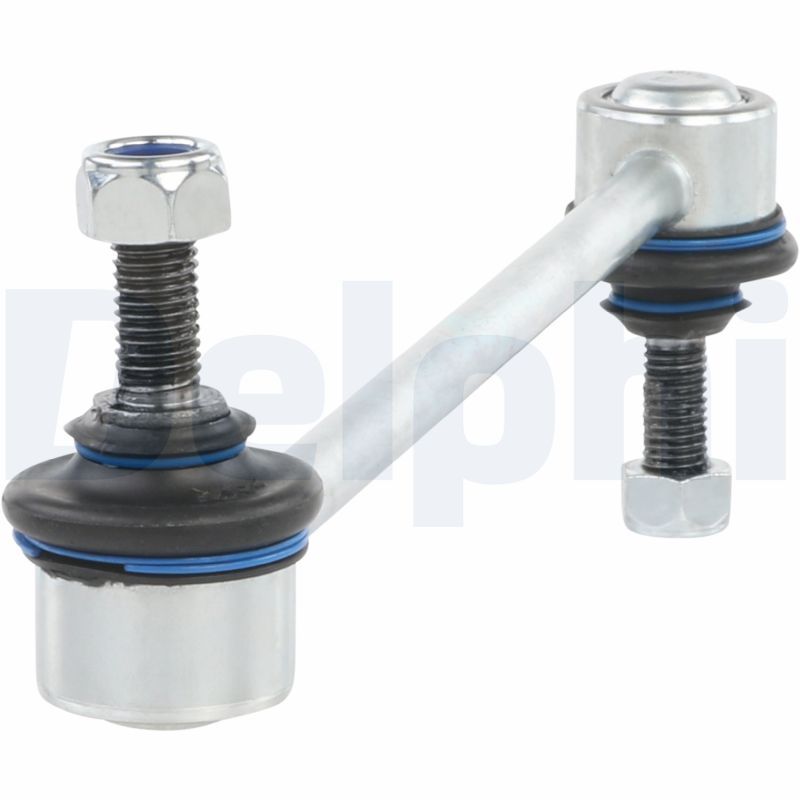

Delphi TC1575 Link/Coupling Rod, stabiliser bar - 5

DELPHI

Delphi TC1575 Anti-Roll Bar Link

SKU: TC1575

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£15.31 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER

GRAND VOYAGER V (RT)

Description	Cylinder Capacity	Horse Power	Year
3.3	3301 CCM	170 HP	From 01/2008
3.8	3778 CCM	193 HP	From 10/2007
2.8 CRD	2777 CCM	163 HP	From 10/2007
3.6	3604 CCM	283 HP	From 02/2011
2.8 CRD	2777 CCM	181 HP	From 09/2012

TACUMA Mk II (GS_, NS_)

Description	Cylinder Capacity	Horse Power	Year
2.4 i	2429 CCM	151 HP	01/1995 - 03/2001
3.3 i	3301 CCM	158 HP	01/1995 - 03/2001
3.8 i AWD	3778 CCM	166 HP	01/1995 - 03/2001
2.5 TD	2499 CCM	116 HP	01/1995 - 03/2001
2.0 i	1995 CCM	133 HP	01/1995 - 03/2001
3.8 i AWD	3778 CCM	178 HP	01/1995 - 03/2001
3.0	2972 CCM	152 HP	01/1995 - 03/2001
2.4 AWD	2429 CCM	151 HP	02/1997 - 03/2001
2.5 TDiC AWD	2499 CCM	116 HP	10/1995 - 03/2001

VOYAGER III VAN (GS_)

Description	Cylinder Capacity	Horse Power	Year
2.4 (GSHY52)	2429 CCM	151 HP	01/1995 - 03/2001
3.3 (GSHY52)	3301 CCM	158 HP	01/1995 - 03/2001
3.8 AWD (GSHC52)	3778 CCM	166 HP	10/1995 - 09/1997
3.8 AWD (GSHC52)	3778 CCM	178 HP	10/1997 - 03/2001
2.5 TD (GSHY52, GSHZ52)	2499 CCM	116 HP	01/1995 - 03/2001

VOYAGER Mk III (RG, RS)

Description	Cylinder Capacity	Horse Power	Year
2.4	2429 CCM	147 HP	02/2000 - 12/2008
3.3	3301 CCM	174 HP	02/2000 - 12/2008
2.5 CRD	2499 CCM	141 HP	02/2000 - 12/2008
3.8	3778 CCM	218 HP	02/2000 - 12/2008
3.8 AWD	3778 CCM	218 HP	02/2000 - 12/2008
3.3 AWD	3301 CCM	174 HP	02/2000 - 12/2008
2.8 CRD	2777 CCM	150 HP	06/2004 - 12/2008
2.5 CRD	2499 CCM	120 HP	08/2005 - 12/2008
2.4	2429 CCM	151 HP	04/2003 - 12/2007

VOYAGER IV VAN (S_)

Description	Cylinder Capacity	Horse Power	Year
3.3 (SYM53, SYH53)	3301 CCM	174 HP	10/2000 - 06/2007

VOYAGER / GRAND VOYAGER IV (RG)

Description	Cylinder Capacity	Horse Power	Year
2.5 CRD	2499 CCM	143 HP	01/2001 - 02/2008
3.3	3301 CCM	174 HP	02/2000 - 08/2007

ROUTAN

Description	Cylinder Capacity	Horse Power	Year
3.6	3605 CCM	283 HP	01/2011 - 12/2013

The Delphi TC1575 Anti-Roll Bar Link is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records steel construction, M12x1.75 thread size 1, M12x1.75 thread size 2, and front axle fitting position. It is listed in the link/Coupling Rod, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Link/Coupling Rod, stabiliser bar

Material : Steel

Thread Size 1 : M12x1.75

Thread Size 2 : M12x1.75

Rod/Strut : Coupling Rod

Width [mm] : 40

Height [mm] : 78

Length [mm] : 310

Fitting Position : Front Axle

APEC : AST4012
BLUE PRINT : ADA108517
BORG & BECK : BDL7119
CORTECO : 49399053
FEBI BILSTEIN : 41031
FIRST LINE : FDL7119
LEMFÖRDER : 28727 01
MEYLE : 44-16 060 0000/HD
MONROE : L80600
NAPA : NST4012
Schaeffler FAG : 818 0364 10
SKF : VKDS 348900
TRW : JTS631

Delphi TC1575 Anti-Roll Bar Link
