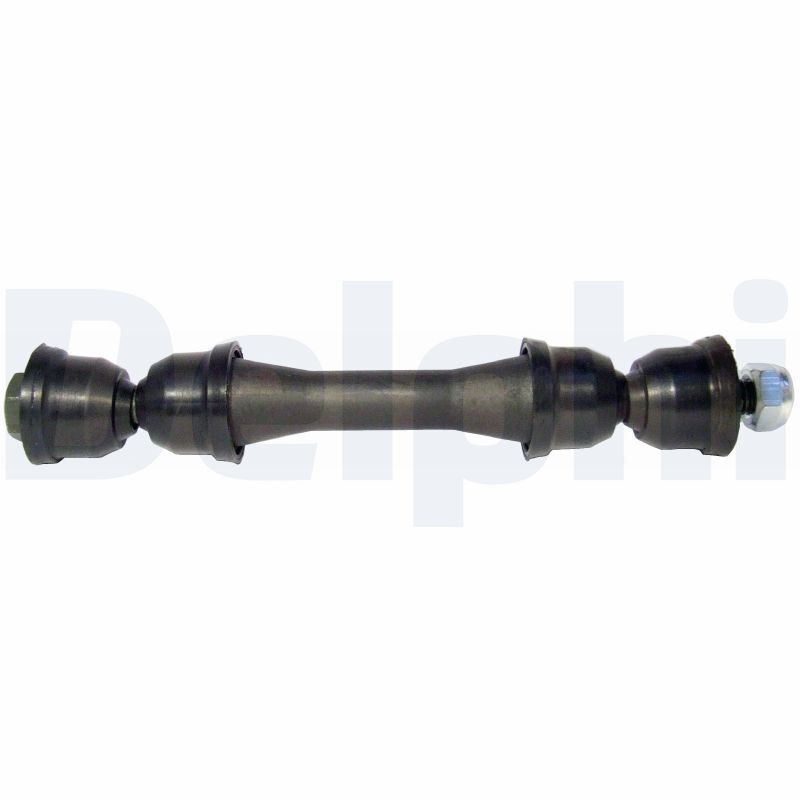

Delphi TC1742 Link/Coupling Rod, stabiliser bar - 1
Delphi TC1742 Link/Coupling Rod, stabiliser bar video
Delphi TC1742 Link/Coupling Rod, stabiliser bar - 1
Delphi TC1742 Link/Coupling Rod, stabiliser bar video
DELPHI

Delphi TC1742 Anti-Roll Bar Link

SKU: TC1742
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£13.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
2.3 BiFuel 2295 CCM 143 HP 03/2001 - 03/2006
TRANSIT TOURNEO Bus (FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 125 HP 03/2002 - 03/2006
2.0 1998 CCM 75 HP 06/2000 - 08/2003

The Delphi TC1742 Anti-Roll Bar Link is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M10x1.5 thread size 1, Coupling Rod rod/strut, 32 mm width, and 32 mm height. It is listed in the link/Coupling Rod, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Link/Coupling Rod, stabiliser bar
Thread Size 1 : M10x1.5
Rod/Strut : Coupling Rod
Width [mm] : 32
Height [mm] : 32
  • Vendor DELPHI
  • SKU TC1742
  • Barcode 5012759398968
  • FORD : 3736028 F65A5K483CC
  • APEC : AST4038
  • BORG & BECK : BDL6632
  • CORTECO : 49397843
  • FEBI BILSTEIN : 21749
  • FEBI BILSTEIN : 21750
  • FIRST LINE : FDL6632
  • LEMFÖRDER : 37074 01
  • MONROE : L16614
  • NAPA : NST4038
  • Schaeffler FAG : 818 0304 10
  • SKF : VKDS 344010
