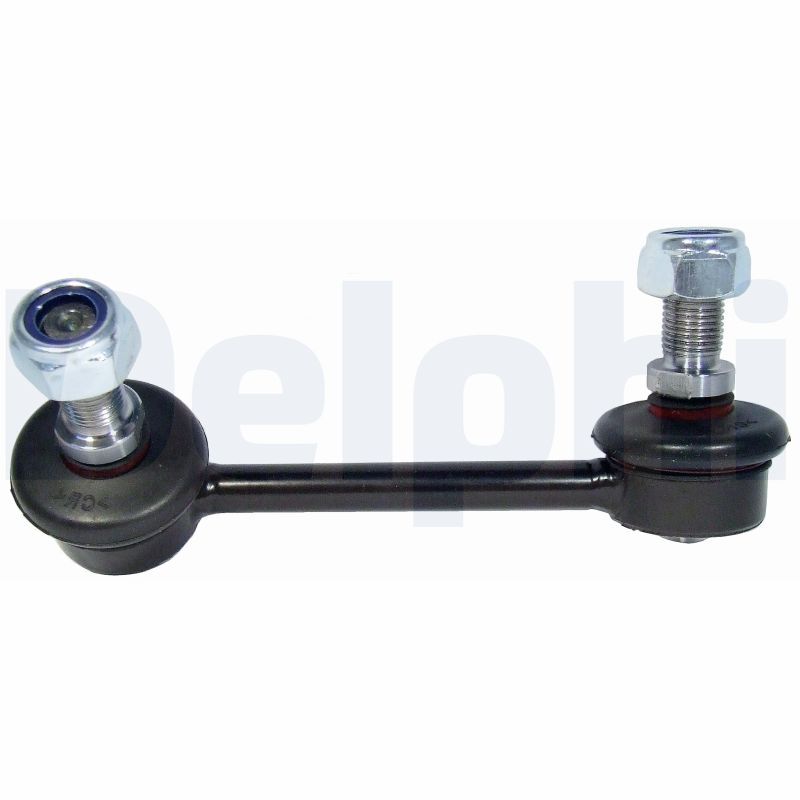

Delphi TC1775 Link/Coupling Rod, stabiliser bar - 1
Delphi TC1775 Link/Coupling Rod, stabiliser bar video
Delphi TC1775 Link/Coupling Rod, stabiliser bar - 1
Delphi TC1775 Link/Coupling Rod, stabiliser bar video
DELPHI

Delphi TC1775 Anti-Roll Bar Link

SKU: TC1775
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£17.90 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MITSUBISHI
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.5 (V65W, V75W) 3497 CCM 203 HP 04/2000 - 01/2007
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
2.5 TDi (V64W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
3.0 (V73W) 2972 CCM 170 HP 10/2001 - 12/2006
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.0 4WD (V83W, V93W) 2972 CCM 178 HP From 02/2007
3.8 V6 (V87W, V97W) 3828 CCM 250 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.8 V6 (V87W) 3828 CCM 248 HP From 10/2006
3.0 4WD 2972 CCM 174 HP From 08/2014
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

The Delphi TC1775 Anti-Roll Bar Link is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records steel construction, M12x1.25 thread size 1, M12x1.25 thread size 2, and rear axle left fitting position. It is listed in the link/Coupling Rod, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Link/Coupling Rod, stabiliser bar
Material : Steel
Thread Size 1 : M12x1.25
Thread Size 2 : M12x1.25
Rod/Strut : Coupling Rod
Paired article number : TC1776
Width [mm] : 56
Height [mm] : 56
Length [mm] : 115
Fitting Position : Rear Axle Left
  • Vendor DELPHI
  • SKU TC1775
  • Barcode 5012759399828
  • MITSUBISHI : MR418052 4056A111
  • APEC : AST4351
  • BLUE PRINT : ADC48513
  • BORG & BECK : BDL6698
  • BORG & BECK : BDL7472
  • BOSCH : 0 986 141 379
  • CORTECO : 49396517
  • FEBI BILSTEIN : 31559
  • FIRST LINE : FDL6698
  • FIRST LINE : FDL7472
  • KYB : KSLR1012
  • MONROE : L42620
  • NAPA : NST4351
  • SKF : VKDS 945500
  • TRW : JTS7587
