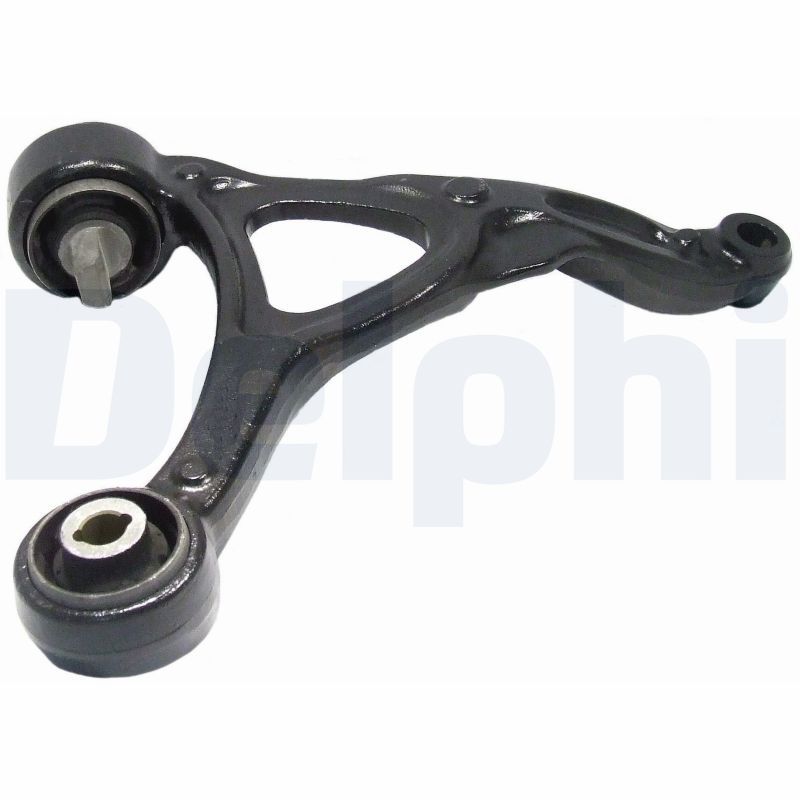

Delphi TC1986 Control/Trailing Arm, wheel suspension - 1
Delphi TC1986 Control/Trailing Arm, wheel suspension video
Delphi TC1986 Control/Trailing Arm, wheel suspension - 1
Delphi TC1986 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC1986 Control/Trailing Arm, wheel suspension

SKU: TC1986
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£132.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
XC90 I (275)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 200 HP 01/2011 - 12/2014
3.2 AWD 3192 CCM 243 HP 04/2010 - 09/2014
2.5 T AWD 2521 CCM 209 HP 10/2002 - 09/2014
T6 AWD 2922 CCM 272 HP 10/2002 - 12/2006
D5 AWD 2401 CCM 163 HP 10/2002 - 12/2006
V8 AWD 4414 CCM 316 HP 01/2005 - 12/2010
D5 AWD 2401 CCM 185 HP 04/2005 - 12/2012
3.2 AWD 3192 CCM 238 HP 03/2006 - 12/2010
D3 / D5 2400 CCM 163 HP 04/2009 - 12/2014
3.2 3192 CCM 238 HP 09/2011 - 09/2014
V8 AWD 4414 CCM 320 HP 09/2004 - 12/2005
2.5 T AWD 2497 CCM 209 HP 10/2012 - 09/2014
D5 AWD 2400 CCM 163 HP 10/2007 - 12/2010

The Delphi TC1986 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records front axle right and lower fitting position, cast Steel construction, Control Arm control/trailing arm type, and without ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Front Axle Right
Fitting Position : Lower
Material : Cast Steel
Paired article number : TC1985
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : without ball joint
Length [mm] : 350
Width [mm] : 330
Height [mm] : 75
  • Vendor DELPHI
  • SKU TC1986
  • Barcode 5012759433775
  • CHRYSLER : 31304046
  • VOLVO : 30639781 31304046 31201005 30645846 30681615
  • APEC : AST2200
  • BORG & BECK : BCA6411
  • CORTECO : 49399984
  • FEBI BILSTEIN : 31286
  • FIRST LINE : FCA6411
  • LEMFÖRDER : 42587 01
  • MEYLE : 516 050 0026/HD
  • MONROE : L27533
  • NAPA : NST2200
  • Schaeffler FAG : 821 0667 10
  • SKF : VKDS 326094
  • TRW : JTC1675
