Home / Car Parts / Steering & Suspension / Suspension Parts / Anti-roll bar links

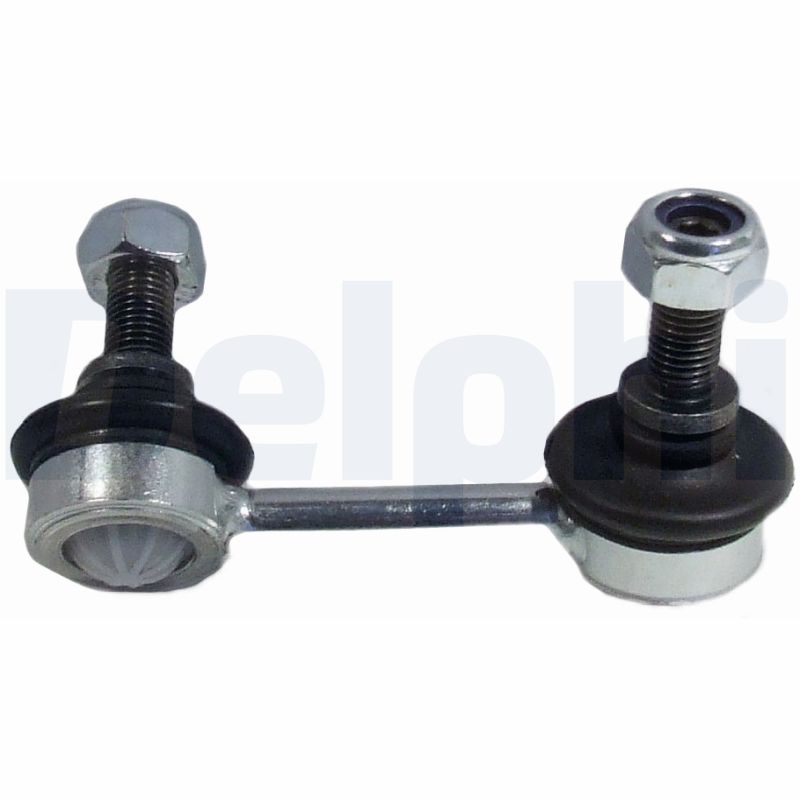

Delphi TC2276 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2276 Link/Coupling Rod, stabiliser bar video
Delphi TC2276 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2276 Link/Coupling Rod, stabiliser bar video
DELPHI

Delphi TC2276 Anti-Roll Bar Link

SKU: TC2276
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£18.47 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
CR-V III (RE_)
Description Cylinder Capacity Horse Power Year
2.4 i-VTEC 4WD (RE7) 2354 CCM 166 HP 09/2009 - 12/2012
2.4 4WD (RE4) 2354 CCM 168 HP 09/2006 - 06/2012
2.0 i-VTEC 4WD (RE5, RE2) 1997 CCM 150 HP 10/2006 - 06/2012
2.2 i-CTDi 4WD (RE6) 2204 CCM 140 HP 01/2007 - 02/2010
2.4 (RE3) 2354 CCM 170 HP 04/2007 - 12/2012
2.4 i-VTEC 4WD (RE4) 2354 CCM 160 HP 10/2006 - 10/2012
2.4 (RE3) 2354 CCM 168 HP 06/2006 - 06/2012
2.2 i-DTEC 4WD (RE6) 2199 CCM 150 HP 01/2007 - 06/2012
2.4 i-Vtec 4WD (RE4) 2354 CCM 170 HP 04/2007 - 12/2012
2.0 i-VTEC (RE5, RE1) 1997 CCM 150 HP 01/2007 - 06/2012
CR-V IV (RM_)
Description Cylinder Capacity Horse Power Year
2.0 (RM1) 1997 CCM 150 HP 01/2012 - 12/2018
2.4 AWD (RM4) 2354 CCM 190 HP 01/2012 - 12/2014
1.6 i-DTEC (RE6) 1597 CCM 120 HP 10/2013 - 08/2018
2.0 iVtec (RE5, RM1) 1997 CCM 155 HP 10/2012 - 12/2018
2.0 AWD (RE5, RM2) 1997 CCM 155 HP 10/2012 - 12/2018
1.6 i-DTEC 4WD (RE6) 1597 CCM 160 HP 02/2015 - 08/2018
2.2 i-DTEC 4WD (RE6) 2199 CCM 150 HP 11/2012 - 05/2015

The Delphi TC2276 Anti-Roll Bar Link is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records steel construction, M10x1.25 thread size 1, M10x1.25 thread size 2, and rear axle left fitting position. It is listed in the link/Coupling Rod, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Link/Coupling Rod, stabiliser bar
Material : Steel
Thread Size 1 : M10x1.25
Thread Size 2 : M10x1.25
Rod/Strut : Coupling Rod
Paired article number : TC2277
Width [mm] : 54
Height [mm] : 54
Length [mm] : 85
Fitting Position : Rear Axle Left
  • Vendor DELPHI
  • SKU TC2276
  • Barcode 5012759456682
  • HONDA : 52321-SWA-A01
  • APEC : AST4391
  • BLUE PRINT : ADH28562
  • BORG & BECK : BDL7073
  • CORTECO : 49401067
  • FEBI BILSTEIN : 29527
  • FIRST LINE : FDL7073
  • KYB : KSLR1005
  • LEMFÖRDER : 35901 01
  • MEYLE : 31-16 060 0042
  • MONROE : L40634
  • NAPA : NST4391
  • Schaeffler FAG : 818 0442 10
  • SKF : VKDS 943007
  • TRW : JTS7641
  • User manual
