Delphi TC2405 Ball Joint - 1
Delphi TC2405 Ball Joint - 1
DELPHI

Delphi TC2405 Ball Joint

SKU: TC2405
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£14.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
ALMERA TINO (V10)
Description Cylinder Capacity Horse Power Year
1.8 1769 CCM 114 HP 08/2000 - 02/2006
2.0 1998 CCM 136 HP 08/2000 - 01/2003
2.2 dCi 2184 CCM 115 HP 08/2000 - 02/2006
2.2 dCi 2184 CCM 112 HP 09/2003 - 02/2006
2.2 dCi 2184 CCM 136 HP 09/2003 - 02/2006
1.8 1769 CCM 116 HP 12/2002 - 02/2006
MAXIMA / MAXIMA QX V (A33)
Description Cylinder Capacity Horse Power Year
2.0 V6 24V 1995 CCM 140 HP 03/2000 - 11/2003
2.5 V6 24V 2496 CCM 209 HP 03/2000 - 11/2003
3.0 V6 24V 2988 CCM 200 HP 03/2000 - 11/2003
PRIMERA (P12)
Description Cylinder Capacity Horse Power Year
1.8 1769 CCM 115 HP 03/2002 - 10/2008
2.0 1998 CCM 140 HP 03/2002 - 10/2008
2.2 Di 2184 CCM 126 HP 03/2002 - 05/2007
1.6 1597 CCM 106 HP 03/2002 - 08/2008
1.9 dCi 1870 CCM 120 HP 04/2003 - 10/2007
2.2 dCi 2184 CCM 139 HP 04/2003 - 04/2006
1.6 1597 CCM 109 HP 01/2002 - 04/2006
1.9 dCi 1870 CCM 116 HP 08/2002 - 10/2007
PRIMERA Hatchback (P12)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 106 HP 07/2002 - 08/2008
1.8 1769 CCM 115 HP 07/2002 - 10/2008
2.0 1998 CCM 140 HP 07/2002 - 10/2008
2.2 Di 2184 CCM 126 HP 07/2002 - 05/2007
1.9 dCi 1870 CCM 120 HP 04/2003 - 10/2007
2.2 dCi 2184 CCM 139 HP From 04/2003
1.6 1597 CCM 109 HP 07/2002 - 04/2006
1.9 dCi 1870 CCM 116 HP 08/2002 - 10/2007
PRIMERA Estate (WP12)
Description Cylinder Capacity Horse Power Year
1.8 1769 CCM 115 HP 03/2002 - 05/2007
2.0 1998 CCM 140 HP From 03/2002
2.2 Di 2184 CCM 126 HP 03/2002 - 04/2003
1.9 dCi 1870 CCM 120 HP From 04/2003
2.2 dCi 2184 CCM 139 HP From 04/2003
1.6 Visia 1597 CCM 109 HP 01/2002 - 04/2006
1.9 dCi 1870 CCM 116 HP 08/2002 - 10/2007

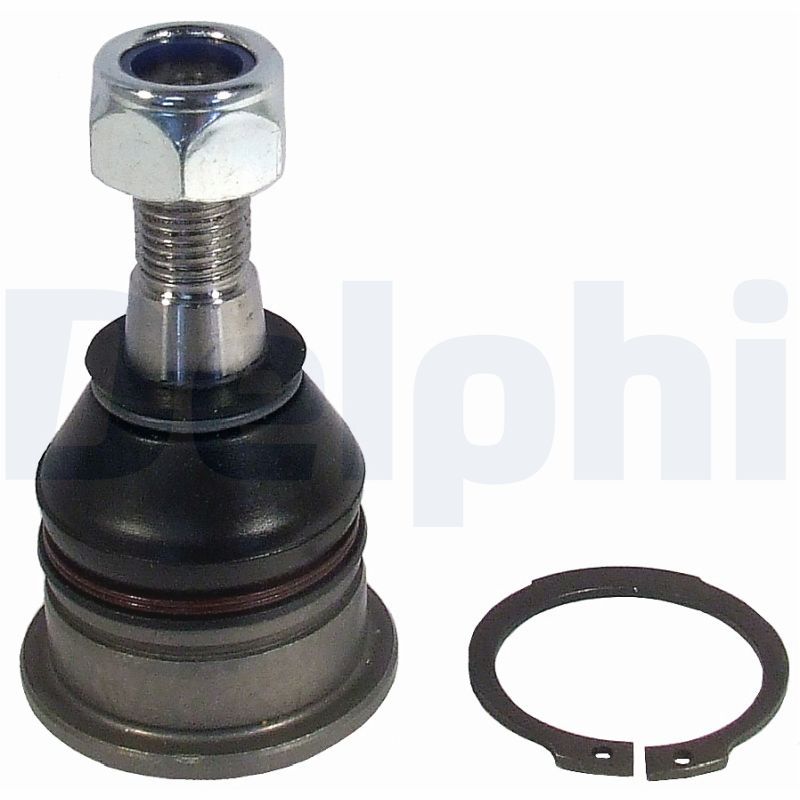

The Delphi TC2405 Ball Joint is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, 49 mm length, 49 mm width, and front axle and lower fitting position. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Ball Joint
Thread Size : M14x1.5
Length [mm] : 49
Width [mm] : 49
Height [mm] : 86
Fitting Position : Front Axle
Fitting Position : Lower
  • Vendor DELPHI
  • SKU TC2405
  • Barcode 5012759471418
  • NISSAN : 40160-2Y000
  • APEC : AST0045
  • BLUE PRINT : ADN18695
  • BORG & BECK : BBJ5494
  • CORTECO : 49400398
  • FEBI BILSTEIN : 42674
  • FIRST LINE : FBJ5494
  • LEMFÖRDER : 34510 01
  • LEMFÖRDER : 34510 02
  • LEMFÖRDER : 38447 01
  • MEYLE : 36-16 010 0045
  • MONROE : L14529
  • NAPA : NST0045
  • Schaeffler FAG : 825 0002 10
  • SKF : VKDS 812006
  • TRW : JBJ739
