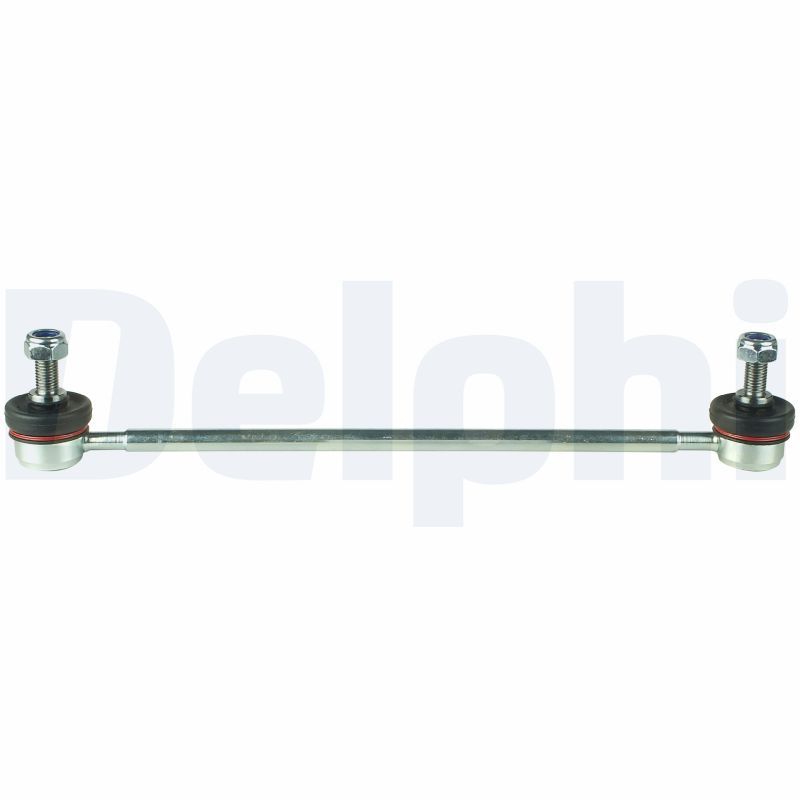

Delphi TC2612 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2612 Link/Coupling Rod, stabiliser bar video
Delphi TC2612 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2612 Link/Coupling Rod, stabiliser bar video
DELPHI

Delphi TC2612 Anti-Roll Bar Link

SKU: TC2612
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£14.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
GRAND VITARA II (JT, TE, TD)
Description Cylinder Capacity Horse Power Year
1.6 All-wheel Drive (JB416) 1586 CCM 106 HP 04/2005 - 02/2015
2.0 All-wheel Drive (TD54V, JB420) 1995 CCM 140 HP 10/2005 - 02/2015
1.9 DDiS All-wheel Drive (JT419, TD44, JB419WD, JB419XD,... 1870 CCM 129 HP 10/2005 - 02/2015
1.6 All-wheel Drive (TA74, JB416) 1586 CCM 99 HP 09/2005 - 02/2015
3.2 All-wheel Drive (TDB4, JT632, JB632) 3195 CCM 233 HP 01/2009 - 02/2015
2.4 All-wheel Drive (JB424) 2393 CCM 169 HP From 01/2009
2.4 All-wheel Drive (JT424, JB424, TDA4) 2393 CCM 166 HP From 01/2009
3.2 All-wheel Drive (JB632, TDB4) 3195 CCM 224 HP 06/2008 - 02/2015
1.9 DDiS (JB419WD, JB419XD) 1870 CCM 129 HP 03/2006 - 08/2008

The Delphi TC2612 Anti-Roll Bar Link is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records steel construction, M10x1.25 thread size 1, M10x1.25 thread size 2, and front axle fitting position. It is listed in the link/Coupling Rod, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Link/Coupling Rod, stabiliser bar
Material : Steel
Thread Size 1 : M10x1.25
Thread Size 2 : M10x1.25
Rod/Strut : Coupling Rod
Width [mm] : 33
Height [mm] : 57
Length [mm] : 300
Fitting Position : Front Axle
  • Vendor DELPHI
  • SKU TC2612
  • Barcode 5012759496343
  • SUZUKI : 42420-65J00
  • APEC : AST4355
  • BLUE PRINT : ADK88511
  • BORG & BECK : BDL7055
  • BOSCH : 0 986 141 436
  • CORTECO : 49396228
  • FEBI BILSTEIN : 30186
  • FIRST LINE : FDL7055
  • KYB : KSLF1137
  • MEYLE : 33-16 060 0005/HD
  • MEYLE : 33-16 060 0010
  • MONROE : L69602
  • NAPA : NST4355
  • Schaeffler FAG : 818 0408 10
  • SKF : VKDS 846000
  • TRW : JTS7666
