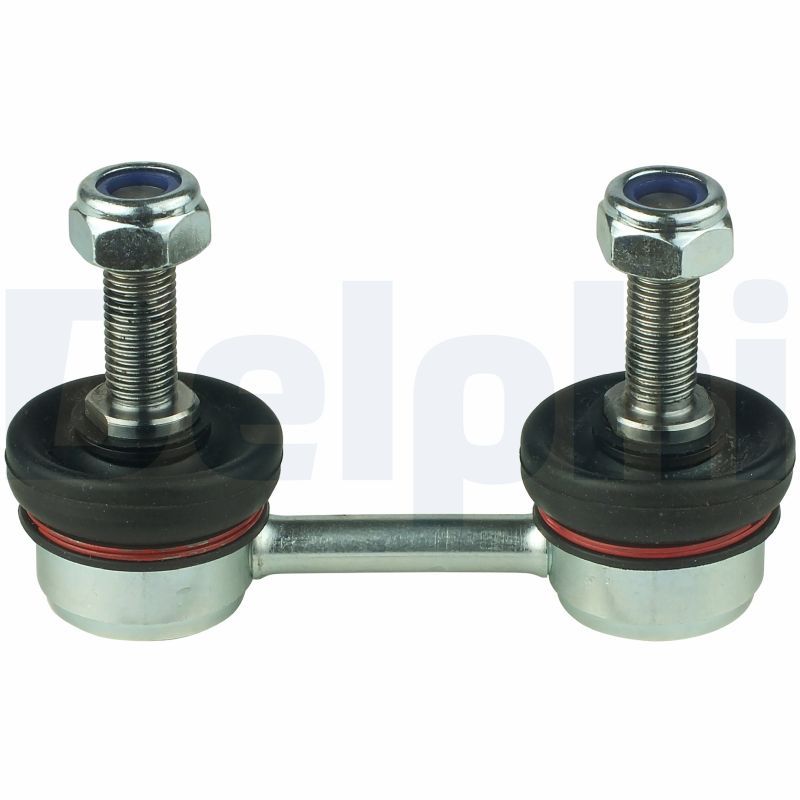

Delphi TC2615 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2615 Link/Coupling Rod, stabiliser bar video
Delphi TC2615 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2615 Link/Coupling Rod, stabiliser bar video
DELPHI

Delphi TC2615 Anti-Roll Bar Link

SKU: TC2615
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£19.10 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
FORESTER (SG_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SG5) 1994 CCM 125 HP 06/2002 - 05/2005
2.0 S Turbo AWD (SG5) 1994 CCM 177 HP 02/2002 - 05/2005
2.5 AWD (SG9) 2457 CCM 211 HP 12/2003 - 05/2005
2.0 X AWD (SG5) 1994 CCM 158 HP 06/2005 - 05/2008
2.5 AWD (SG9, S11SG, S12SH) 2457 CCM 230 HP 06/2005 - 05/2008
2.5 RX Nato AWD (SG9) 2457 CCM 156 HP 11/2002 - 12/2008
2.5 AWD 2457 CCM 232 HP 01/2004 - 12/2009
FORESTER (SH_)
Description Cylinder Capacity Horse Power Year
2.5 AWD (SH9) 2457 CCM 230 HP 06/2008 - 09/2013
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
2.5 WRX STi AWD (GDF) 2457 CCM 280 HP 09/2005 - 12/2007
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
2.5 AWD 2457 CCM 320 HP 02/2007 - 12/2007

The Delphi TC2615 Anti-Roll Bar Link is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records steel construction, M10x1.25 thread size 1, M10x1.25 thread size 2, and rear axle fitting position. It is listed in the link/Coupling Rod, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Link/Coupling Rod, stabiliser bar
Material : Steel
Thread Size 1 : M10x1.25
Thread Size 2 : M10x1.25
Rod/Strut : Coupling Rod
Width [mm] : 33
Height [mm] : 62.8
Length [mm] : 70
Fitting Position : Rear Axle
  • Vendor DELPHI
  • SKU TC2615
  • Barcode 5012759496374
  • SUBARU : 20470-SA010 20470-SA011
  • APEC : AST4377
  • BLUE PRINT : ADS78506
  • BORG & BECK : BDL6955
  • FEBI BILSTEIN : 32495
  • FIRST LINE : FDL6955
  • LEMFÖRDER : 36388 01
  • MEYLE : 34-16 060 0004/HD
  • MONROE : L68604
  • NAPA : NST4377
  • SKF : VKDS 948002
  • TRW : JTS7606
