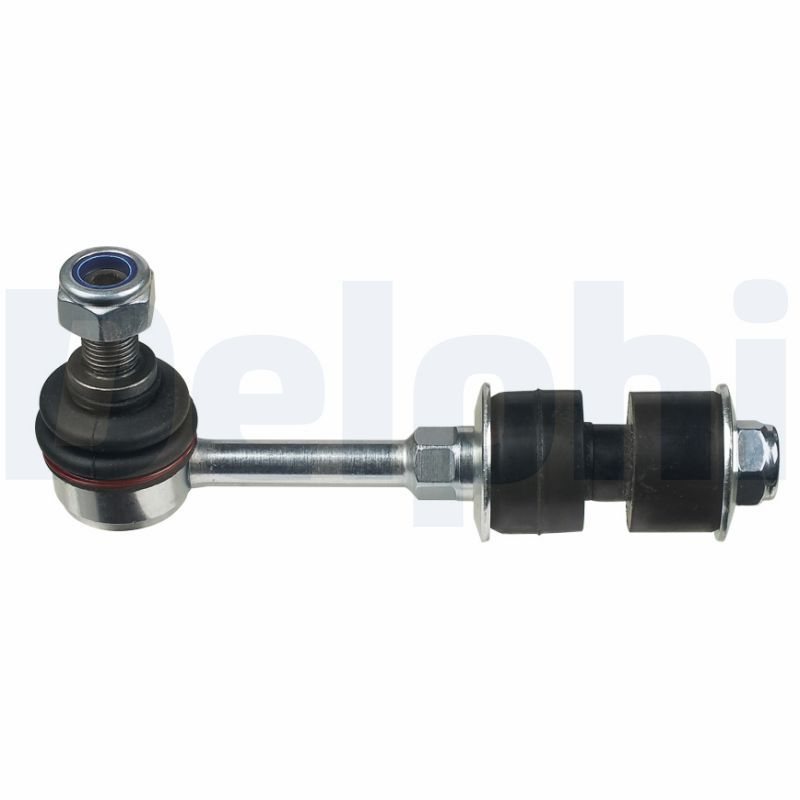

Delphi TC2628 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2628 Link/Coupling Rod, stabiliser bar video
Delphi TC2628 Link/Coupling Rod, stabiliser bar - 1
Delphi TC2628 Link/Coupling Rod, stabiliser bar video
DELPHI

Delphi TC2628 Anti-Roll Bar Link

SKU: TC2628
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£16.53 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
ACROSS (A5Z_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid 2487 CCM 306 HP From 06/2020
TOYOTA
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (ACA31, ACA33) 2362 CCM 170 HP 11/2005 - 06/2013
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.4 (ACA36, ACA38) 2362 CCM 170 HP 11/2005 - 12/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 4WD (ZSA44) 1987 CCM 146 HP 12/2012 - 09/2019
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 (ZSA42) 1987 CCM 146 HP 12/2012 - 09/2019
2.5 4WD (ASA44) 2494 CCM 180 HP 12/2012 - 10/2018
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018
2.5 (ASA42) 2494 CCM 180 HP 12/2012 - 11/2018
2.5 Hybrid (AVA42_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 (ZSA42) 1987 CCM 143 HP 12/2012 - 09/2019
RAV 4 IV VAN (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi 4WD (ZSA44) 1987 CCM 152 HP 12/2012 - 11/2018
RAV 4 V (_A5_, _H5_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXAH52) 2487 CCM 218 HP From 12/2018
2.0 (MXAA52) 1987 CCM 175 HP From 12/2018
2.0 AWD (MXAA54) 1987 CCM 175 HP From 12/2018
2.0 VVTi (MXAA52) 1987 CCM 173 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 173 HP From 02/2019
2.0 VVTi (MXAA52) 1987 CCM 150 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 150 HP From 12/2018
2.5 VVTi AWD (AXAA54) 2487 CCM 203 HP From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54) 2487 CCM 222 HP From 12/2018
2.5 Hybrid AWD (AXAP54, AXAP54L) 2487 CCM 306 HP From 09/2020
LEXUS
NX (_Z1_)
Description Cylinder Capacity Horse Power Year
200t (AGZ10_, AGZ10R) 1998 CCM 238 HP From 07/2014
200t AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 07/2014
300h (AYZ10_, AYZ10R) 2493 CCM 197 HP From 07/2014
300 AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 09/2017
300h AWD (AYZ15, AYZ15_, AYZ15R) 2494 CCM 197 HP From 07/2014
300h AWD (AYZ15) 2494 CCM 200 HP From 11/2018
300h (AYZ10_, AYZ10R) 2494 CCM 197 HP From 11/2014

The Delphi TC2628 Anti-Roll Bar Link is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M10x1.25 thread size 1, M12x1.25 thread size 2, 34 mm width, and rear axle fitting position. It is listed in the link/Coupling Rod, stabiliser bar product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Link/Coupling Rod, stabiliser bar
Thread Size 1 : M10x1.25
Thread Size 2 : M12x1.25
Rod/Strut : Coupling Rod
Width [mm] : 34
Height [mm] : 58
Length [mm] : 135
Fitting Position : Rear Axle
  • Vendor DELPHI
  • SKU TC2628
  • Barcode 5012759497777
  • SUZUKI : T488304203
  • TOYOTA : 4881742030 4883042030 4883042022 48830-42021 4881742021 48830-42020
  • LEXUS : 4883042022
  • APEC : AST4105
  • BLUE PRINT : ADT38588
  • BORG & BECK : BDL6972
  • BOSCH : 0 986 141 414
  • CORTECO : 49398792
  • FEBI BILSTEIN : 42984
  • FIRST LINE : FDL6972
  • KYB : KSLR1060
  • LEMFÖRDER : 39145 01
  • MEYLE : 30-16 060 0004
  • MEYLE : 30-16 060 0093/HD
  • MONROE : L13631
  • NAPA : NST4105
  • Schaeffler FAG : 818 0415 10
  • SKF : VKDS 941006
