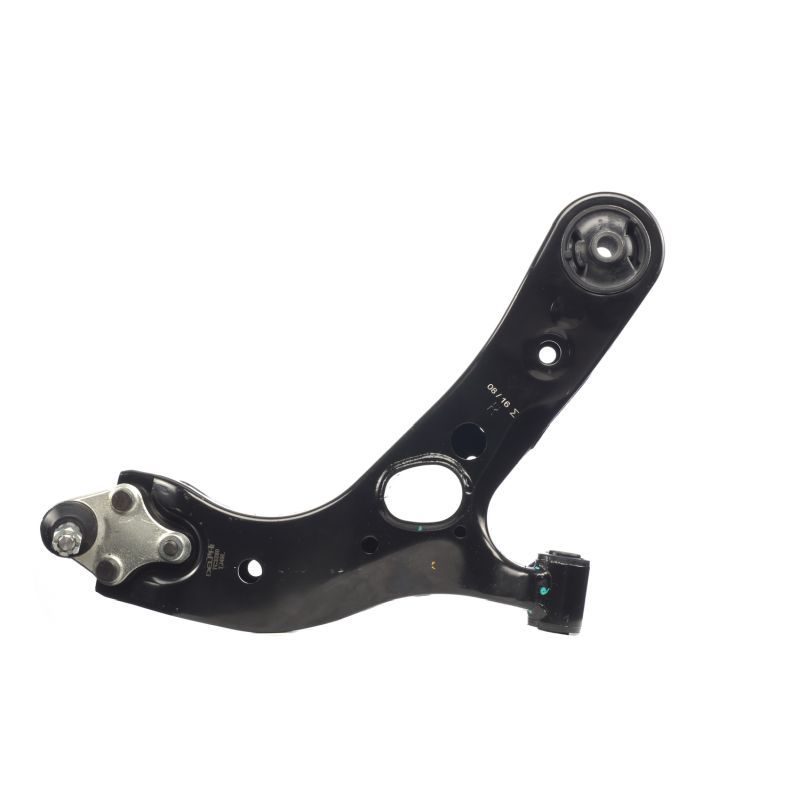

Delphi TC3280 Control/Trailing Arm, wheel suspension - 2

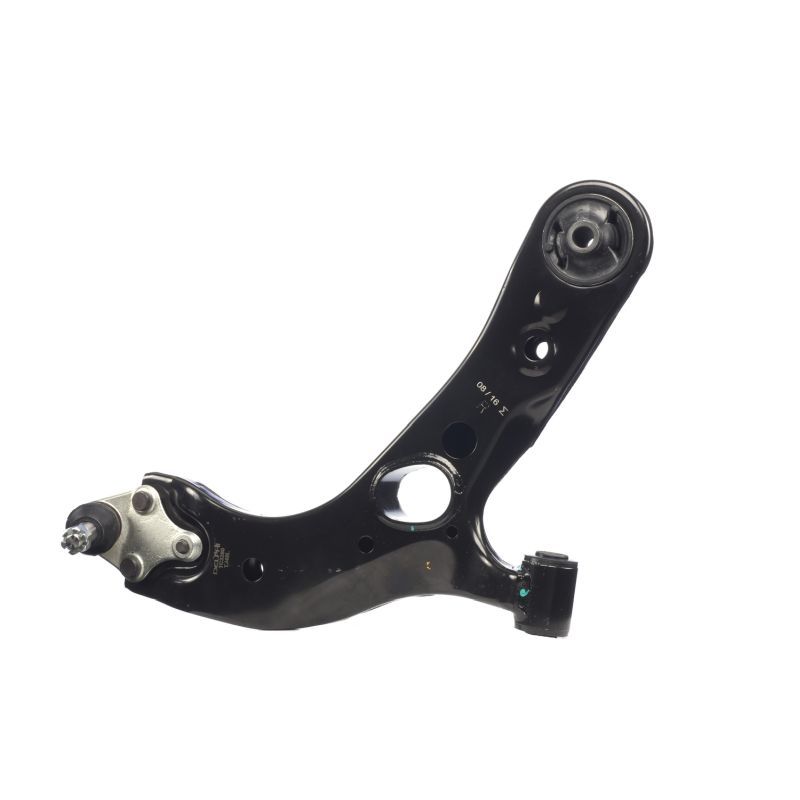

Delphi TC3280 Control/Trailing Arm, wheel suspension - 3

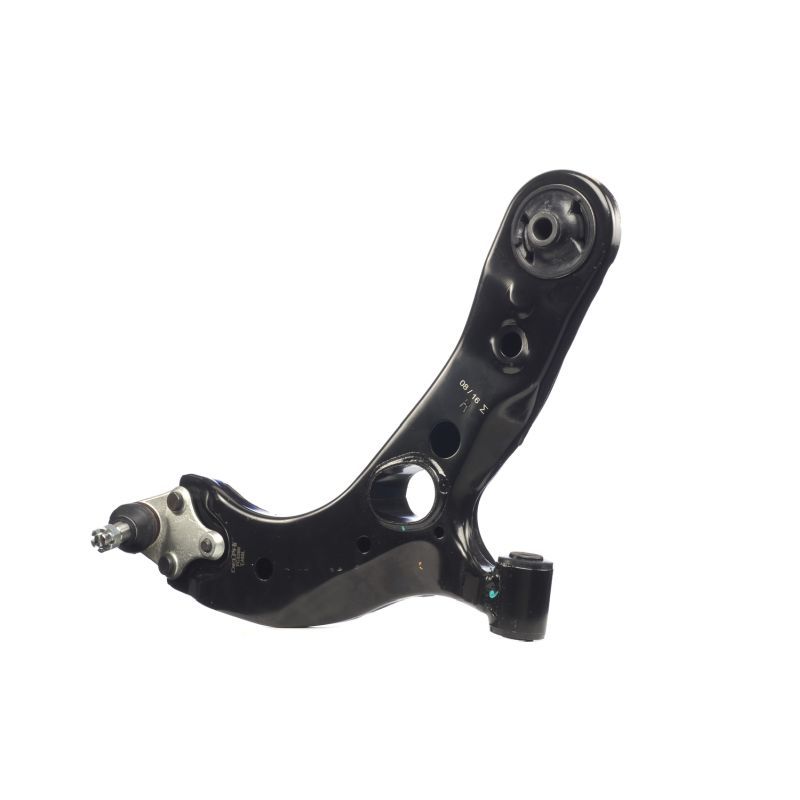

Delphi TC3280 Control/Trailing Arm, wheel suspension - 4

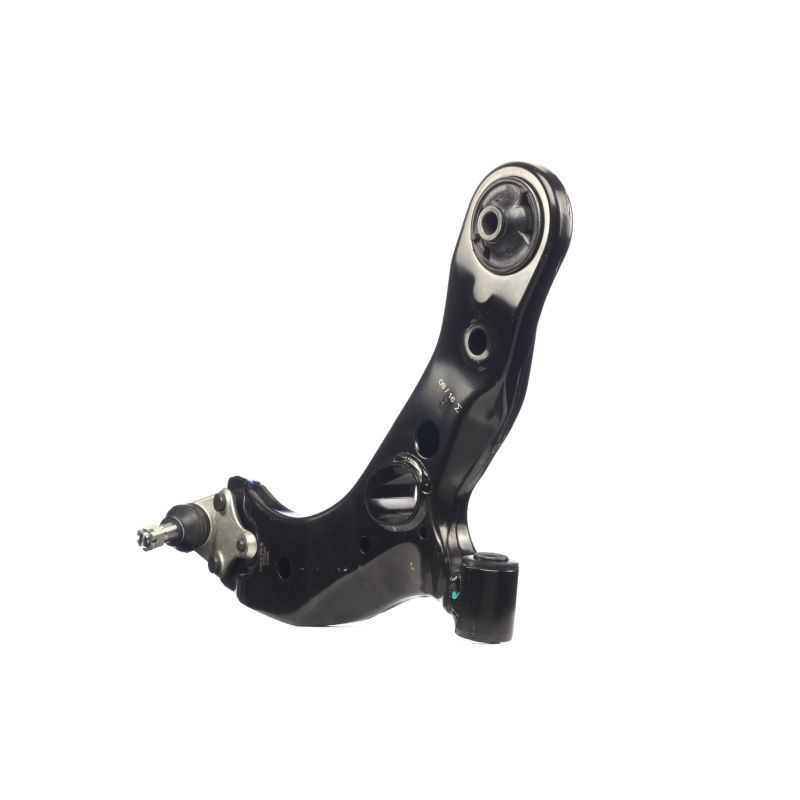

Delphi TC3280 Control/Trailing Arm, wheel suspension - 5

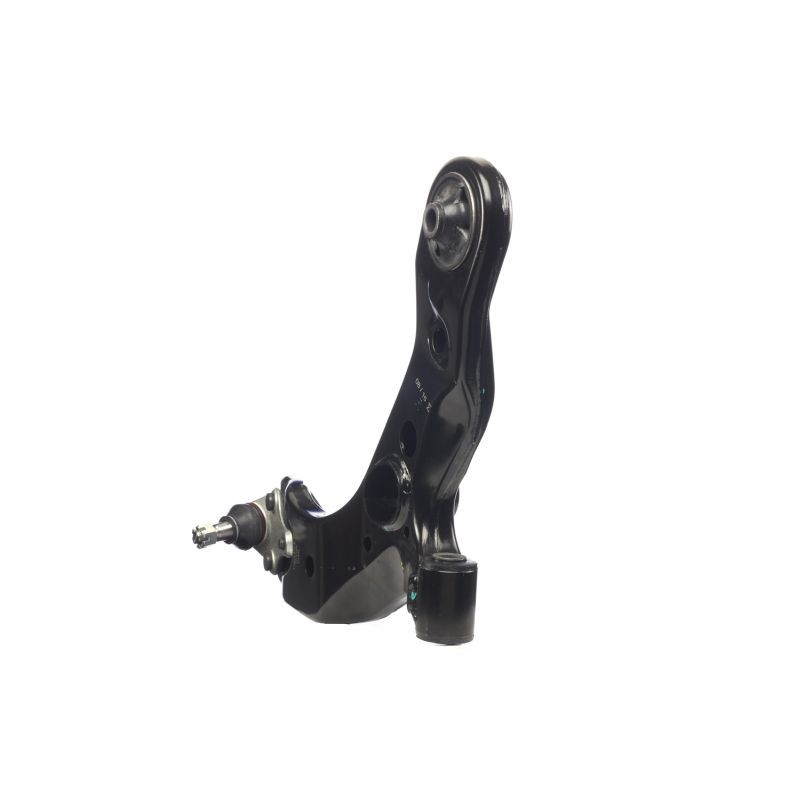

Delphi TC3280 Control/Trailing Arm, wheel suspension - 6
Delphi TC3280 Control/Trailing Arm, wheel suspension video
Delphi TC3280 Control/Trailing Arm, wheel suspension - 1
Delphi TC3280 Control/Trailing Arm, wheel suspension - 2
Delphi TC3280 Control/Trailing Arm, wheel suspension - 3
Delphi TC3280 Control/Trailing Arm, wheel suspension - 4
Delphi TC3280 Control/Trailing Arm, wheel suspension - 5
Delphi TC3280 Control/Trailing Arm, wheel suspension - 6
Delphi TC3280 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC3280 Control/Trailing Arm, wheel suspension

SKU: TC3280
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£99.87 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.4 4WD (ACA31, ACA33) 2362 CCM 170 HP 11/2005 - 06/2013
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.4 (ACA36, ACA38) 2362 CCM 170 HP 11/2005 - 12/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 4WD (ZSA44) 1987 CCM 146 HP 12/2012 - 09/2019
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 (ZSA42) 1987 CCM 146 HP 12/2012 - 09/2019
2.5 4WD (ASA44) 2494 CCM 180 HP 12/2012 - 10/2018
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018
2.5 Hybrid (AVA42_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 (ZSA42) 1987 CCM 143 HP 12/2012 - 09/2019
RAV 4 IV VAN (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi 4WD (ZSA44) 1987 CCM 152 HP 12/2012 - 11/2018
LEXUS
NX (_Z1_)
Description Cylinder Capacity Horse Power Year
200t (AGZ10_, AGZ10R) 1998 CCM 238 HP From 07/2014
200t AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 07/2014
300h (AYZ10_, AYZ10R) 2493 CCM 197 HP From 07/2014
300 AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 09/2017
300h AWD (AYZ15, AYZ15_, AYZ15R) 2494 CCM 197 HP From 07/2014
300h (AYZ10_, AYZ10R) 2494 CCM 197 HP From 11/2014

The Delphi TC3280 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records right and lower fitting position, sheet Steel construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Right
Fitting Position : Lower
Material : Sheet Steel
Paired article number : TC3279
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 455
Width [mm] : 430
Height [mm] : 105
  • Vendor DELPHI
  • SKU TC3280
  • Barcode 5012759970638
  • TOYOTA : 480680R010* 48068-42050* 48068-42051*
  • APEC : AST2495
  • BLUE PRINT : ADT386186
  • BORG & BECK : BCA6872
  • CORTECO : 49397379
  • FEBI BILSTEIN : 43073
  • FIRST LINE : FCA6872
  • MEYLE : 30-16 050 0012
  • MONROE : L13577
  • NAPA : NST2495
  • Schaeffler FAG : 821 0910 10
  • SKF : VKDS 821101 B
  • User manual
