Delphi TC3628 Control/Trailing Arm, wheel suspension - 1
Delphi TC3628 Control/Trailing Arm, wheel suspension video
Delphi TC3628 Control/Trailing Arm, wheel suspension - 1
Delphi TC3628 Control/Trailing Arm, wheel suspension video
DELPHI

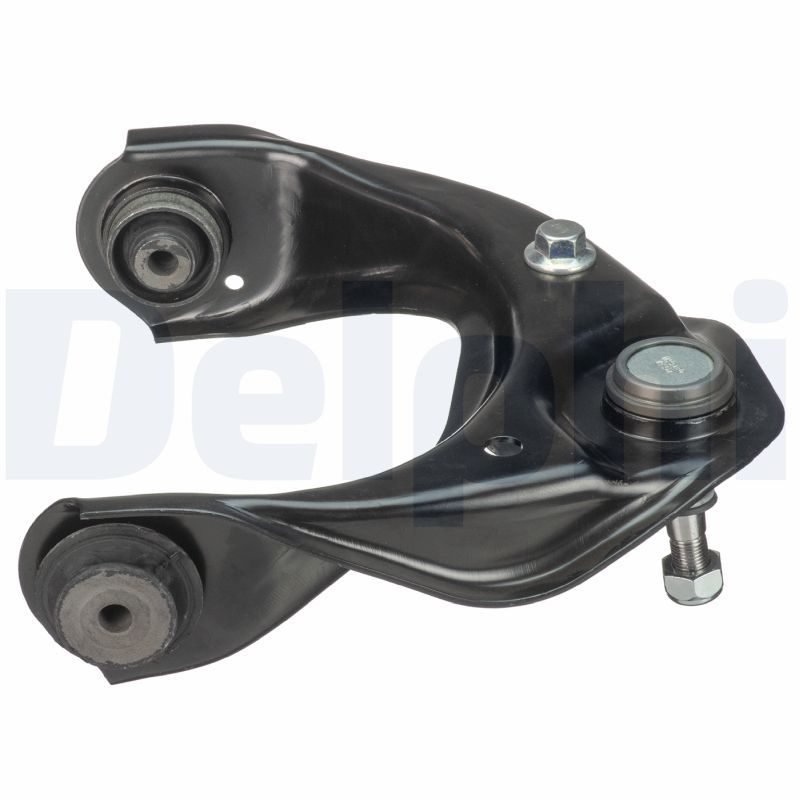

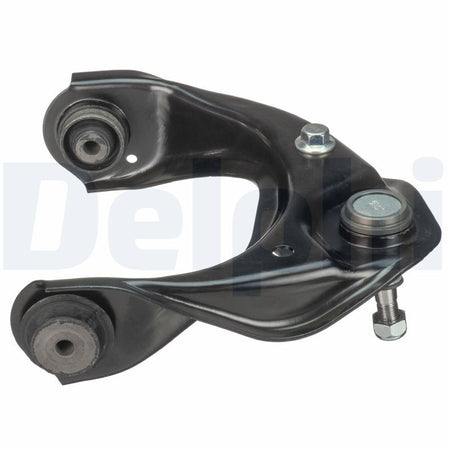

Delphi TC3628 Control/Trailing Arm, wheel suspension

SKU: TC3628
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£64.61 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
6 Saloon (GH)
Description Cylinder Capacity Horse Power Year
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFP, GH10F) 1999 CCM 147 HP 08/2007 - 12/2012
2.5 MZR (GH5FS, GH5FP) 2488 CCM 170 HP 08/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2010
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.0 MZR (GHEFP) 1999 CCM 155 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.2 D (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
6 Hatchback (GH)
Description Cylinder Capacity Horse Power Year
2.2 MZR-CD (GH10) 2184 CCM 180 HP 01/2010 - 12/2012
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 12/2012
2.0 MZR (GHEFS) 1999 CCM 155 HP 01/2010 - 12/2012
1.8 MZR 1798 CCM 120 HP 08/2007 - 07/2013
2.0 MZR (GHEFS) 1999 CCM 147 HP 08/2007 - 07/2013
2.5 MZR (GH5FS) 2488 CCM 170 HP 08/2007 - 03/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 08/2007 - 10/2009
2.2 MZR-CD (GH10) 2184 CCM 185 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 163 HP 01/2009 - 12/2012
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2012
6 Estate (GH)
Description Cylinder Capacity Horse Power Year
2.0 MZR (GHEFW) 1999 CCM 155 HP 01/2010 - 07/2013
2.2 D (GH10) 2184 CCM 129 HP 01/2010 - 07/2013
2.2 MZR-CD (GH10) 2183 CCM 180 HP 01/2010 - 07/2013
1.8 MZR 1798 CCM 120 HP 02/2008 - 07/2013
2.0 MZR (GHEFW, GH10F) 1999 CCM 147 HP 12/2007 - 07/2013
2.0 MZR-CD (GH14) 1998 CCM 140 HP 12/2007 - 12/2010
2.5 MZR (GH5FW) 2488 CCM 170 HP 02/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 125 HP 01/2009 - 12/2010
2.2 MZR-CD (GH10) 2184 CCM 163 HP 08/2008 - 07/2013
2.2 MZR-CD (GH10) 2184 CCM 185 HP 08/2008 - 12/2011

The Delphi TC3628 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records upper and right fitting position, sheet Steel construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Upper
Fitting Position : Right
Material : Sheet Steel
Paired article number : TC3627
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 280
Width [mm] : 270
Height [mm] : 90
  • Vendor DELPHI
  • SKU TC3628
  • Barcode 5012759991886
  • MAZDA : GS1D34200A GS1D34200B GS1D34200C
  • APEC : AST2489
  • BLUE PRINT : ADBP860043
  • BORG & BECK : BCA7356
  • CORTECO : 49397753
  • FEBI BILSTEIN : 175129
  • FIRST LINE : FCA7356
  • MEYLE : 35-16 050 0024
  • MONROE : L50549
  • NAPA : NST2489
  • SKF : VKDS 824064 B
