DELPHI

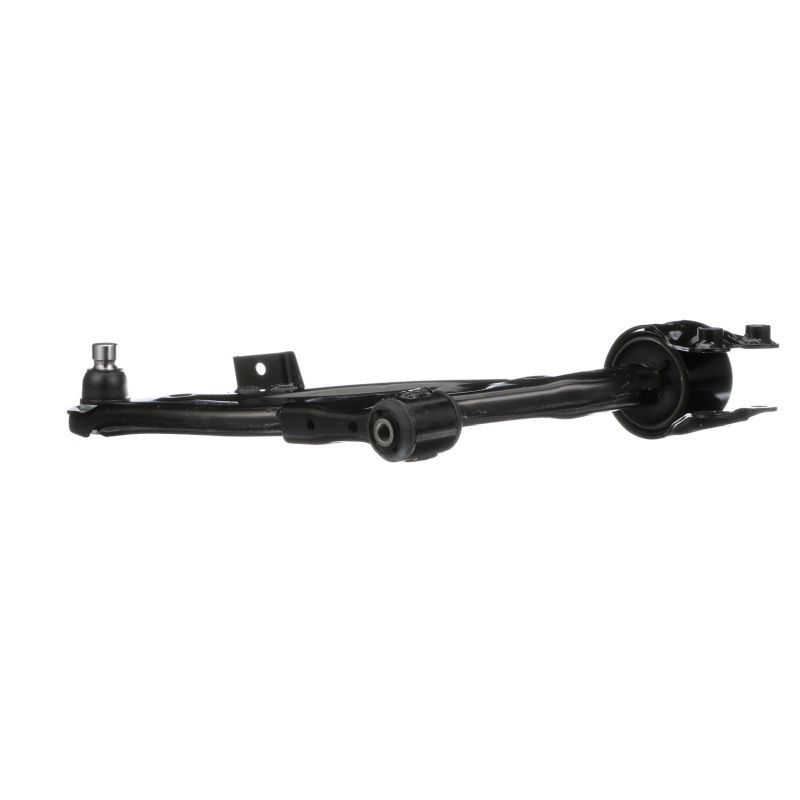

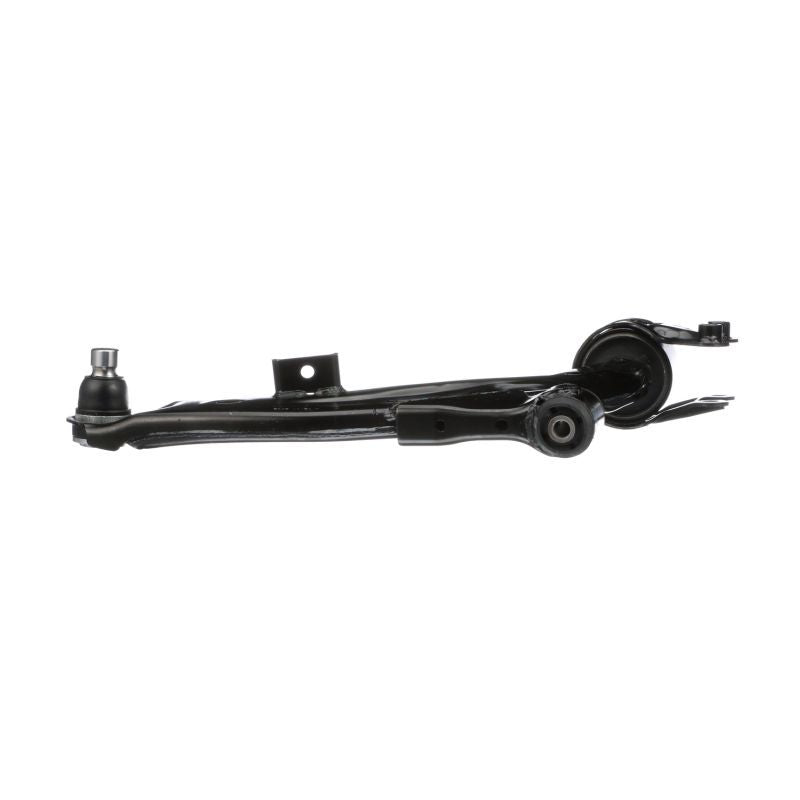

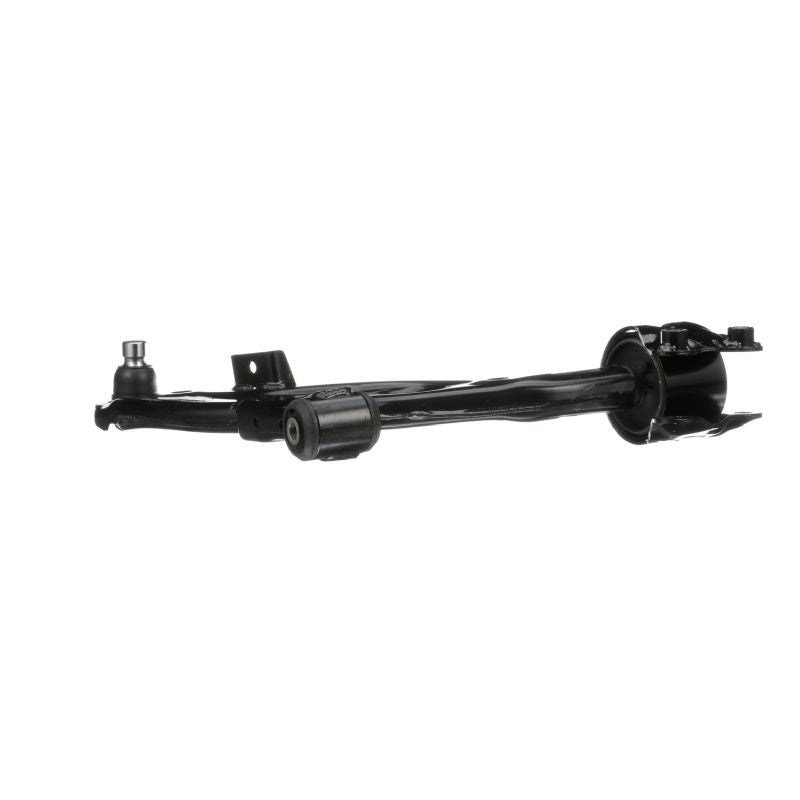

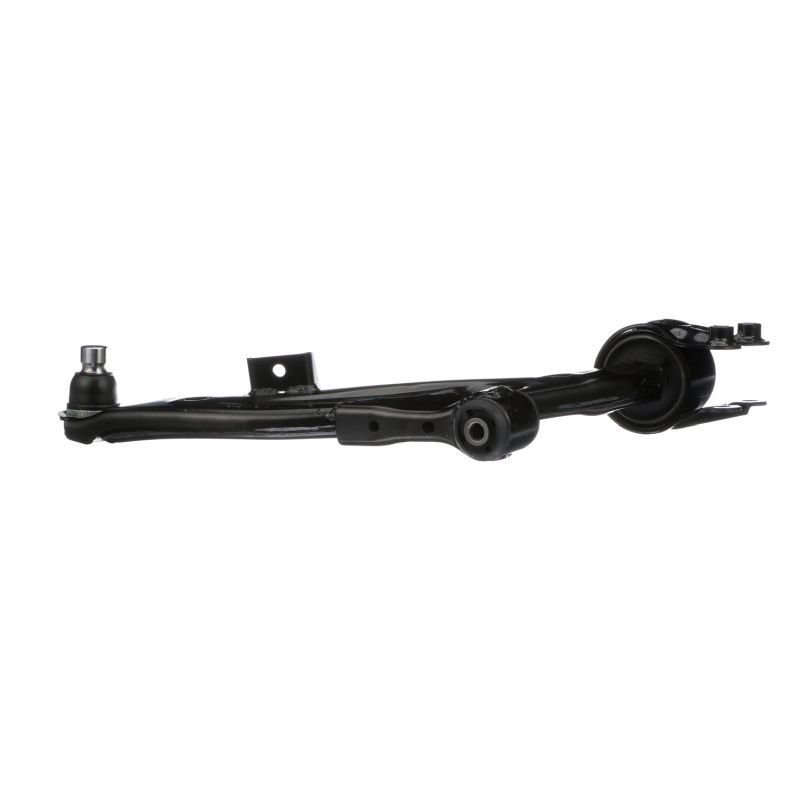

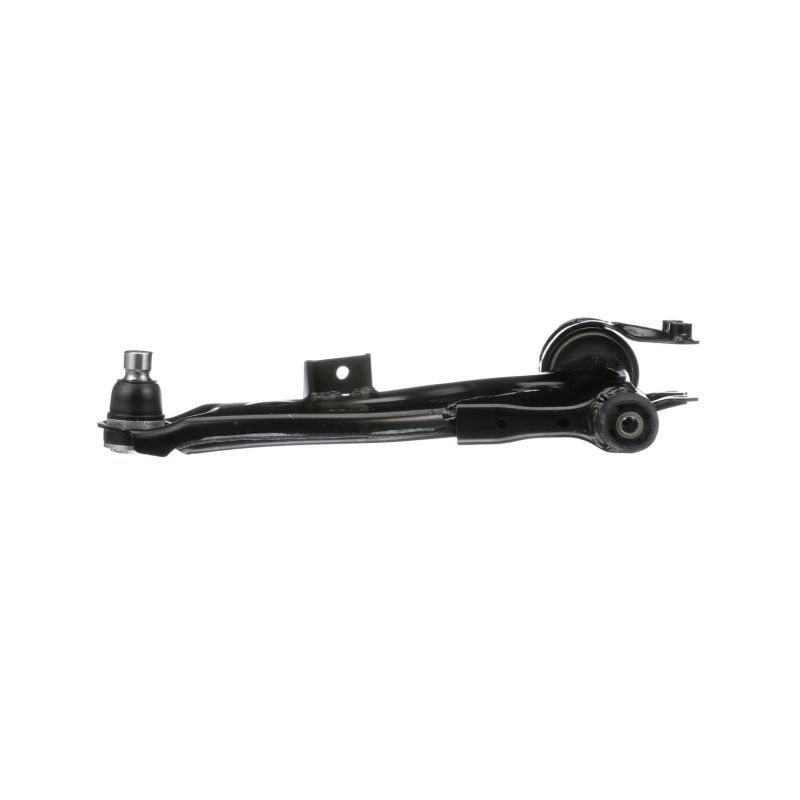

Delphi TC3630 Control/Trailing Arm, wheel suspension

SKU: TC3630

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£128.85 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

CX-7 (ER)

Description	Cylinder Capacity	Horse Power	Year
2.5 MZR (ER10L)	2488 CCM	163 HP	07/2009 - 03/2013
2.2 MZR-CD AWD (ER10A)	2184 CCM	163 HP	01/2012 - 03/2013
2.3 MZR DISI Turbo AWD (ER3P)	2261 CCM	258 HP	10/2007 - 08/2009
2.3 MZR DISI Turbo AWD (ER3P)	2261 CCM	260 HP	06/2009 - 03/2013
2.2 MZR-CD AWD (ER10A)	2184 CCM	173 HP	07/2009 - 03/2013

The Delphi TC3630 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records front axle right and lower fitting position, sheet Steel construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension

Fitting Position : Front Axle Right

Fitting Position : Lower

Material : Sheet Steel

Paired article number : TC3629

Control/Trailing Arm Type : Control Arm

Supplementary Article/Supplementary Info 2 : with ball joint

Length [mm] : 530

Width [mm] : 410

Height [mm] : 110

Delphi TC3630 Control/Trailing Arm, wheel suspension
