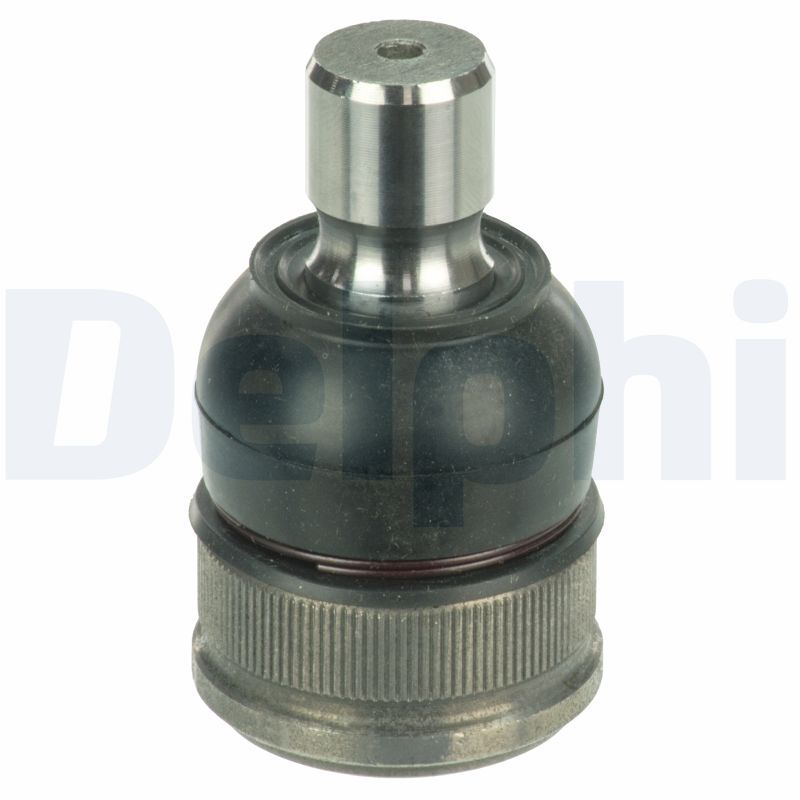

Delphi TC3687 Ball Joint - 1
Delphi TC3687 Ball Joint - 1
DELPHI

Delphi TC3687 Ball Joint

SKU: TC3687
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£18.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 (BM, BN)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 100 HP 09/2013 - 05/2019
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.2 D 2191 CCM 150 HP 09/2013 - 05/2019
2.0 1998 CCM 165 HP 07/2013 - 05/2019
1.6 (BM4, BN4) 1598 CCM 105 HP 09/2013 - 05/2019
1.5 1496 CCM 120 HP 10/2013 - 05/2019
1.5 D (BMLFS, BM4, BN4) 1499 CCM 105 HP 02/2016 - 05/2019
3 Saloon (BM_, BN_)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.2 D 2191 CCM 150 HP 09/2013 - 05/2019
2.0 1998 CCM 165 HP 11/2014 - 05/2019
1.5 1496 CCM 100 HP 10/2014 - 05/2019
1.6 (BM6FJ) 1598 CCM 105 HP 09/2013 - 05/2019
1.5 1496 CCM 120 HP 10/2013 - 05/2019
1.5 D (BMLFP, BMLFS) 1499 CCM 105 HP 06/2016 - 05/2019
3 Saloon (BP_)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5S, BP6S) 1496 CCM 120 HP From 11/2018
2.0 SKYACTIV-X M Hybrid (BP2S) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) 1998 CCM 150 HP From 07/2020
2.0 SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
3 Hatchback (BP)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5H, BP6H) 1496 CCM 120 HP From 06/2019
SKYACTIV-X M Hybrid (BP2H) 1998 CCM 179 HP From 06/2019
SKYACTIV-X M Hybrid AWD (BP2H) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G (BP5H, BP6H) 1998 CCM 150 HP From 11/2018
2.0 SKYACTIV-G M Hybrid 1998 CCM 150 HP From 01/2020
SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 02/2021
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FW, GJ692) 2191 CCM 175 HP 08/2012 - 02/2018
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.2 D 2191 CCM 150 HP 10/2012 - 12/2020
2.5 2488 CCM 192 HP From 12/2012
2.2 D AWD 2191 CCM 175 HP From 02/2015
2.2 D AWD 2191 CCM 150 HP 12/2012 - 12/2020
2.5 2488 CCM 194 HP From 03/2018
2.2 D 2191 CCM 184 HP 03/2018 - 12/2020
2.2 D AWD 2191 CCM 184 HP 03/2018 - 12/2020
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FP, GJ1021, GJ1022, GL1021) 2191 CCM 175 HP From 12/2012
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 192 HP From 01/2013
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.2 D 4WD (GJ2AP) 2188 CCM 175 HP From 07/2014
2.0 1998 CCM 150 HP 12/2012 - 02/2018
2.5 2488 CCM 194 HP From 03/2018
2.2 D 2191 CCM 184 HP 03/2018 - 11/2020
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 231 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 190 HP From 03/2018
CX-3 (DK)
Description Cylinder Capacity Horse Power Year
1.5 SKYACTIV-D (DK2WS, DK5FW) 1499 CCM 105 HP 02/2015 - 01/2018
1.5 SKYACTIV-D AWD (DK4WS, DK5AW) 1499 CCM 105 HP 02/2015 - 01/2018
2.0 SKYACTIV-G (DK5W, DK6W) 1998 CCM 120 HP From 05/2015
2.0 SKYACTIV-G AWD (DK4W7, DKEAW) 1998 CCM 150 HP From 05/2015
1.8 SKYACTIV-D AWD (DK2WS) 1759 CCM 116 HP From 02/2018
1.8 SKYACTIV-D (DK4WS) 1759 CCM 116 HP From 02/2018
2.0 SKYACTIV-G 1998 CCM 121 HP From 02/2018
2.0 SKYACTIV-G (DK2W7, DKEFW) 1998 CCM 150 HP From 05/2018
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.2 D AWD 2191 CCM 188 HP From 03/2018
2.2 D AWD 2191 CCM 184 HP From 06/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018
2.2 SKYACTIV-D 2191 CCM 184 HP From 02/2021
CX-30 (DM, DT, ED)
Description Cylinder Capacity Horse Power Year
SKYACTIV-G M Hybrid 1998 CCM 122 HP From 07/2019
SKYACTIV-G M Hybrid AWD 1998 CCM 122 HP From 07/2019
SKYACTIV-X M Hybrid (DMFP) 1998 CCM 179 HP From 07/2019
SKYACTIV-X M Hybrid AWD (DM4W7, DMFP) 1998 CCM 179 HP From 07/2019
1.8 SKYACTIV-D 1759 CCM 116 HP From 07/2019
1.8 SKYACTIV-D AWD 1759 CCM 116 HP From 07/2019
SKYACTIV-G M Hybrid (DM5W, DM6W) 1998 CCM 150 HP From 01/2020
SKYACTIV-G M Hybrid AWD (DMEW, DMFW) 1998 CCM 150 HP From 01/2020
e-SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 06/2021
e-SKYACTIV-X M Hybrid 1998 CCM 186 HP From 06/2021

The Delphi TC3687 Ball Joint is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records Pinch Bolt 20 mm thread size, 44 mm length, 44 mm width, and front axle and outer fitting position. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Ball Joint
Thread Size : Pinch Bolt 20 mm
Length [mm] : 44
Width [mm] : 44
Height [mm] : 78
Fitting Position : Front Axle
Fitting Position : outer
  • Vendor DELPHI
  • SKU TC3687
  • Barcode 5012759991763
  • MAZDA : KD3534300D* KD3534350D*
  • APEC : AST0266
  • BLUE PRINT : ADBP860195
  • BLUE PRINT : ADBP860196
  • BORG & BECK : BBJ5706
  • BOSCH : 0 986 140 925
  • FEBI BILSTEIN : 186316
  • FEBI BILSTEIN : 186317
  • FEBI BILSTEIN : 197921
  • FIRST LINE : FBJ5706
  • KYB : KBJ1199
  • MEYLE : 35-16 010 0032
  • MONROE : L50546
  • NAPA : NST0266
  • SKF : VKDS 814010
