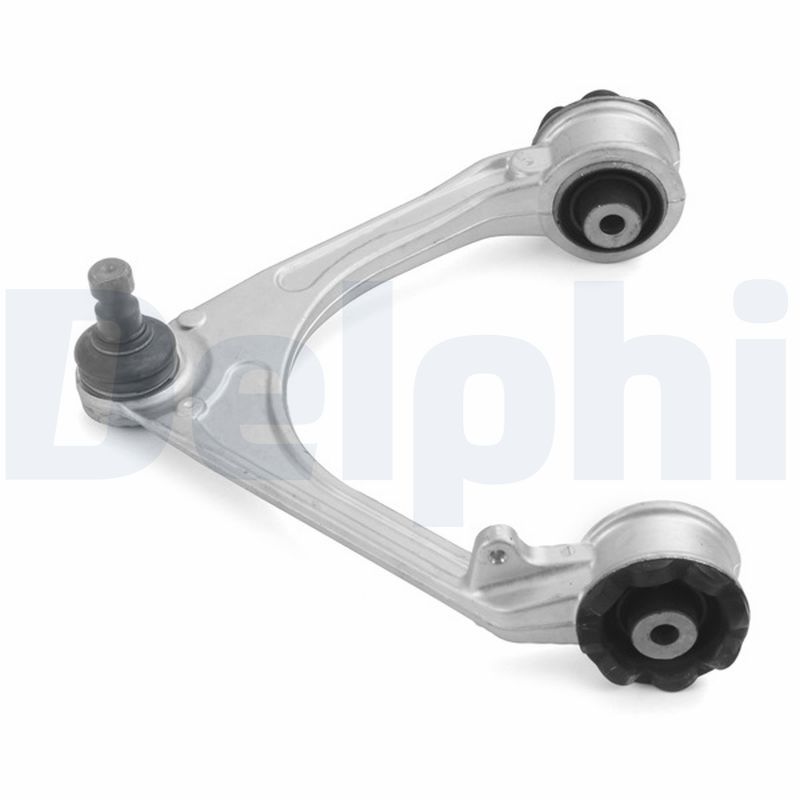

Delphi TC4523 Control/Trailing Arm, wheel suspension - 1
Delphi TC4523 Control/Trailing Arm, wheel suspension video
Delphi TC4523 Control/Trailing Arm, wheel suspension - 1
Delphi TC4523 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC4523 Control/Trailing Arm, wheel suspension

SKU: TC4523
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£105.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
XE (X760)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 03/2015
2.0 D 1999 CCM 180 HP From 03/2015
2.0 1999 CCM 200 HP From 03/2015
2.0 1999 CCM 241 HP From 03/2015
3.0 S 2995 CCM 340 HP From 03/2015
2.0 D AWD 1999 CCM 180 HP From 10/2015
2.0 D AWD 1999 CCM 241 HP From 02/2017
2.0 1997 CCM 250 HP From 02/2017
2.0 AWD 1997 CCM 250 HP From 02/2017
3.0 S 2995 CCM 381 HP From 02/2017
2.0 AWD 1997 CCM 300 HP From 06/2017
5.0 SVO PROJECT 8 5000 CCM 600 HP From 03/2018
2.0 1997 CCM 200 HP From 02/2017
XF II (X260)
Description Cylinder Capacity Horse Power Year
3.0 2995 CCM 340 HP From 05/2015
3.0 2995 CCM 380 HP From 05/2015
2.0 1999 CCM 241 HP From 05/2015
3.0 D 2993 CCM 300 HP From 05/2015
2.0 D 1999 CCM 163 HP From 05/2015
2.0 D 1999 CCM 180 HP From 05/2015
3.0 AWD 2995 CCM 340 HP From 07/2015
3.0 AWD 2995 CCM 380 HP From 07/2015
2.0 D AWD 1999 CCM 180 HP From 03/2016
2.0 D 1999 CCM 241 HP From 03/2017
2.0 D AWD 1999 CCM 241 HP From 03/2017
2.0 1997 CCM 200 HP From 03/2017
2.0 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 300 HP From 09/2017
XF SPORTBRAKE (X260)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 07/2017
2.0 D 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 241 HP From 07/2017
3.0 D 2993 CCM 300 HP From 07/2017
2.0 1997 CCM 250 HP From 07/2017
3.0 AWD 2995 CCM 380 HP From 07/2017
3.0 2995 CCM 380 HP From 07/2017
2.0 1997 CCM 200 HP From 07/2017
2.0 AWD 1997 CCM 300 HP From 08/2018
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
2.0 D200 MHEV AWD 1997 CCM 204 HP From 11/2020

The Delphi TC4523 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records left and front axle fitting position, aluminium construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Left
Fitting Position : Front Axle
Material : Aluminium
Paired article number : TC4520
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 450
Width [mm] : 450
  • Vendor DELPHI
  • SKU TC4523
  • Barcode 5012759619872
  • JAGUAR : T4N1130
  • BORG & BECK : BCA7885
  • FIRST LINE : FCA7885
  • LEMFÖRDER : 39841 01
  • MONROE : L16J74
