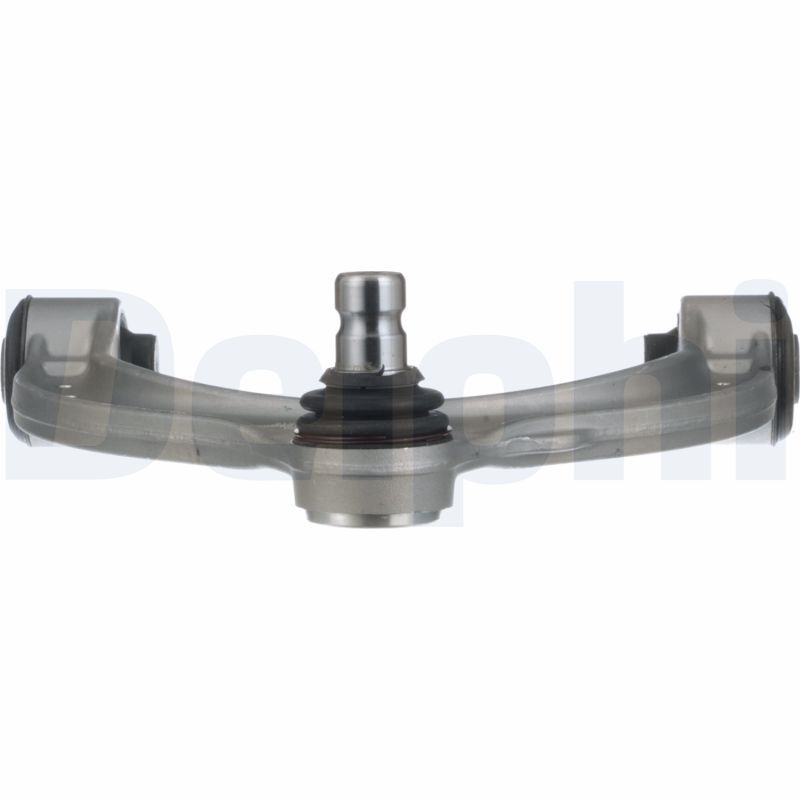

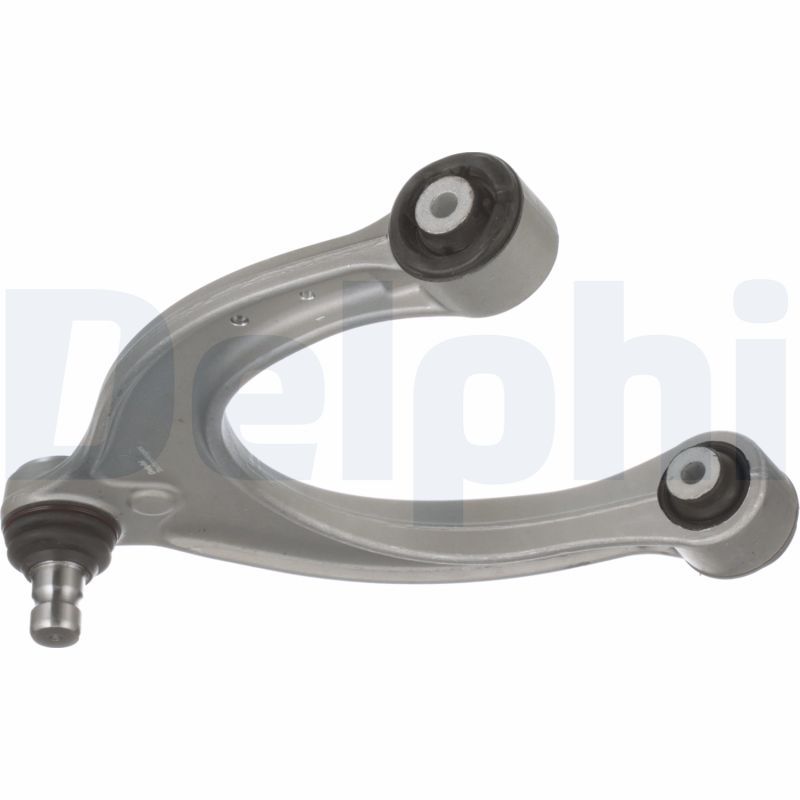

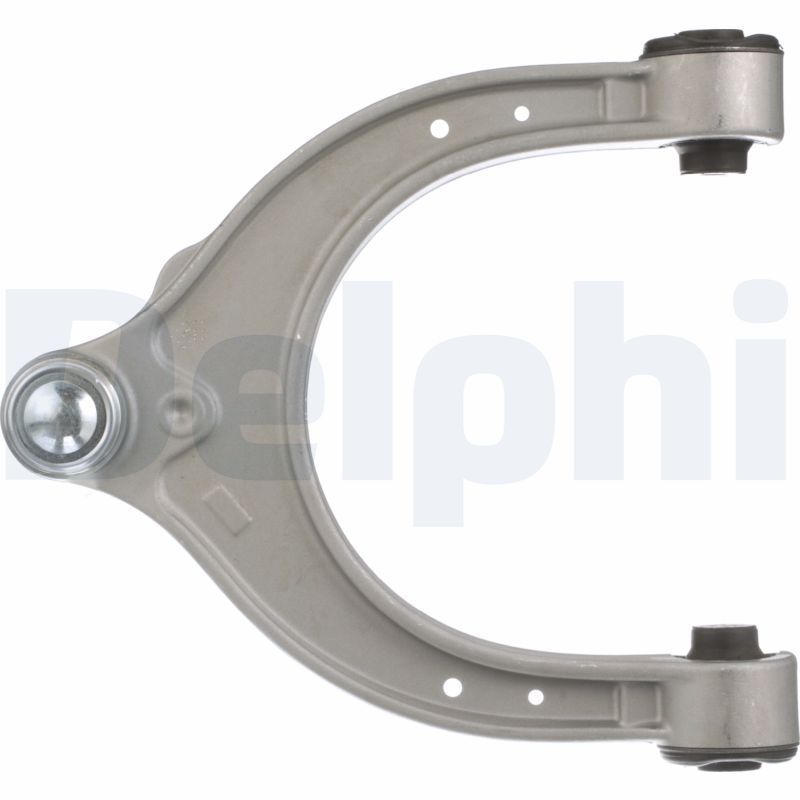

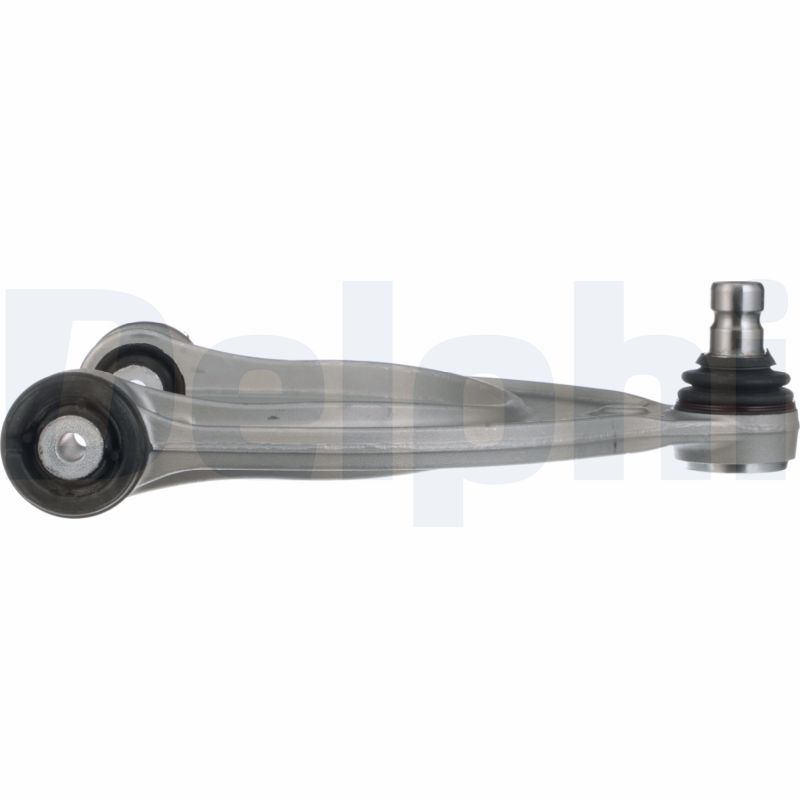

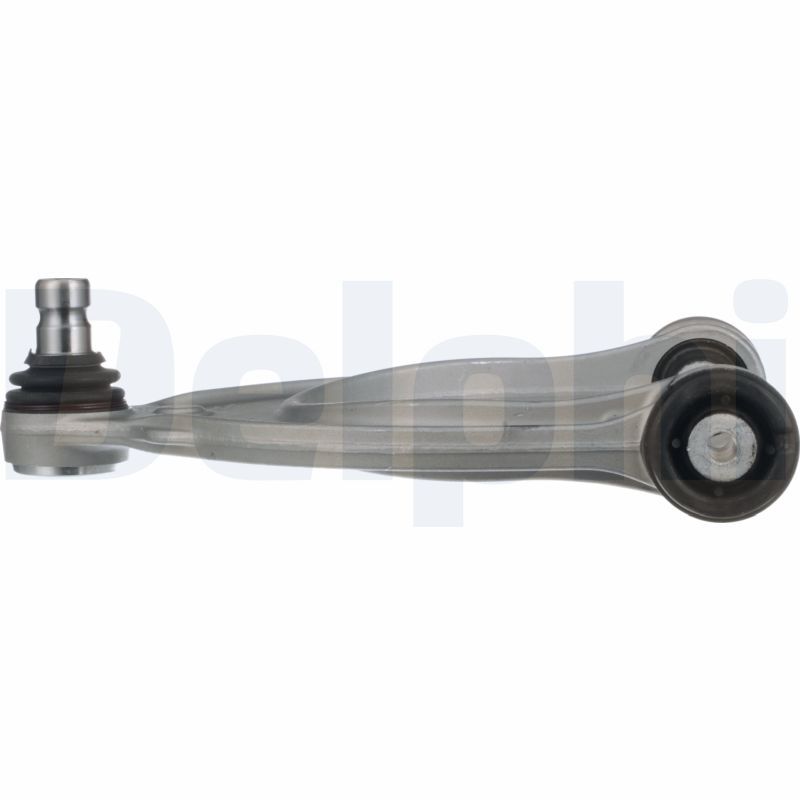

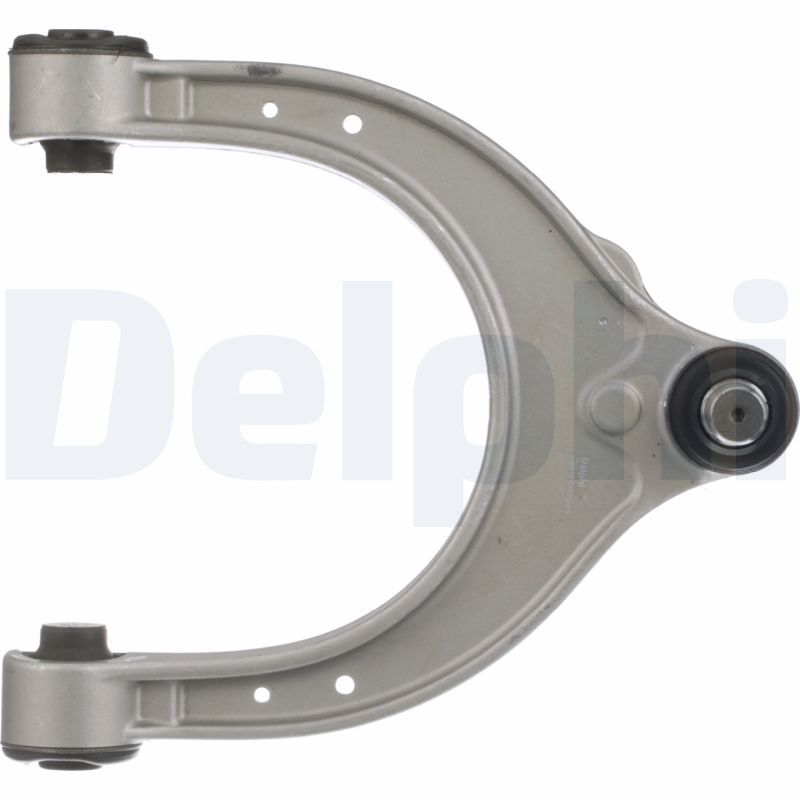

Delphi TC6834 Control/Trailing Arm, wheel suspension

SKU: TC6834

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£81.83 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

5 (G30, F90)

Description	Cylinder Capacity	Horse Power	Year
530 i	1998 CCM	252 HP	09/2016 - 06/2020
530 i xDrive	1998 CCM	252 HP	09/2016 - 06/2020
540 i	2998 CCM	340 HP	09/2016 - 06/2020
540 i xDrive	2998 CCM	340 HP	09/2016 - 06/2020
M 550 i xDrive	4395 CCM	462 HP	03/2017 - 06/2019
520 d	1995 CCM	190 HP	09/2016 - 06/2023
520 d xDrive	1995 CCM	190 HP	09/2016 - 06/2023
530 d	2993 CCM	265 HP	09/2016 - 06/2020
530 d xDrive	2993 CCM	265 HP	09/2016 - 06/2020
520 d	1995 CCM	163 HP	09/2016 - 06/2023
520 d xDrive	1995 CCM	163 HP	09/2016 - 06/2023
540 i	2998 CCM	360 HP	09/2016 - 06/2020
540 i xDrive	2998 CCM	360 HP	09/2016 - 06/2020
530 e Plug-in Hybrid	1998 CCM	252 HP	03/2017 - 06/2020
530 e Plug-in-Hybrid xDrive	1998 CCM	252 HP	03/2017 - 06/2023

5 Touring (G31)

Description	Cylinder Capacity	Horse Power	Year
530 i	1998 CCM	252 HP	03/2017 - 06/2020
540 i xDrive	2998 CCM	340 HP	03/2017 - 06/2020
540 i xDrive	2998 CCM	360 HP	03/2017 - 06/2020
520 d	1995 CCM	190 HP	From 03/2017
530 d	2993 CCM	265 HP	03/2017 - 06/2020
530 d xDrive	2993 CCM	265 HP	03/2017 - 06/2020
520 d	1995 CCM	163 HP	From 03/2017
M 550 d xDrive	2993 CCM	400 HP	From 07/2017
540 d xDrive	2993 CCM	320 HP	07/2017 - 06/2020
525 d	1995 CCM	231 HP	07/2017 - 06/2019
520 d xDrive	1995 CCM	190 HP	From 07/2017
530 i xDrive	1998 CCM	252 HP	07/2017 - 06/2020
520 i	1998 CCM	184 HP	07/2017 - 06/2020
520 i	1998 CCM	163 HP	07/2017 - 06/2020
525 d	1995 CCM	211 HP	07/2017 - 06/2019

6 Gran Turismo (G32)

Description	Cylinder Capacity	Horse Power	Year
630 i	1998 CCM	258 HP	07/2017 - 06/2020
640 i	2998 CCM	340 HP	06/2017 - 06/2020
640 i xDrive	2998 CCM	340 HP	06/2017 - 06/2020
630 d	2993 CCM	265 HP	06/2017 - 06/2020
630 d xDrive	2993 CCM	265 HP	06/2017 - 06/2020
640 d xDrive	2993 CCM	320 HP	11/2017 - 06/2020
640 i	2998 CCM	360 HP	06/2017 - 06/2020
640 i xDrive	2998 CCM	360 HP	06/2017 - 06/2020
620 d	1995 CCM	190 HP	07/2018 - 06/2020
620 d xDrive	1995 CCM	190 HP	07/2018 - 06/2020
620 d	1995 CCM	163 HP	07/2018 - 06/2020
620 d xDrive	1995 CCM	163 HP	07/2018 - 06/2020
630 i	1998 CCM	249 HP	06/2017 - 06/2020
630 i xDrive	2998 CCM	258 HP	From 07/2019
630 i Mild-Hybrid	1998 CCM	258 HP	From 07/2020

The Delphi TC6834 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records left, upper, and right fitting position, aluminium construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension

Fitting Position : Left

Fitting Position : Upper

Fitting Position : Right

Material : Aluminium

Control/Trailing Arm Type : Control Arm

Supplementary Article/Supplementary Info 2 : with ball joint

Length [mm] : 266

Width [mm] : 287

Delphi TC6834 Control/Trailing Arm, wheel suspension
