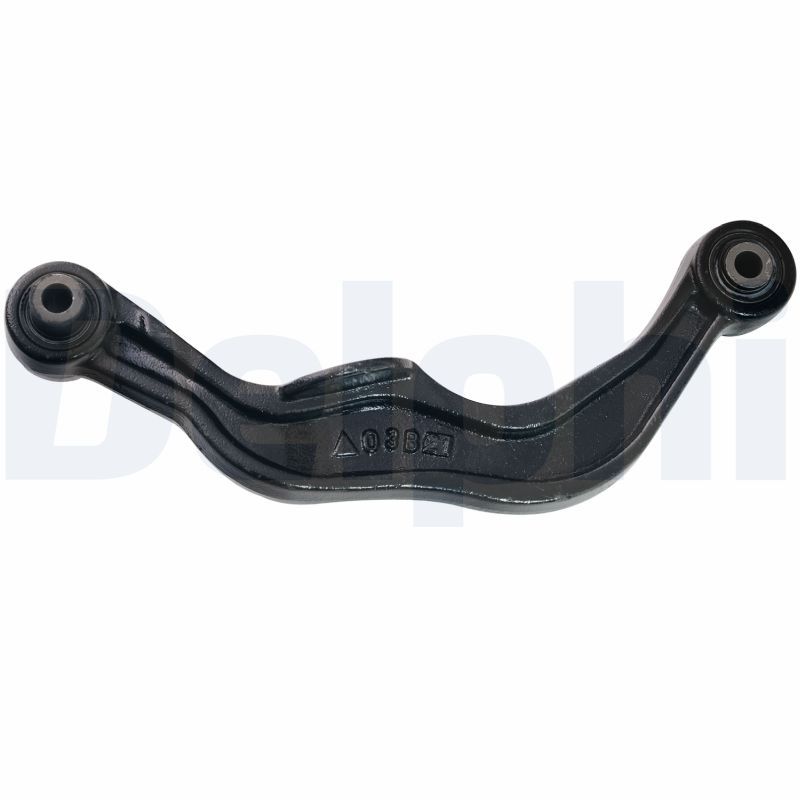

Delphi TC7041 Control/Trailing Arm, wheel suspension - 1

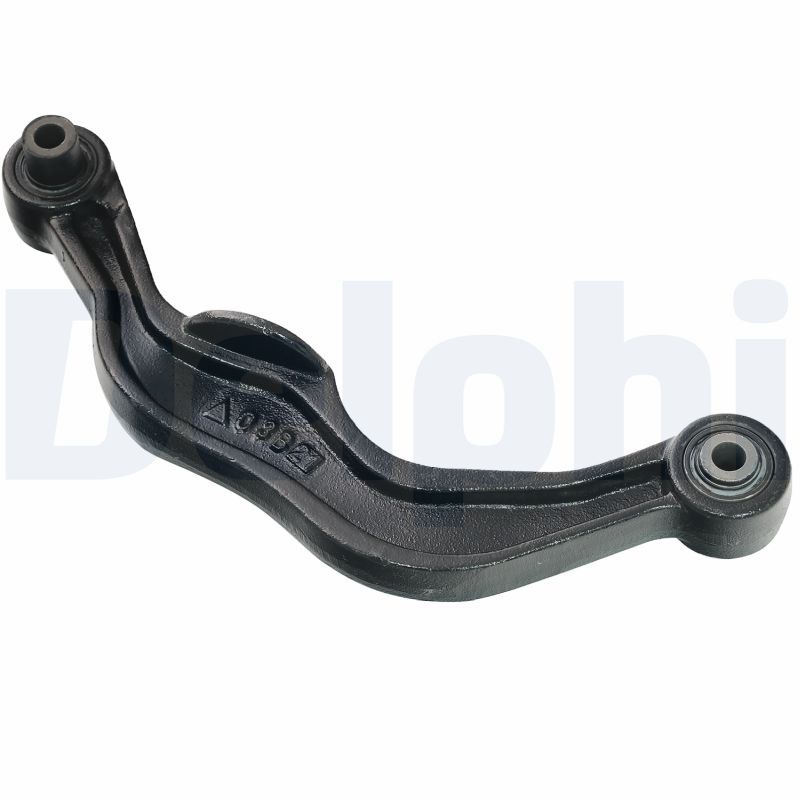

Delphi TC7041 Control/Trailing Arm, wheel suspension - 2

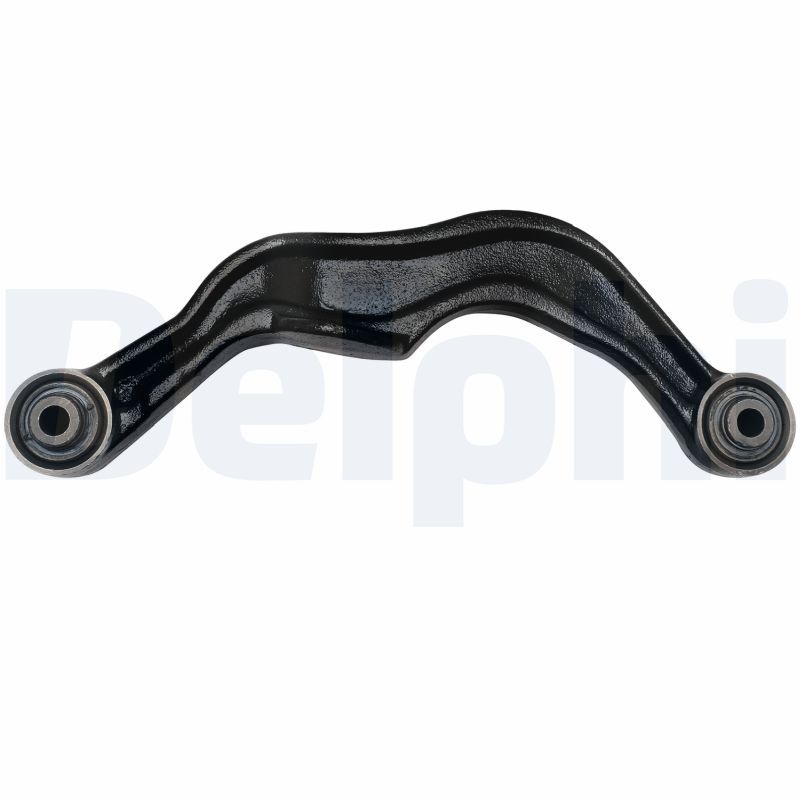

Delphi TC7041 Control/Trailing Arm, wheel suspension - 3
Delphi TC7041 Control/Trailing Arm, wheel suspension video
Delphi TC7041 Control/Trailing Arm, wheel suspension - 1
Delphi TC7041 Control/Trailing Arm, wheel suspension - 2
Delphi TC7041 Control/Trailing Arm, wheel suspension - 3
Delphi TC7041 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC7041 Control/Trailing Arm, wheel suspension

SKU: TC7041
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£72.75 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
LEGACY III (BE)
Description Cylinder Capacity Horse Power Year
2.0 AWD (BE5) 1994 CCM 125 HP 04/1999 - 08/2003
2.5 AWD (BE9) 2457 CCM 156 HP 10/1998 - 08/2003
LEGACY Mk III Estate (BH)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BH9) 2457 CCM 156 HP 12/1998 - 08/2003
2.0 AWD (BH5) 1994 CCM 125 HP 12/1998 - 08/2003
LEGACY IV (BL)
Description Cylinder Capacity Horse Power Year
2.0 AWD (BL5) 1994 CCM 138 HP 09/2003 - 10/2005
2.5 AWD (BL9) 2457 CCM 165 HP 09/2003 - 04/2009
3.0 R AWD (BLE, B13) 3000 CCM 245 HP 09/2003 - 08/2009
2.0 AWD (BL5) 1994 CCM 165 HP 06/2005 - 04/2009
2.0 R AWD (BL5) 1994 CCM 150 HP 09/2007 - 12/2009
2.0 D AWD (BLD) 1998 CCM 150 HP 02/2008 - 12/2009
2.5 i AWD (BL9) 2457 CCM 173 HP 09/2007 - 12/2009
LEGACY IV Estate (BP)
Description Cylinder Capacity Horse Power Year
2.0 AWD (BP5) 1994 CCM 138 HP 09/2003 - 10/2005
2.5 AWD (BP9) 2457 CCM 165 HP 09/2003 - 04/2009
3.0 R AWD (BPE) 3000 CCM 245 HP 09/2003 - 08/2009
2.0 AWD (BP5) 1994 CCM 165 HP 06/2005 - 04/2009
2.5 i AWD (BP9) 2457 CCM 173 HP 01/2008 - 12/2009
2.0 D AWD (BPD) 1998 CCM 150 HP 02/2008 - 12/2009
2.0 R AWD (BP5) 1994 CCM 150 HP 09/2007 - 12/2009
OUTBACK (BP)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BP9) 2457 CCM 165 HP 11/2003 - 09/2009
3.0 AWD (BPE) 3000 CCM 245 HP 11/2003 - 09/2009
2.0 D AWD (BPD) 1998 CCM 150 HP 09/2008 - 09/2009
2.5 AWD (BP9) 2457 CCM 173 HP 09/2008 - 09/2009
2.5 BiFuel AWD 2457 CCM 173 HP 09/2008 - 06/2009

The Delphi TC7041 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records rear axle left, lower, and rear fitting position, cast Steel construction, Control Arm control/trailing arm type, and without ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Rear Axle Left
Fitting Position : Lower
Fitting Position : Rear
Material : Cast Steel
Paired article number : TC7040
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : without ball joint
Length [mm] : 344
Width [mm] : 121
Height [mm] : 70
  • Vendor DELPHI
  • SKU TC7041
  • Barcode 5012759679654
  • SUBARU : 20250AE051 20250AE050 20250AE041 20250AE040
  • APEC : AST3290
  • FEBI BILSTEIN : 101568
  • NAPA : NST3290
  • User manual
