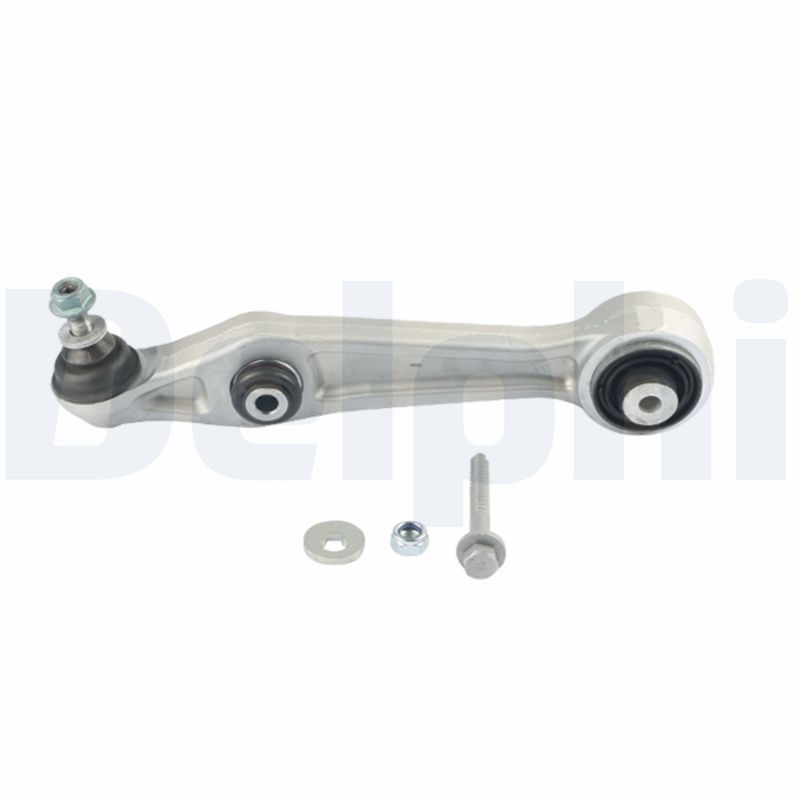

Delphi TC8269 Control/Trailing Arm, wheel suspension - 1

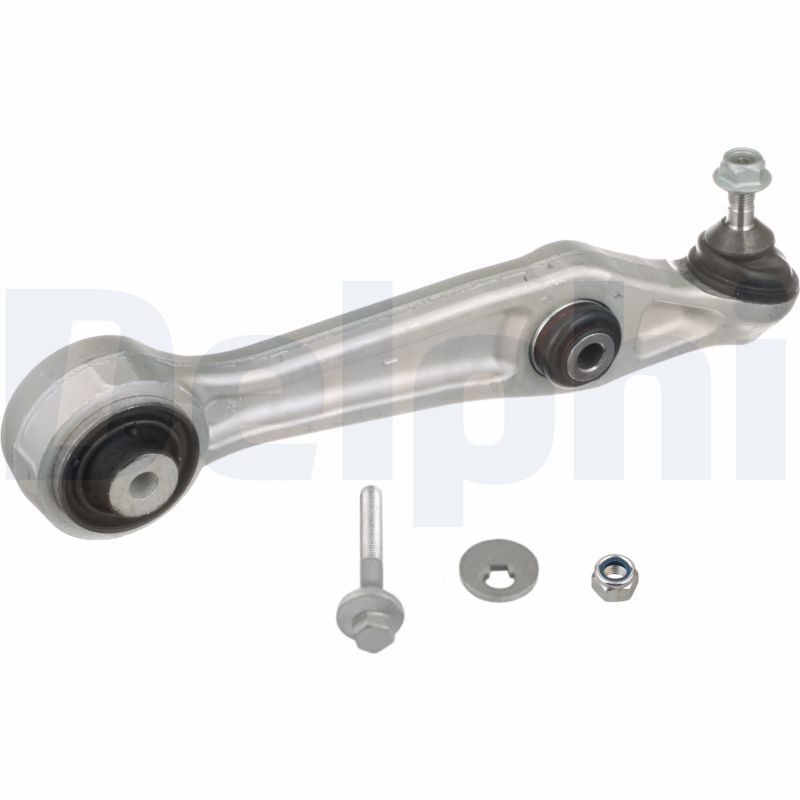

Delphi TC8269 Control/Trailing Arm, wheel suspension - 2

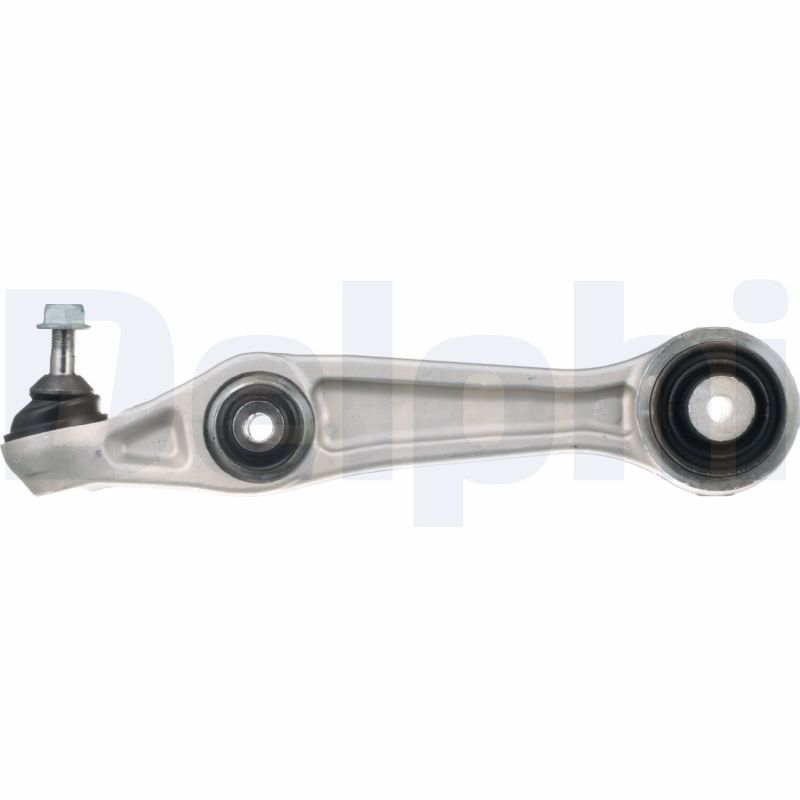

Delphi TC8269 Control/Trailing Arm, wheel suspension - 3

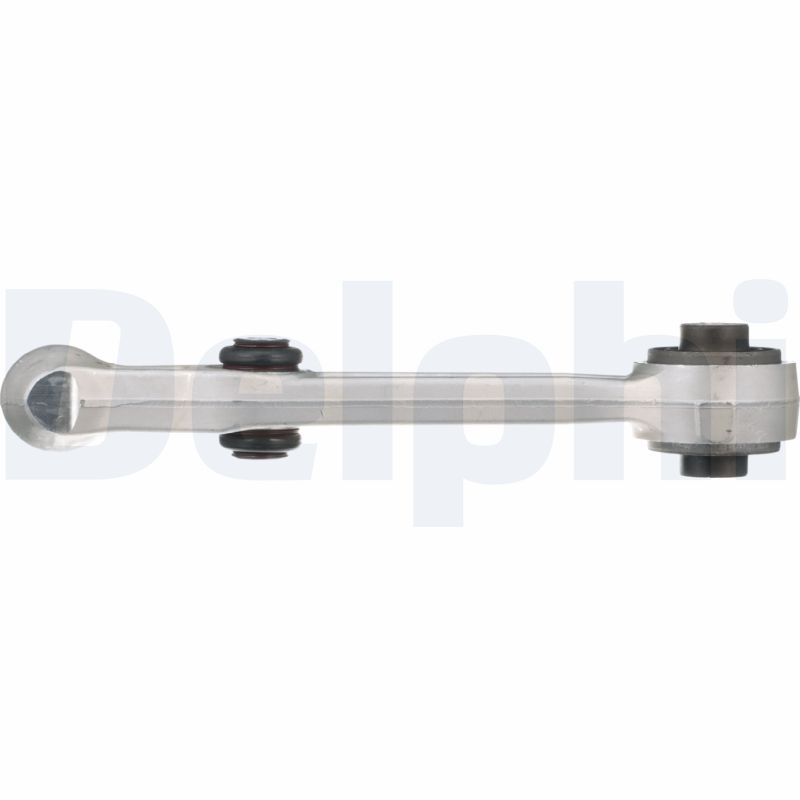

Delphi TC8269 Control/Trailing Arm, wheel suspension - 4

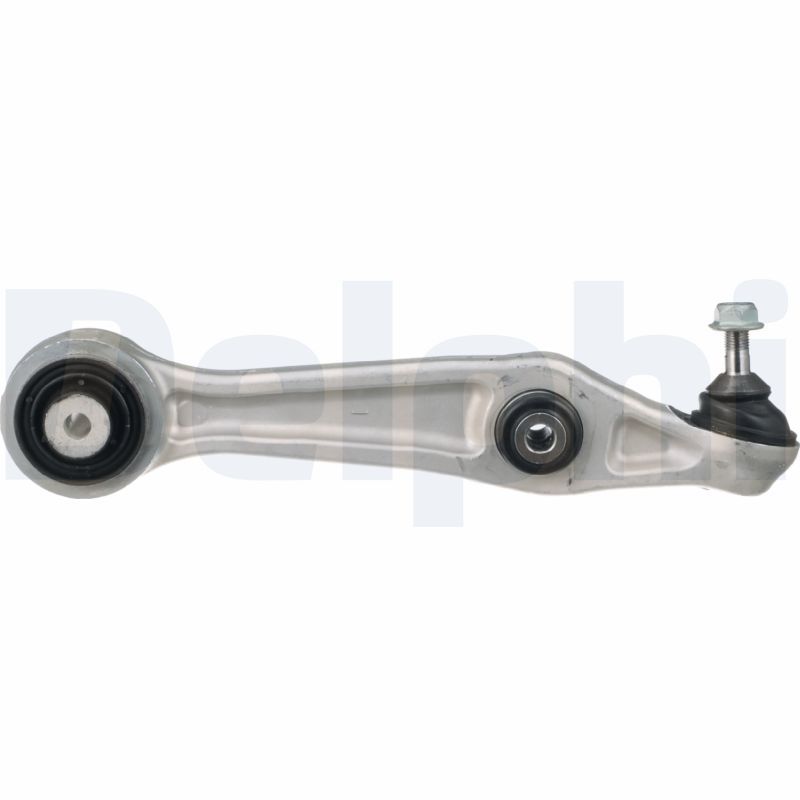

Delphi TC8269 Control/Trailing Arm, wheel suspension - 5

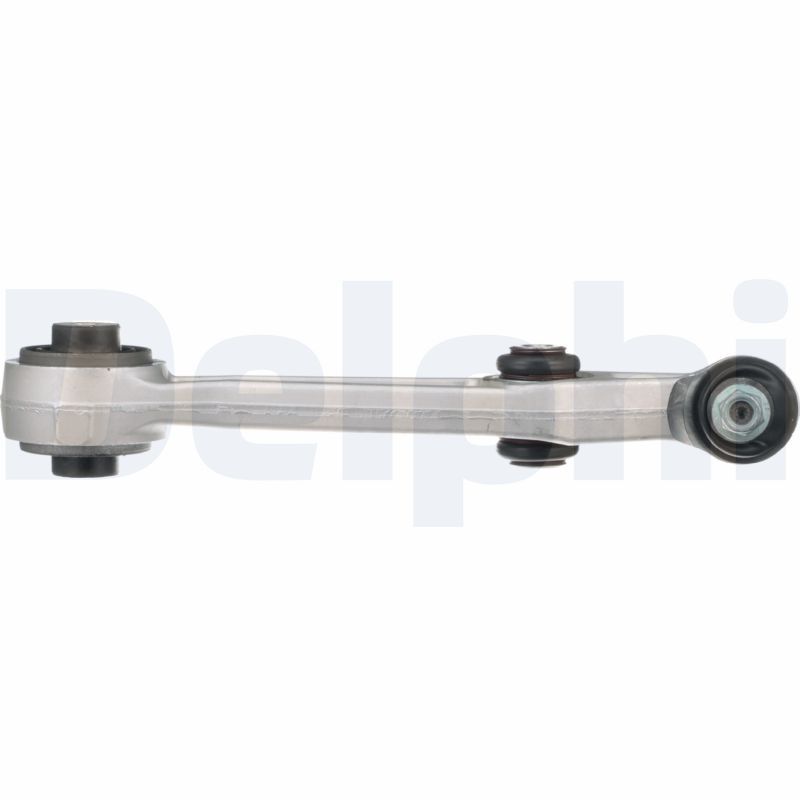

Delphi TC8269 Control/Trailing Arm, wheel suspension - 6
Delphi TC8269 Control/Trailing Arm, wheel suspension video
Delphi TC8269 Control/Trailing Arm, wheel suspension video
Delphi TC8269 Control/Trailing Arm, wheel suspension - 1
Delphi TC8269 Control/Trailing Arm, wheel suspension - 2
Delphi TC8269 Control/Trailing Arm, wheel suspension - 3
Delphi TC8269 Control/Trailing Arm, wheel suspension - 4
Delphi TC8269 Control/Trailing Arm, wheel suspension - 5
Delphi TC8269 Control/Trailing Arm, wheel suspension - 6
Delphi TC8269 Control/Trailing Arm, wheel suspension video
Delphi TC8269 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC8269 Control/Trailing Arm, wheel suspension

SKU: TC8269
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£164.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TESLA
MODEL S
Description Cylinder Capacity Horse Power Year
85 367 HP 09/2012 - 02/2016
P85 421 HP 11/2013 - 12/2014
60 306 HP 11/2013 - 09/2014
85D AWD 376 HP 10/2014 - 02/2016
60D AWD 376 HP 10/2014 - 04/2015
P85D AWD 700 HP 10/2014 - 02/2016
60 385 HP From 10/2014
85 385 HP 02/2015 - 02/2016
70D AWD 334 HP From 04/2015
85D AWD 421 HP 01/2014 - 02/2016
P85D AWD 772 HP 09/2015 - 02/2016
70D AWD 525 HP From 09/2015
85D AWD 525 HP 10/2014 - 02/2016
85 388 HP 09/2012 - 02/2016
70 388 HP From 09/2015
MODEL X
Description Cylinder Capacity Horse Power Year
90D AWD 525 HP From 09/2015
P90D AWD 772 HP From 09/2015
75D AWD 525 HP From 06/2016
P100D AWD 772 HP From 10/2016
60D AWD 525 HP From 06/2016
100D AWD 525 HP From 08/2017
EV AWD 573 HP From 09/2019
EV AWD 670 HP From 01/2021
Plaid AWD 1020 HP From 01/2021
EV AWD 424 HP From 02/2023

The Delphi TC8269 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records front axle, lower, and rear fitting position, aluminium construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Front Axle
Fitting Position : Lower
Fitting Position : Rear
Material : Aluminium
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 422
Width [mm] : 107
Height [mm] : 80
  • Vendor DELPHI
  • SKU TC8269
  • Barcode 5012759571569
  • TESLA : 102735100C 102735100E 104895100A 104895100B 600799700D
  • APEC : AST2809
  • APEC : AST8215
  • BORG & BECK : BCA7740
  • FEBI BILSTEIN : 1003432
  • FEBI BILSTEIN : 175625
  • FIRST LINE : FCA7740
  • LEMFÖRDER : 42629 01
  • MEYLE : 70-16 050 0002
  • MONROE : L89J07
  • NAPA : NST2809
  • NAPA : NST8215
