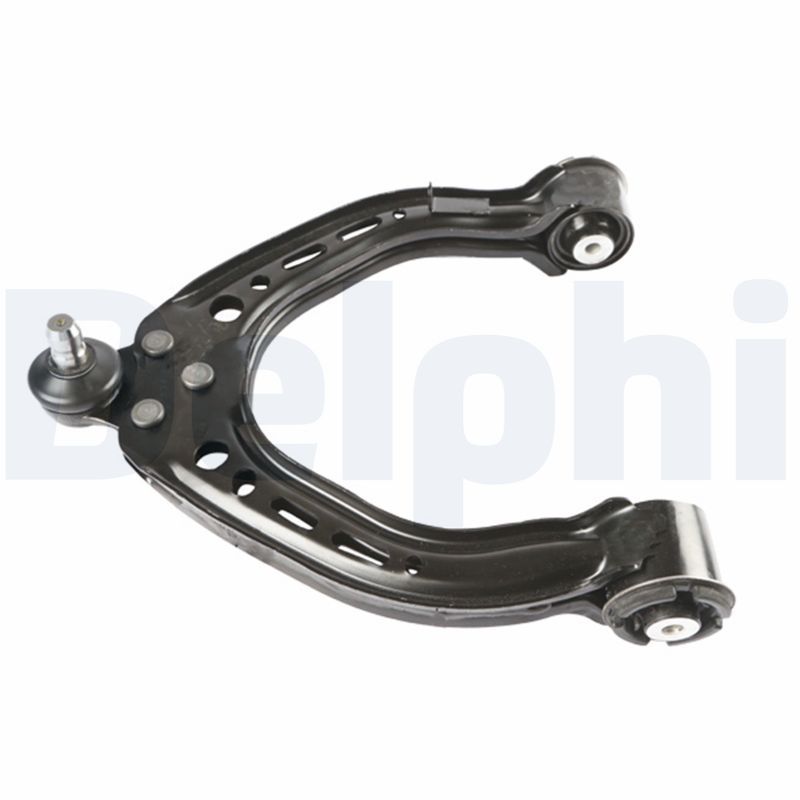

Delphi TC8273 Control/Trailing Arm, wheel suspension - 1

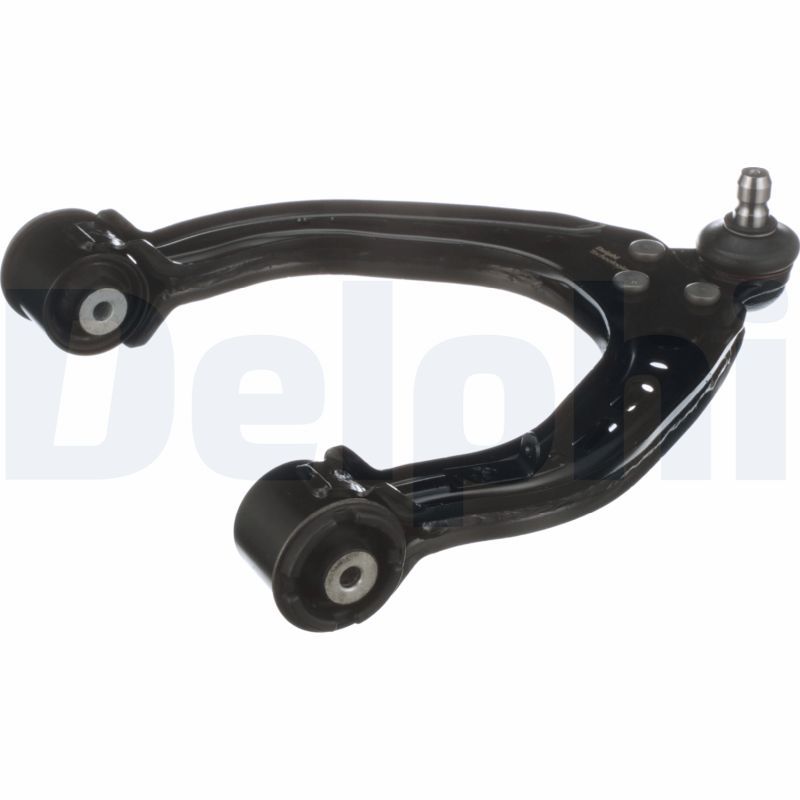

Delphi TC8273 Control/Trailing Arm, wheel suspension - 2

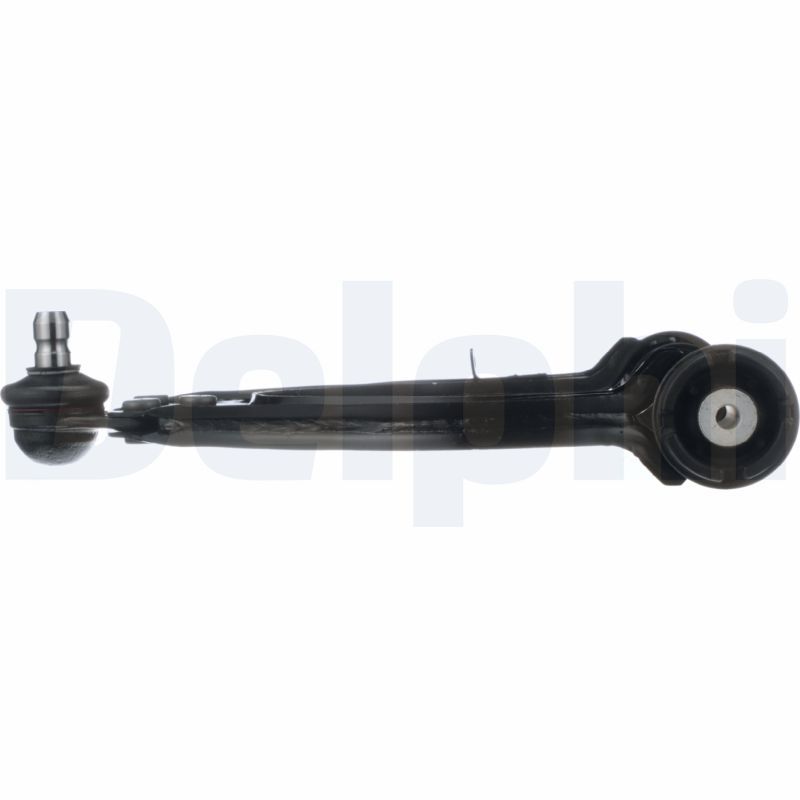

Delphi TC8273 Control/Trailing Arm, wheel suspension - 3
Delphi TC8273 Control/Trailing Arm, wheel suspension - 4

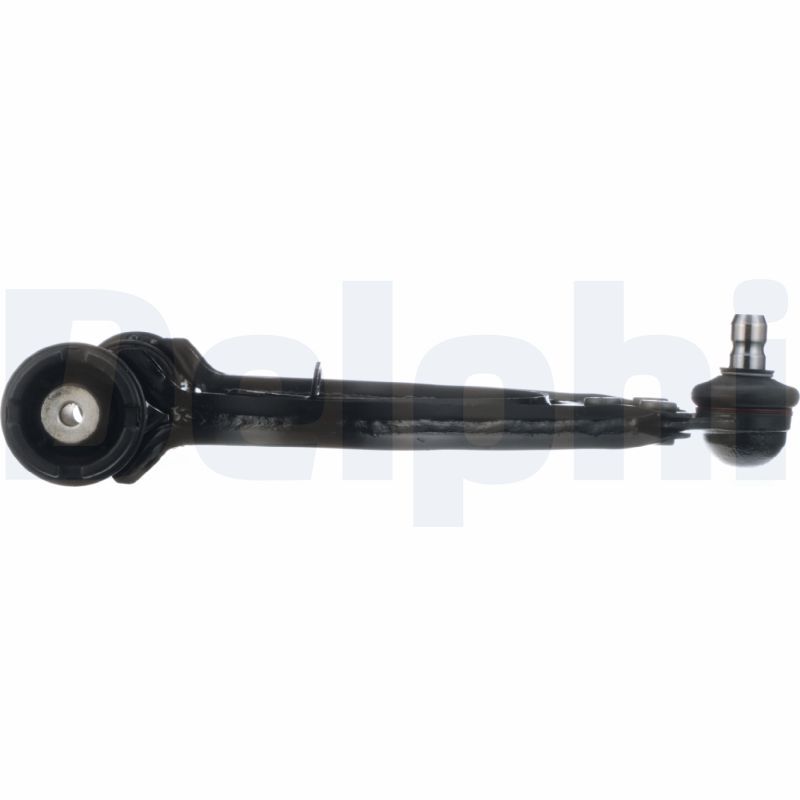

Delphi TC8273 Control/Trailing Arm, wheel suspension - 5
Delphi TC8273 Control/Trailing Arm, wheel suspension - 6
Delphi TC8273 Control/Trailing Arm, wheel suspension video
Delphi TC8273 Control/Trailing Arm, wheel suspension video
Delphi TC8273 Control/Trailing Arm, wheel suspension - 1
Delphi TC8273 Control/Trailing Arm, wheel suspension - 2
Delphi TC8273 Control/Trailing Arm, wheel suspension - 3
Delphi TC8273 Control/Trailing Arm, wheel suspension - 4
Delphi TC8273 Control/Trailing Arm, wheel suspension - 5
Delphi TC8273 Control/Trailing Arm, wheel suspension - 6
Delphi TC8273 Control/Trailing Arm, wheel suspension video
Delphi TC8273 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC8273 Control/Trailing Arm, wheel suspension

SKU: TC8273
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£93.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TESLA
MODEL S
Description Cylinder Capacity Horse Power Year
85 367 HP 09/2012 - 02/2016
P85 421 HP 11/2013 - 12/2014
60 306 HP 11/2013 - 09/2014
85D AWD 376 HP 10/2014 - 02/2016
60D AWD 376 HP 10/2014 - 04/2015
P85D AWD 700 HP 10/2014 - 02/2016
60 385 HP From 10/2014
85 385 HP 02/2015 - 02/2016
70D AWD 334 HP From 04/2015
85D AWD 421 HP 01/2014 - 02/2016
P85D AWD 772 HP 09/2015 - 02/2016
70D AWD 525 HP From 09/2015
85D AWD 525 HP 10/2014 - 02/2016
85 388 HP 09/2012 - 02/2016
70 388 HP From 09/2015

The Delphi TC8273 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records Pinch Bolt 18mm thread size 1, left, upper, and front fitting position, sheet Steel construction, and Control Arm control/trailing arm type. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Thread Size 1 : Pinch Bolt 18mm
Fitting Position : Left
Fitting Position : Upper
Fitting Position : Front
Material : Sheet Steel
Paired article number : TC8272
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 316
Width [mm] : 361
Height [mm] : 86
  • Vendor DELPHI
  • SKU TC8273
  • Barcode 5012759572566
  • TESLA : 104396500A 600653200B 600653200A 104396500B
  • BORG & BECK : BCA7736
  • FEBI BILSTEIN : 1006388
  • FEBI BILSTEIN : 175623
  • FIRST LINE : FCA7736
  • LEMFÖRDER : 42625 01
  • MEYLE : 70-16 050 0003
  • MONROE : L89J12
  • Schaeffler FAG : 821 1330 10
