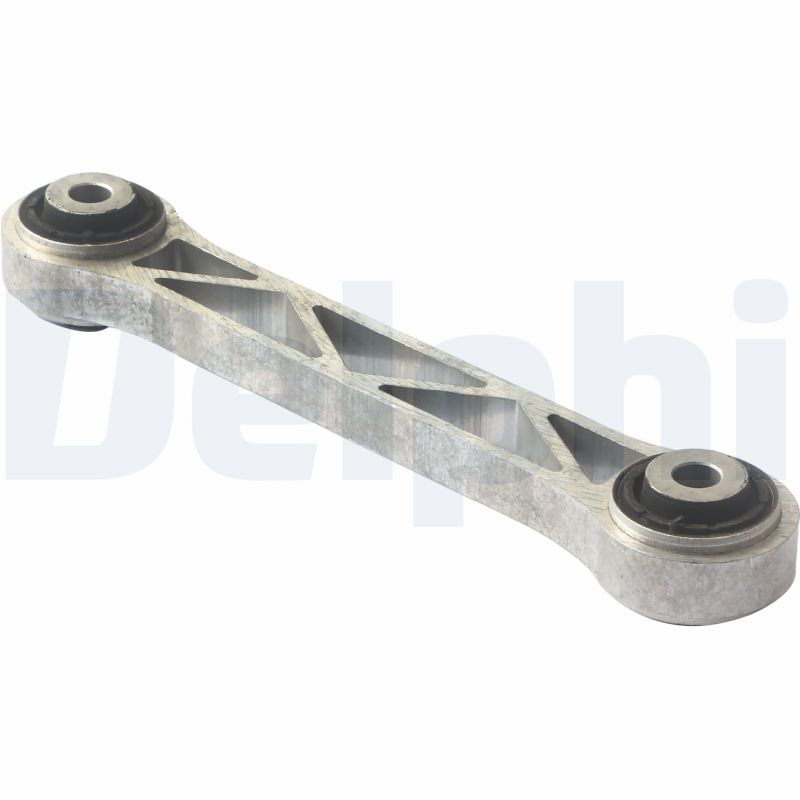

Delphi TC8506 Control/Trailing Arm, wheel suspension - 1

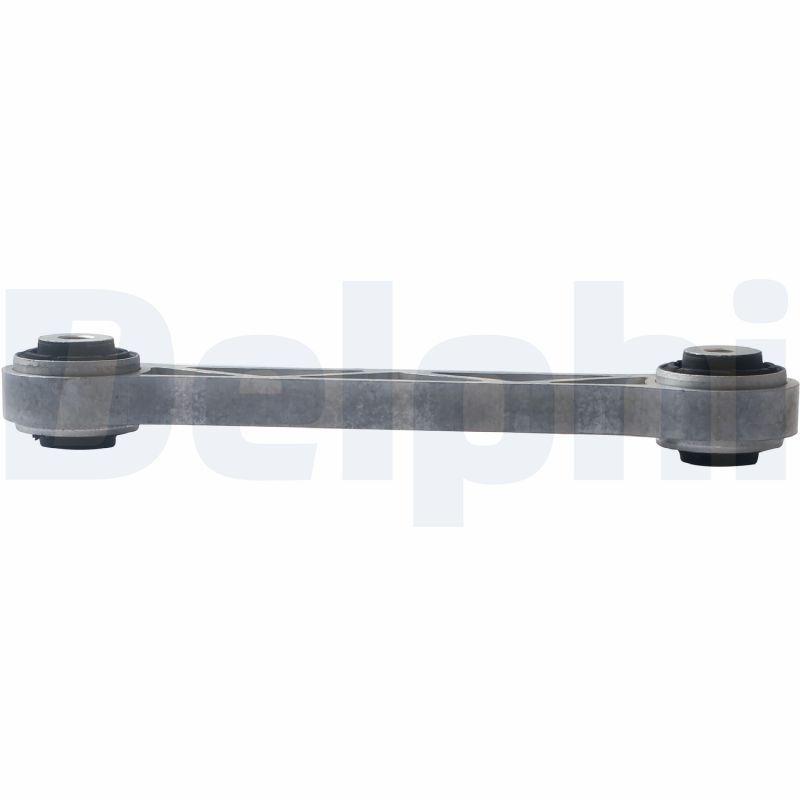

Delphi TC8506 Control/Trailing Arm, wheel suspension - 2

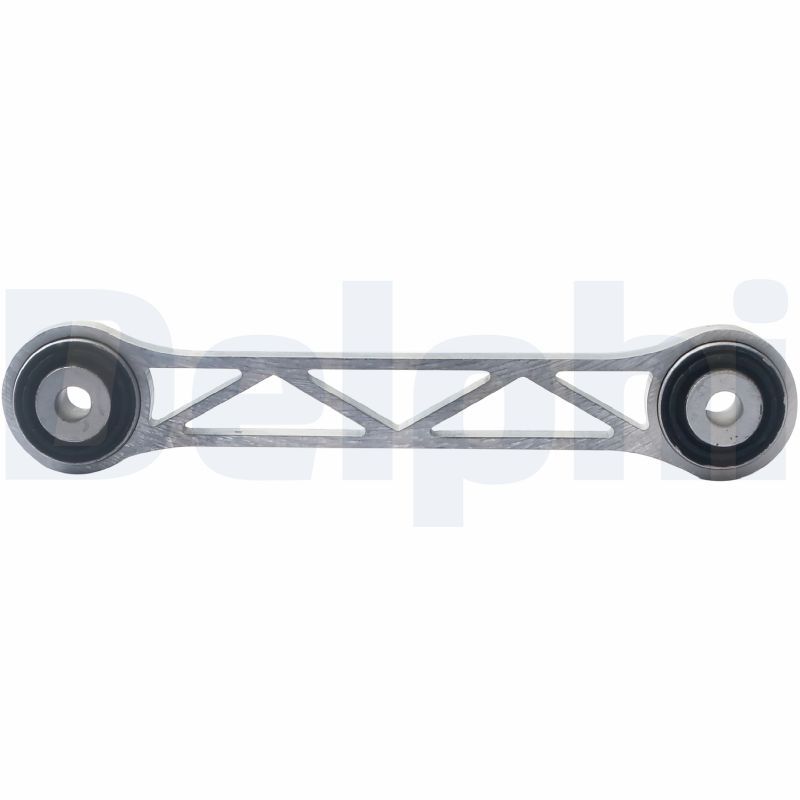

Delphi TC8506 Control/Trailing Arm, wheel suspension - 3

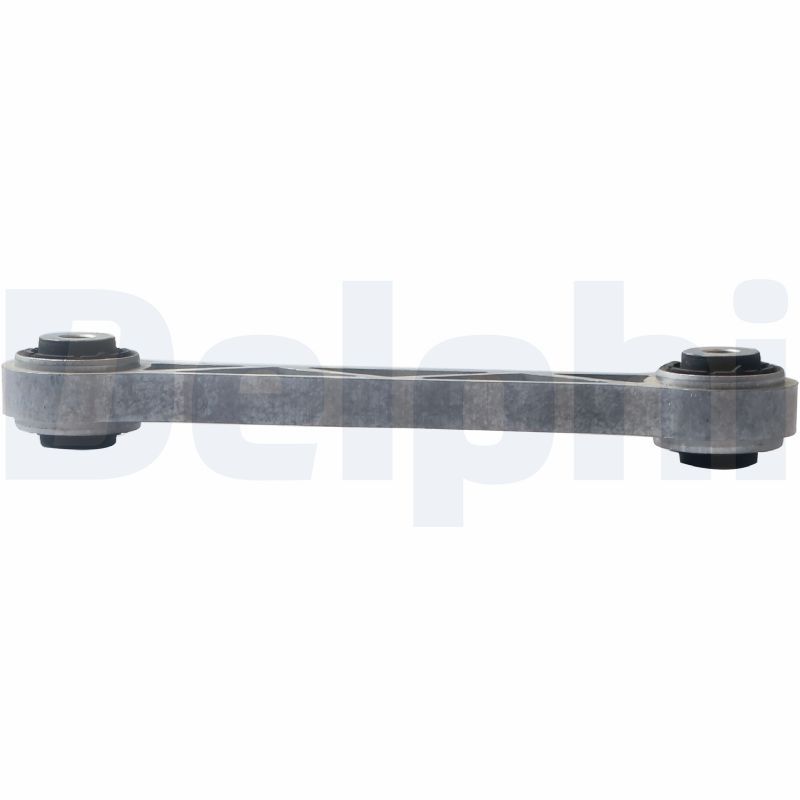

Delphi TC8506 Control/Trailing Arm, wheel suspension - 4

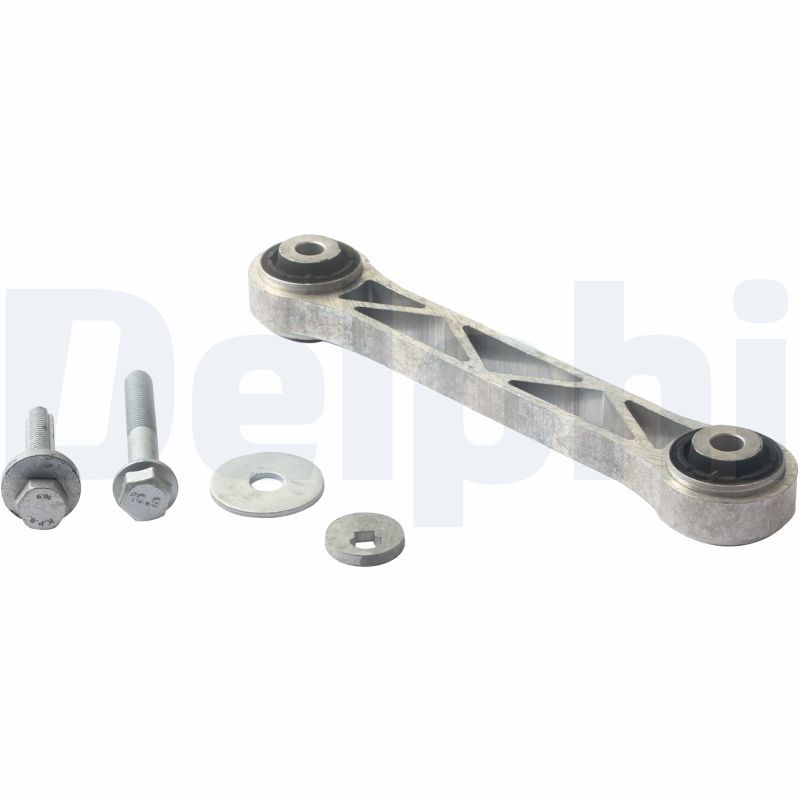

Delphi TC8506 Control/Trailing Arm, wheel suspension - 5

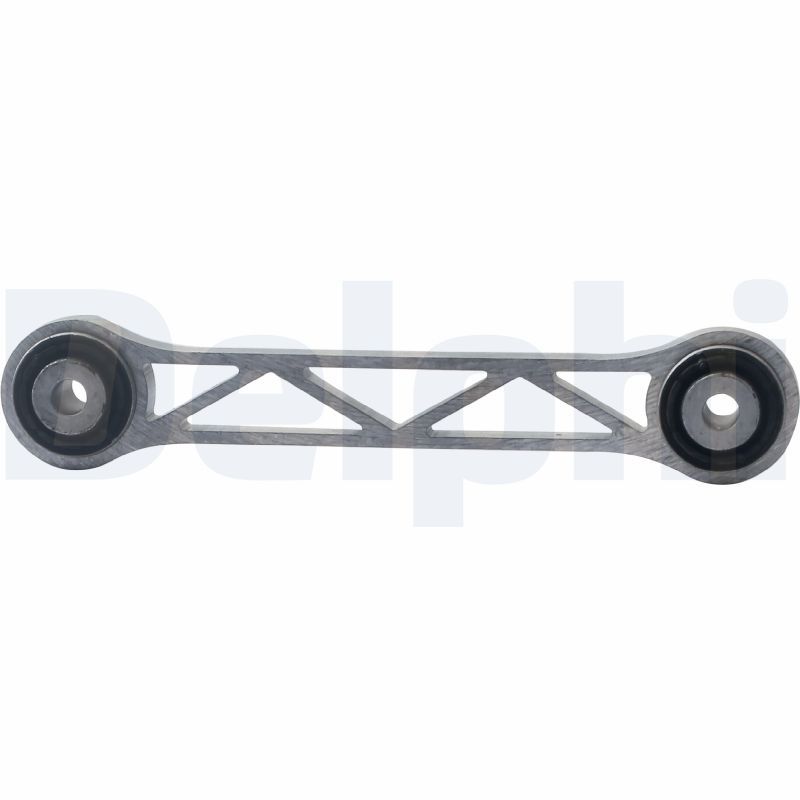

Delphi TC8506 Control/Trailing Arm, wheel suspension - 6

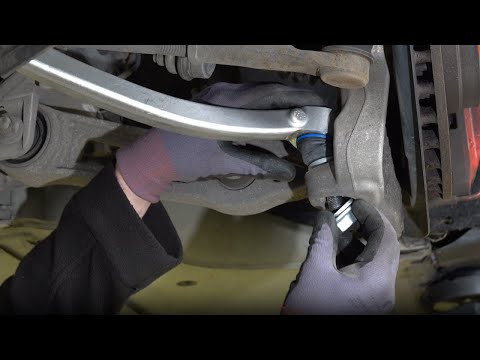

Delphi TC8506 Control/Trailing Arm, wheel suspension video
Delphi TC8506 Control/Trailing Arm, wheel suspension video
Delphi TC8506 Control/Trailing Arm, wheel suspension - 1
Delphi TC8506 Control/Trailing Arm, wheel suspension - 2
Delphi TC8506 Control/Trailing Arm, wheel suspension - 3
Delphi TC8506 Control/Trailing Arm, wheel suspension - 4
Delphi TC8506 Control/Trailing Arm, wheel suspension - 5
Delphi TC8506 Control/Trailing Arm, wheel suspension - 6
Delphi TC8506 Control/Trailing Arm, wheel suspension video
Delphi TC8506 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC8506 Control/Trailing Arm, wheel suspension

SKU: TC8506
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£74.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TESLA
MODEL S
Description Cylinder Capacity Horse Power Year
85 367 HP 09/2012 - 02/2016
P85 421 HP 11/2013 - 12/2014
60 306 HP 11/2013 - 09/2014
60D AWD 376 HP 10/2014 - 04/2015
60 385 HP From 10/2014
85 385 HP 02/2015 - 02/2016
P85D AWD 772 HP 09/2015 - 02/2016
70D AWD 525 HP From 09/2015
85D AWD 525 HP 10/2014 - 02/2016
85 388 HP 09/2012 - 02/2016
70 388 HP From 09/2015
MODEL X
Description Cylinder Capacity Horse Power Year
90D AWD 525 HP From 09/2015
P90D AWD 772 HP From 09/2015
75D AWD 525 HP From 06/2016
P100D AWD 772 HP From 10/2016
60D AWD 525 HP From 06/2016
100D AWD 525 HP From 08/2017
EV AWD 573 HP From 09/2019
EV AWD 670 HP From 01/2021
Plaid AWD 1020 HP From 01/2021

The Delphi TC8506 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records rear axle and rear fitting position, aluminium construction, Control Arm control/trailing arm type, and without ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Rear Axle
Fitting Position : Rear
Material : Aluminium
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : without ball joint
Length [mm] : 278
Width [mm] : 53
Height [mm] : 38
  • Vendor DELPHI
  • SKU TC8506
  • Barcode 5012759624708
  • TESLA : 102142000A 102142000B
  • FEBI BILSTEIN : 179649
  • FEBI BILSTEIN : 197922
  • MEYLE : 70-16 050 0019
