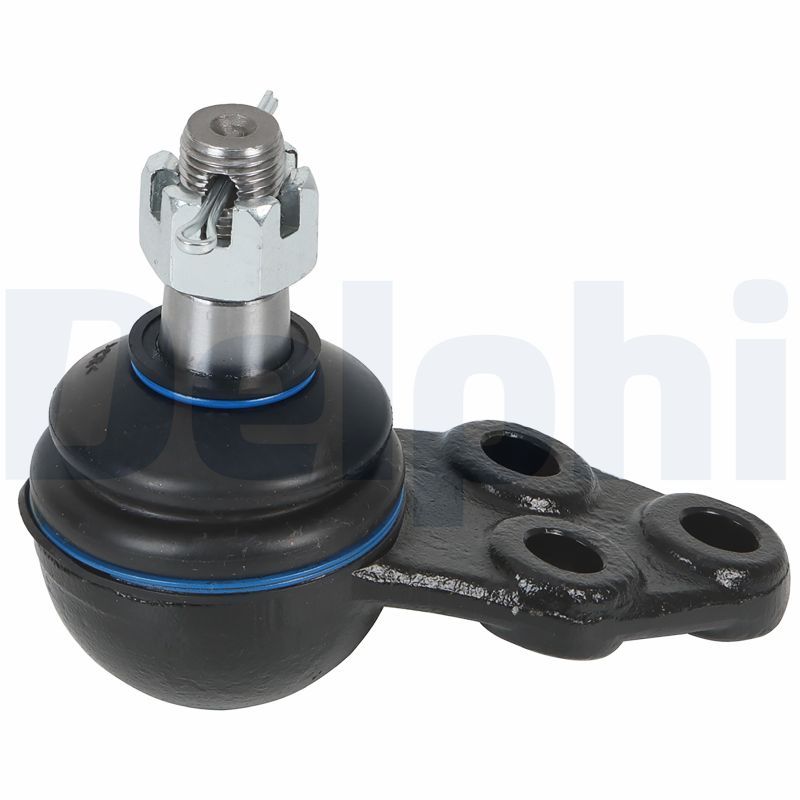

Delphi TC8543 Ball Joint - 1

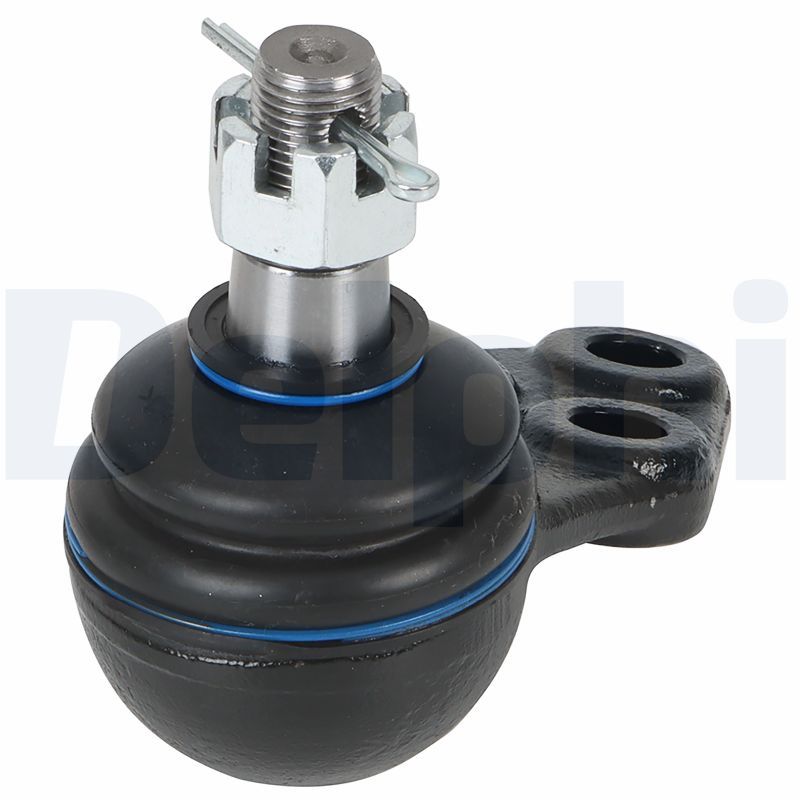

Delphi TC8543 Ball Joint - 2

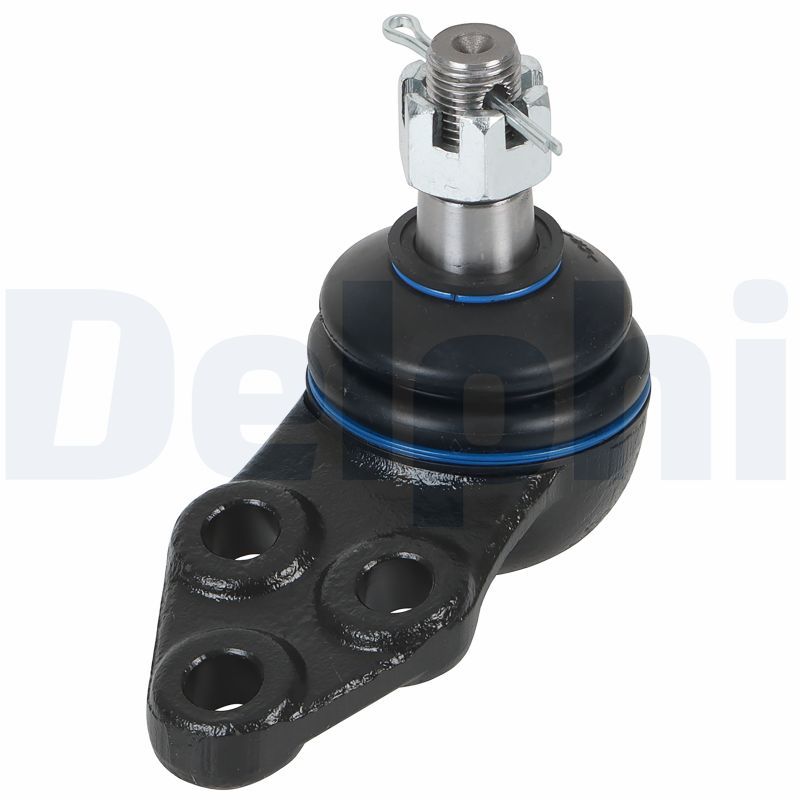

Delphi TC8543 Ball Joint - 3

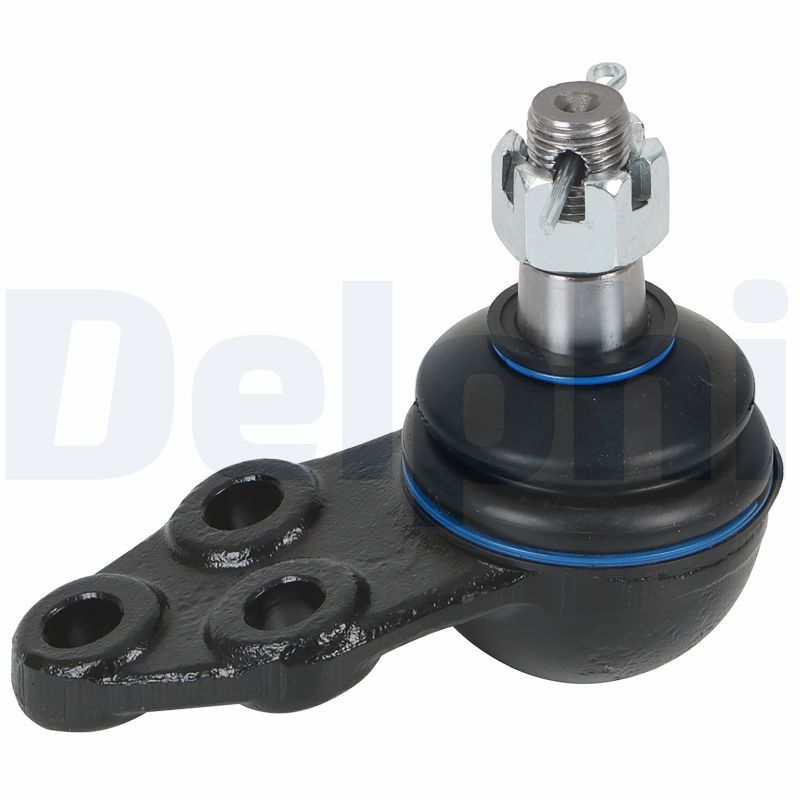

Delphi TC8543 Ball Joint - 4

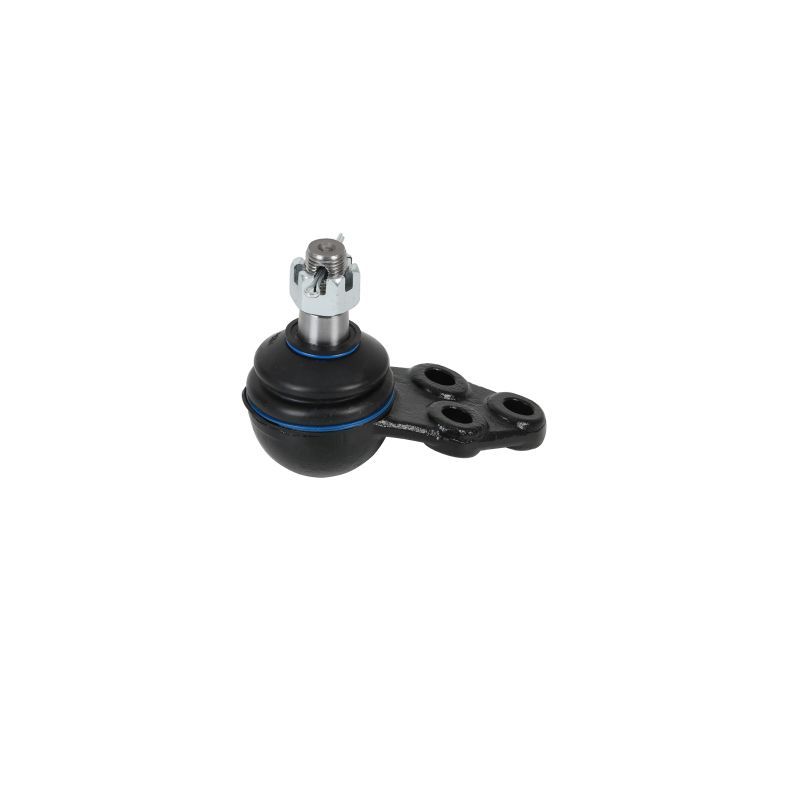

Delphi TC8543 Ball Joint - 5

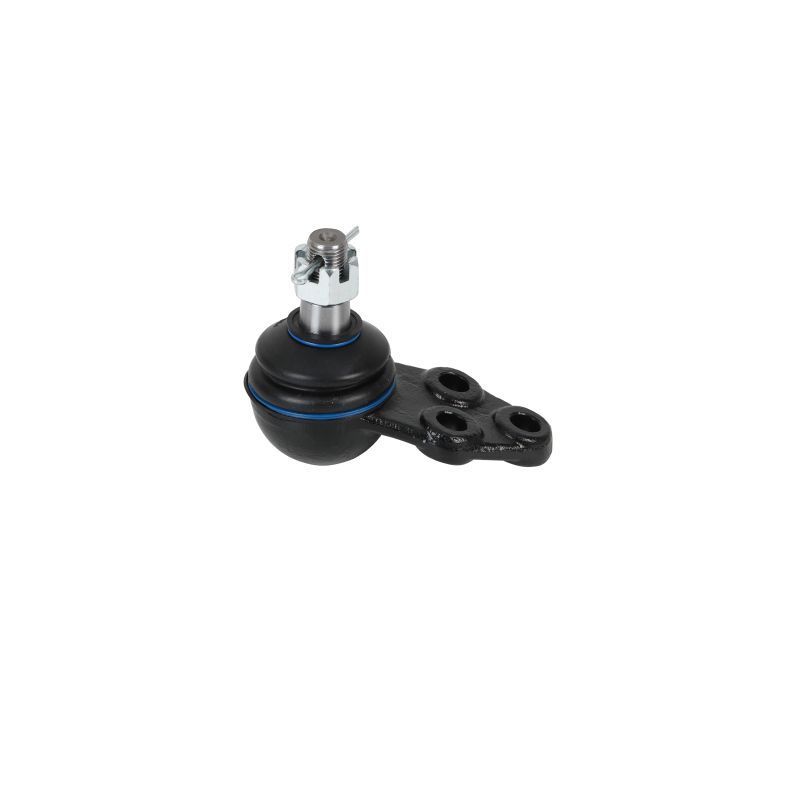

Delphi TC8543 Ball Joint - 6
DELPHI

Delphi TC8543 Ball Joint

SKU: TC8543
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£32.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SSANGYONG
ACTYON II
Description Cylinder Capacity Horse Power Year
2.0 XDi 1998 CCM 150 HP From 08/2012
2.0 XDi 4x4 1998 CCM 150 HP From 08/2012
2.0 XDi 1998 CCM 175 HP From 08/2012
2.0 XDi 4x4 1998 CCM 175 HP From 03/2013
KORANDO (CK)
Description Cylinder Capacity Horse Power Year
2.0 e-XDi 1998 CCM 175 HP From 11/2010
2.0 e-XDi 4WD 1998 CCM 175 HP From 11/2010
2.0 e-XDi 1998 CCM 150 HP From 02/2012
2.0 e-XDi 4WD 1998 CCM 150 HP From 02/2012
2.0 1998 CCM 150 HP From 02/2012
2.0 4WD 1998 CCM 150 HP From 02/2012
2.2 Xdi 2157 CCM 178 HP From 07/2015
2.2 Xdi 4WD 2157 CCM 178 HP From 07/2015
2.0 e-XGi 1998 CCM 147 HP From 02/2012
KORANDO VAN
Description Cylinder Capacity Horse Power Year
2.0 e-XDi 1998 CCM 175 HP From 11/2010
2.0 e-XDi 4WD 1998 CCM 175 HP From 11/2010
2.2 e-XDi 2157 CCM 178 HP From 07/2015
2.2 e-XDi 4WD 2157 CCM 178 HP From 07/2015
MUSSO II
Description Cylinder Capacity Horse Power Year
2.0 Xdi 1998 CCM 155 HP From 01/2012

The Delphi TC8543 Ball Joint is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16 x 1,50 x 24,5 thread size, 122 mm length, 58 mm width, and front axle, outer, and lower fitting position. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Ball Joint
Thread Size : M16 x 1,50 x 24,5
Length [mm] : 122
Width [mm] : 58
Height [mm] : 97
Fitting Position : Front Axle
Fitting Position : outer
Fitting Position : Lower
  • Vendor DELPHI
  • SKU TC8543
  • Barcode 5012759625071
  • SSANGYONG : 4451834001 4451834000
  • MONROE : L21J04
