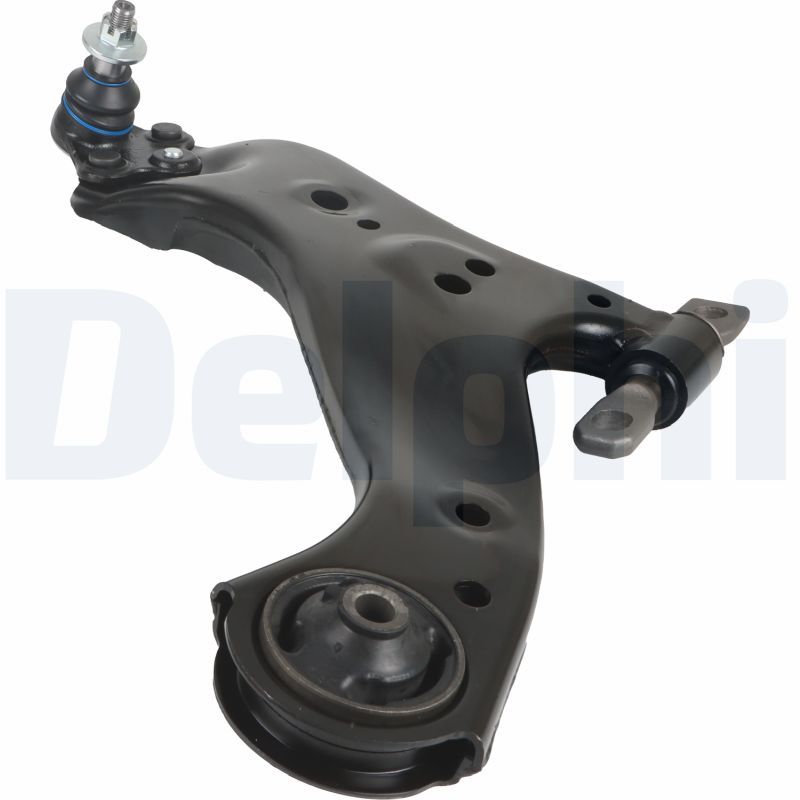

Delphi TC8791 Control/Trailing Arm, wheel suspension - 1

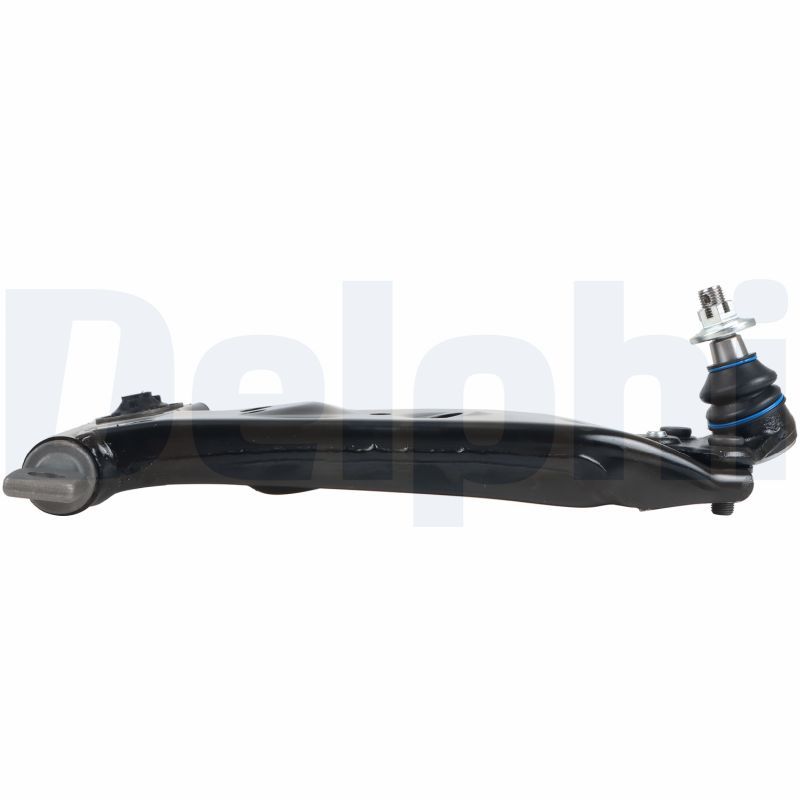

Delphi TC8791 Control/Trailing Arm, wheel suspension - 2

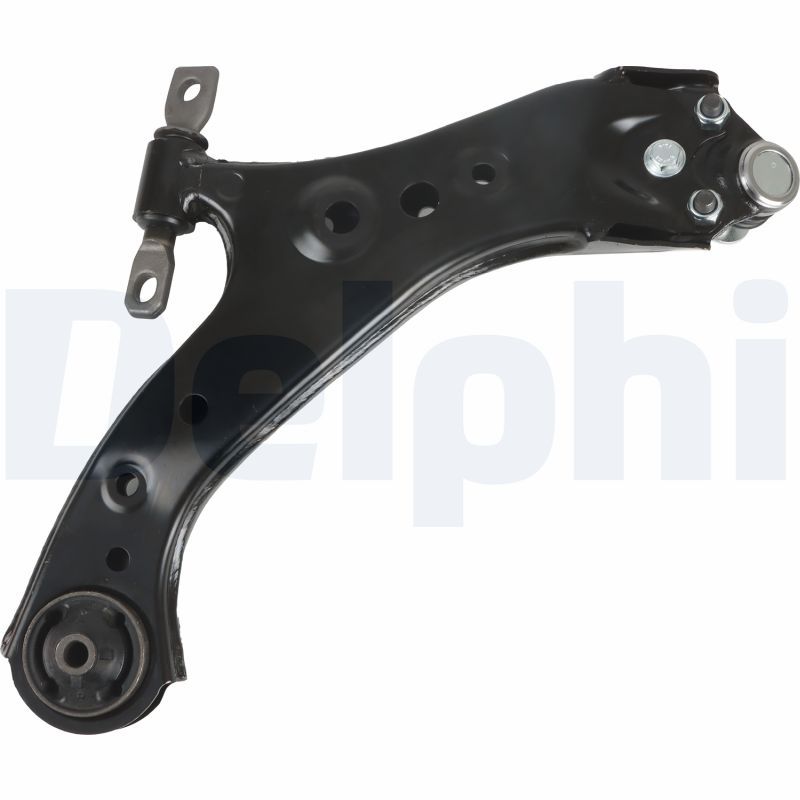

Delphi TC8791 Control/Trailing Arm, wheel suspension - 3
Delphi TC8791 Control/Trailing Arm, wheel suspension - 4
Delphi TC8791 Control/Trailing Arm, wheel suspension - 5

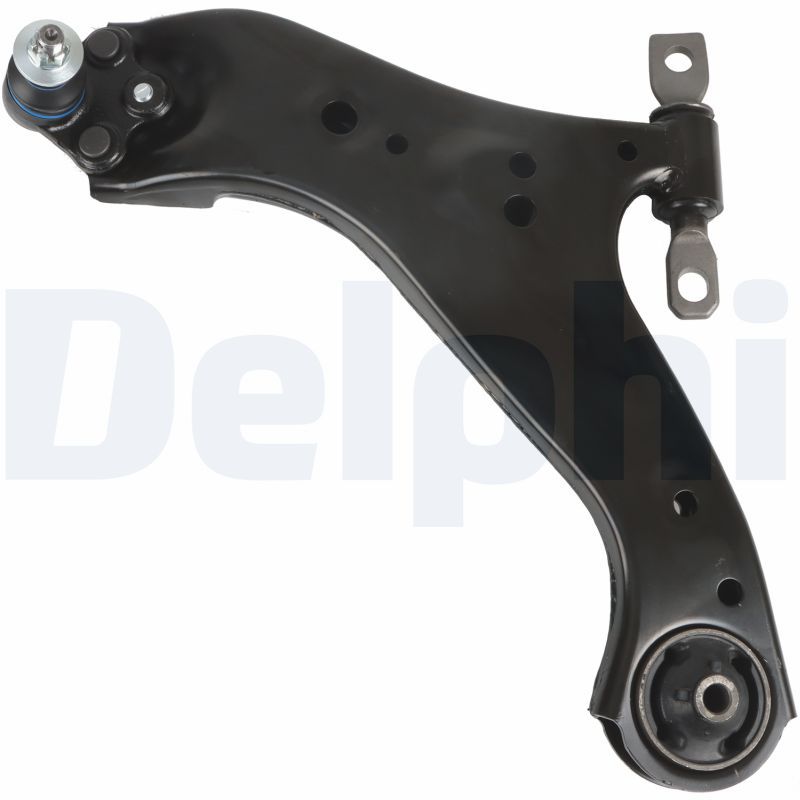

Delphi TC8791 Control/Trailing Arm, wheel suspension - 6
Delphi TC8791 Control/Trailing Arm, wheel suspension video
Delphi TC8791 Control/Trailing Arm, wheel suspension - 1
Delphi TC8791 Control/Trailing Arm, wheel suspension - 2
Delphi TC8791 Control/Trailing Arm, wheel suspension - 3
Delphi TC8791 Control/Trailing Arm, wheel suspension - 4
Delphi TC8791 Control/Trailing Arm, wheel suspension - 5
Delphi TC8791 Control/Trailing Arm, wheel suspension - 6
Delphi TC8791 Control/Trailing Arm, wheel suspension video
DELPHI

Delphi TC8791 Control/Trailing Arm, wheel suspension

SKU: TC8791
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£123.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TOYOTA
RAV 4 V (_A5_, _H5_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXAH52) 2487 CCM 218 HP From 12/2018
2.0 (MXAA52) 1987 CCM 175 HP From 12/2018
2.0 AWD (MXAA54) 1987 CCM 175 HP From 12/2018
2.0 VVTi (MXAA52) 1987 CCM 173 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 173 HP From 02/2019
2.0 VVTi (MXAA52) 1987 CCM 150 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 150 HP From 12/2018
2.5 VVTi AWD (AXAA54) 2487 CCM 203 HP From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54) 2487 CCM 222 HP From 12/2018
2.5 Hybrid AWD (AXAP54, AXAP54L) 2487 CCM 306 HP From 09/2020
LEXUS
NX II (_A2_, _H2_)
Description Cylinder Capacity Horse Power Year
350h (AAZH20) 2487 CCM 243 HP From 09/2021
350h E-Four (AAZH25) 2487 CCM 243 HP From 09/2021
450h+ E-Four (AAZH26) 2487 CCM 309 HP From 09/2021

The Delphi TC8791 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14 x 1,50 thread size 1, front axle left fitting position, sheet Steel construction, and Control Arm control/trailing arm type. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Thread Size 1 : M14 x 1,50
Fitting Position : Front Axle Left
Material : Sheet Steel
Paired article number : TC8790
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 438
Width [mm] : 425
Height [mm] : 115
  • Vendor DELPHI
  • SKU TC8791
  • Barcode 5012759639009
  • TOYOTA : 4806942070
  • LEXUS : 4806942070
  • BORG & BECK : BCA8083
  • FIRST LINE : FCA8083
