DELPHI

Delphi TC8809 Control/Trailing Arm, wheel suspension

SKU: TC8809
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£119.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BP_)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5S, BP6S) 1496 CCM 120 HP From 11/2018
2.0 SKYACTIV-X M Hybrid (BP2S) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
2.5 e-SKYACTIV-G (BP5S) 2488 CCM 140 HP From 06/2024
3 Hatchback (BP)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
1.5 SKYACTIV-G (BP5H, BP6H) 1496 CCM 120 HP From 06/2019
SKYACTIV-X M Hybrid (BP2H) 1998 CCM 179 HP From 06/2019
SKYACTIV-X M Hybrid AWD (BP2H) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G (BP5H, BP6H) 1998 CCM 150 HP From 11/2018
2.0 SKYACTIV-G M Hybrid 1998 CCM 150 HP From 01/2020
SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 02/2021
2.5 e-SKYACTIV-G (BP5H) 2488 CCM 140 HP From 06/2024

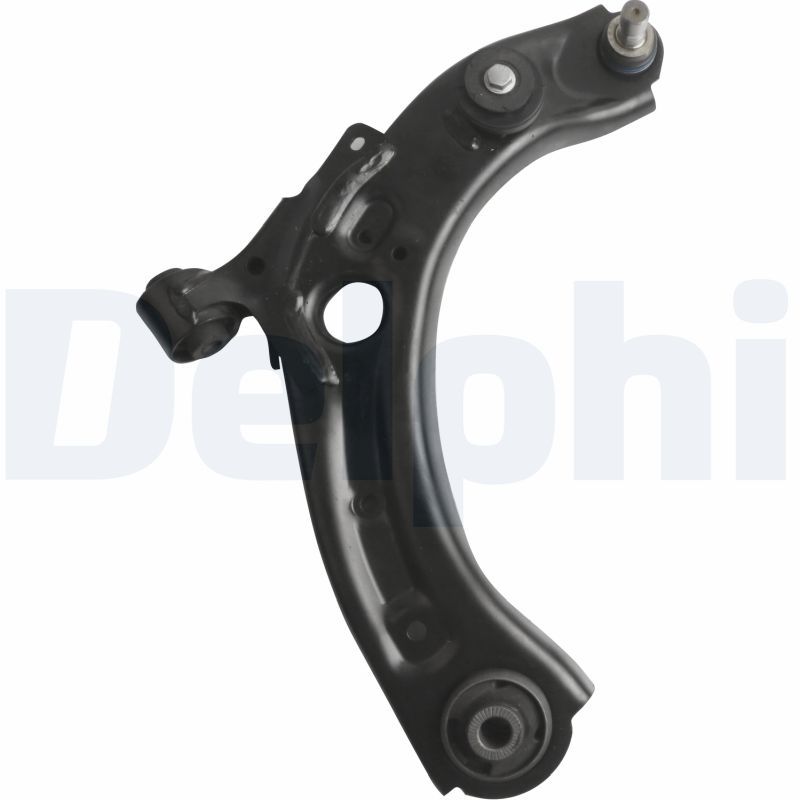

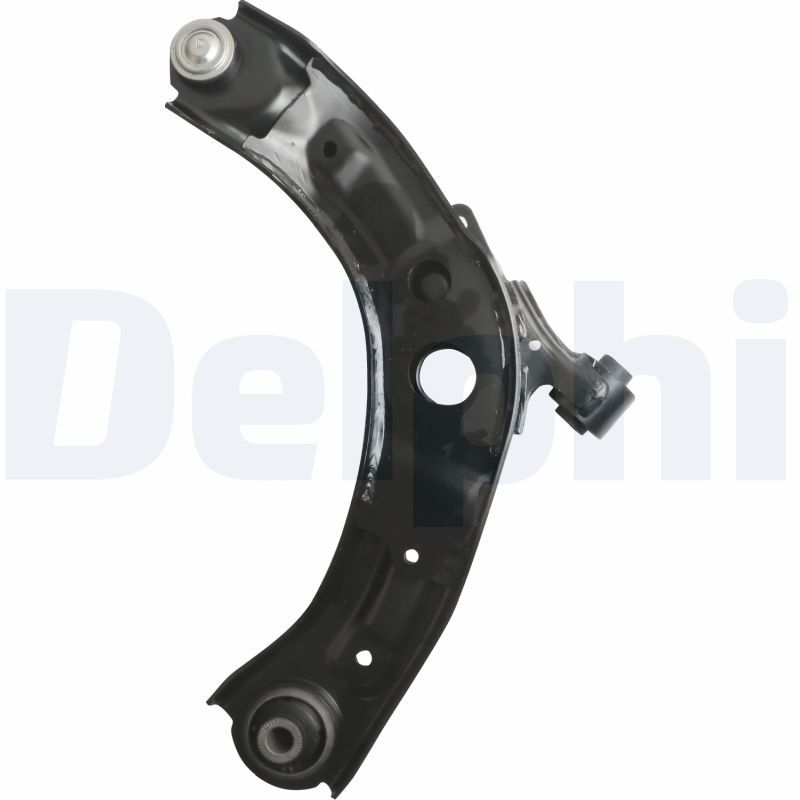

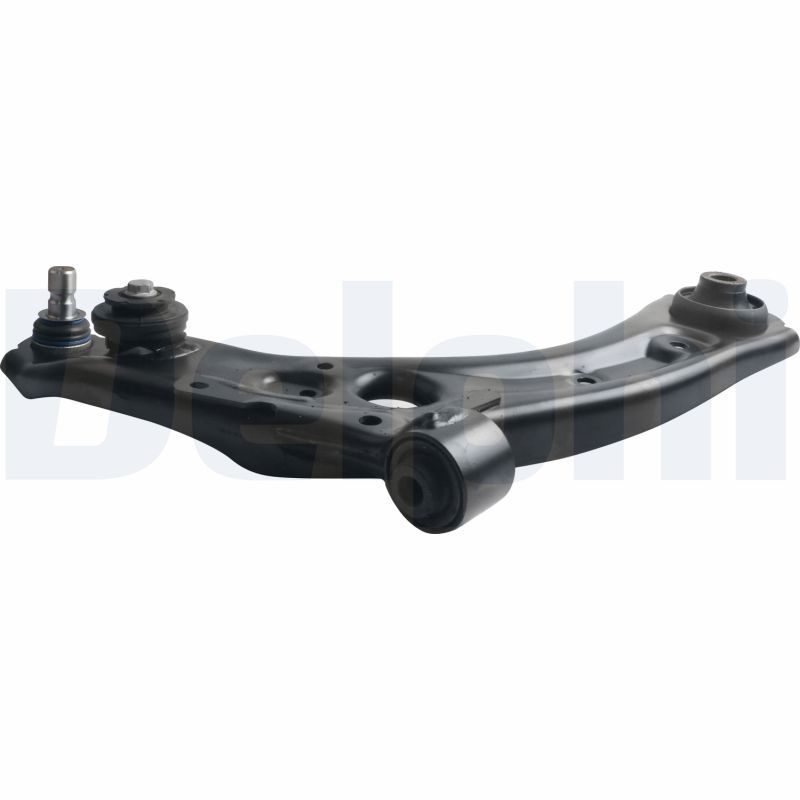

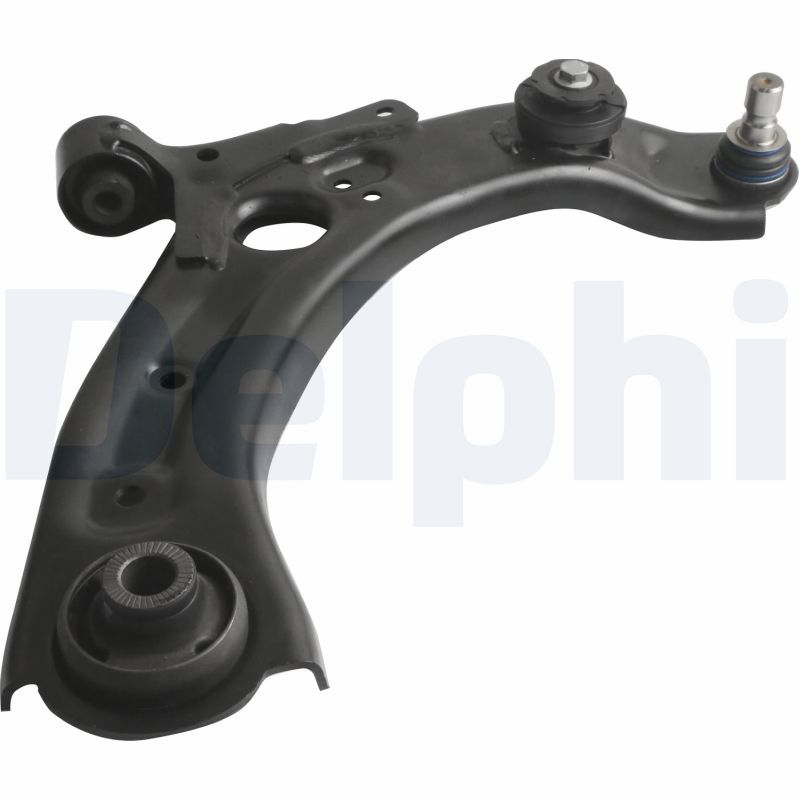

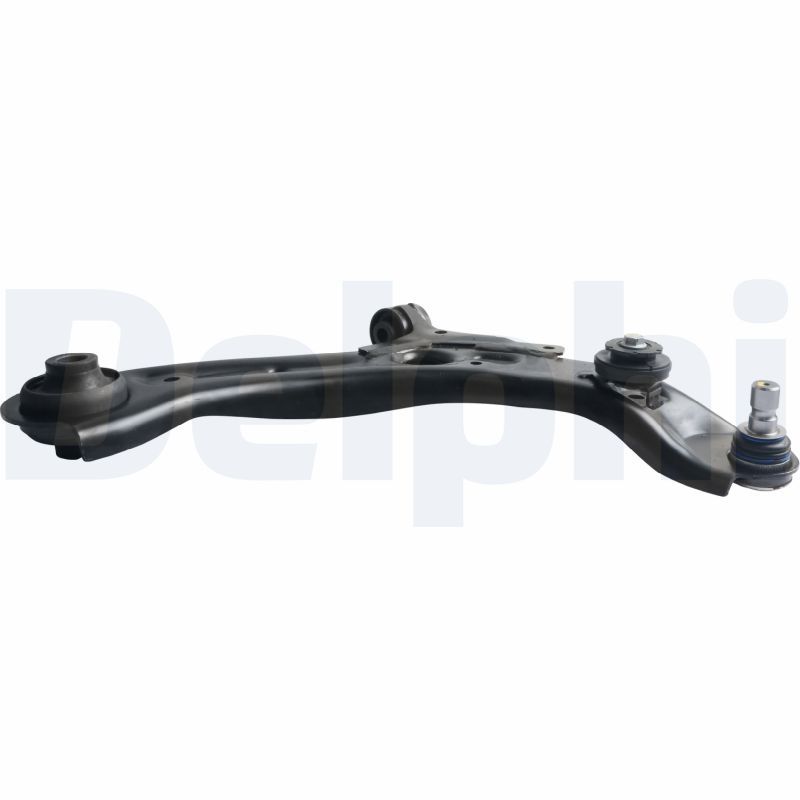

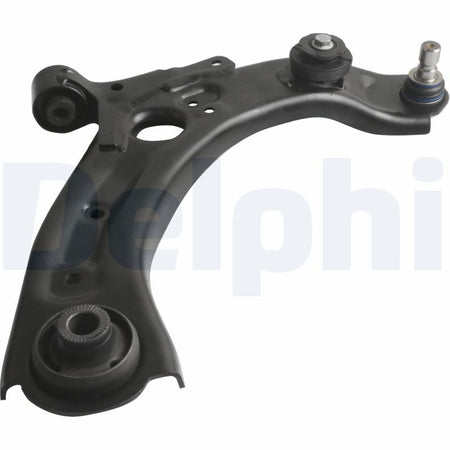

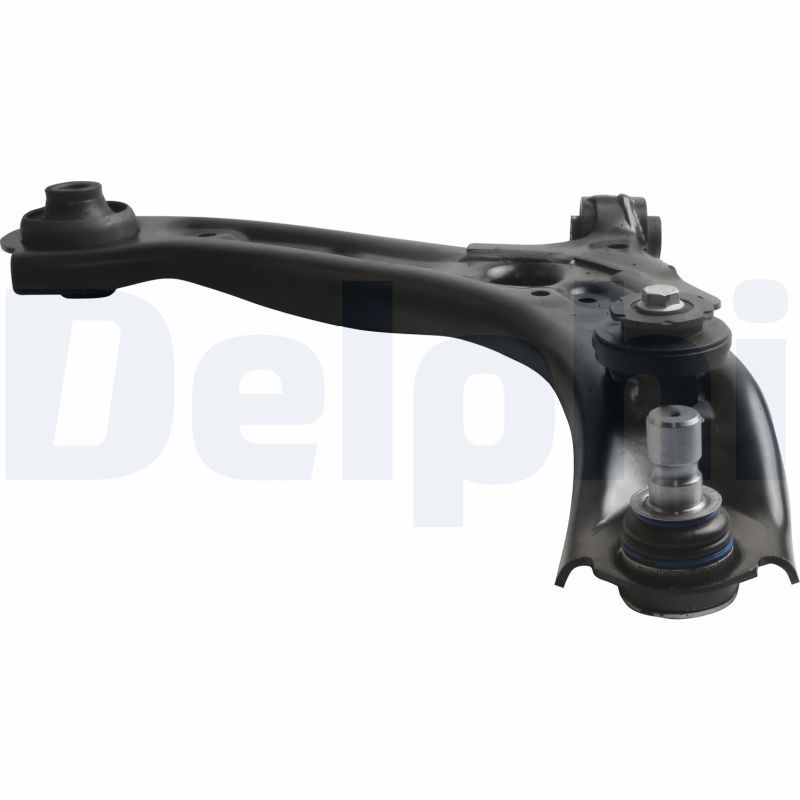

The Delphi TC8809 Control/Trailing Arm, wheel suspension is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records right, lower, and front fitting position, sheet Steel construction, Control Arm control/trailing arm type, and with ball joint. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Control/Trailing Arm, wheel suspension
Fitting Position : Right
Fitting Position : Lower
Fitting Position : Front
Material : Sheet Steel
Paired article number : TC8810
Control/Trailing Arm Type : Control Arm
Supplementary Article/Supplementary Info 2 : with ball joint
Length [mm] : 460
Width [mm] : 440
Height [mm] : 100
  • Vendor DELPHI
  • SKU TC8809
  • Barcode 5012759817735
  • MAZDA : BCKE34300E BCKE34300F BCKE34300G BCKE34300H BDER34300A BDNF34300B BDNF34300C BDNG34300
  • BORG & BECK : BCA8080
  • FIRST LINE : FCA8080
