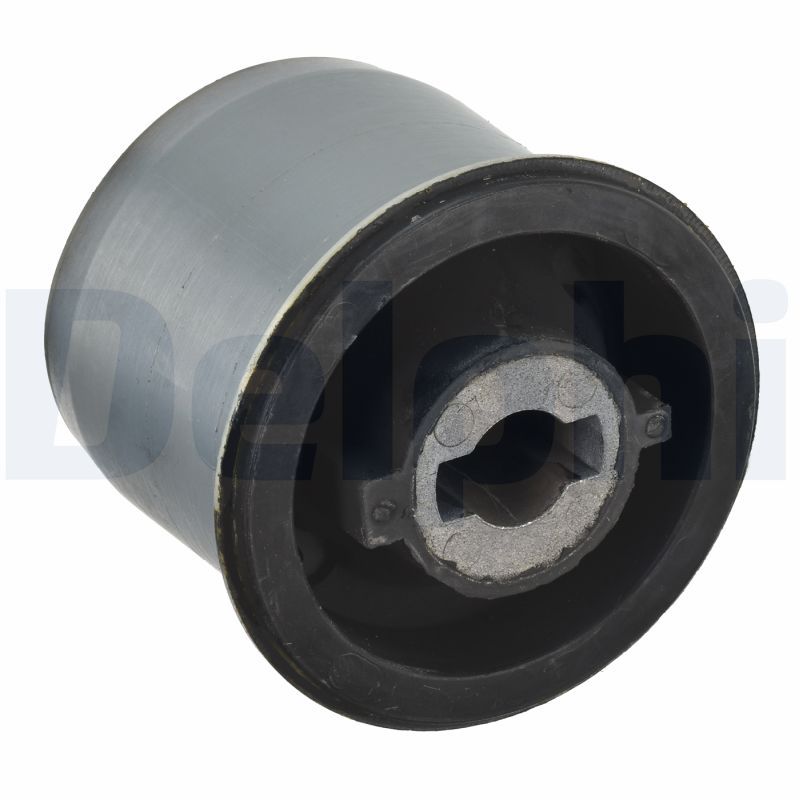

Delphi TD1157W Bushing, axle beam - 1
Delphi TD1157W Bushing, axle beam - 1
DELPHI

Delphi TD1157W Bushing, axle beam

SKU: TD1157W
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£25.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

CITROËN
C4 I (LC_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1360 CCM 88 HP 11/2004 - 07/2011
1.6 16V 1587 CCM 109 HP 11/2004 - 07/2011
2.0 16V 1997 CCM 136 HP 11/2004 - 07/2007
2.0 16V 1997 CCM 140 HP 11/2004 - 07/2011
1.6 HDi 1560 CCM 90 HP 11/2004 - 07/2011
1.6 HDi 1560 CCM 109 HP 11/2004 - 07/2011
2.0 HDi 1997 CCM 136 HP 11/2004 - 07/2011
2.0 16V 1997 CCM 177 HP 11/2004 - 07/2008
1.6 16V Bio-Flex 1587 CCM 109 HP 09/2007 - 07/2008
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 07/2011
1.6 THP 150 1598 CCM 150 HP 07/2008 - 07/2011
1.6 THP 140 1598 CCM 140 HP 07/2008 - 07/2011
2.0 HDi 1997 CCM 140 HP 07/2008 - 07/2011
C4 Coupe (LA_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1360 CCM 88 HP 11/2004 - 07/2011
1.6 16V 1587 CCM 109 HP 11/2004 - 07/2011
2.0 16V 1997 CCM 136 HP 11/2004 - 07/2007
2.0 16V 1997 CCM 177 HP 11/2004 - 12/2010
1.6 HDi 1560 CCM 90 HP 11/2004 - 07/2011
1.6 HDi 1560 CCM 109 HP 11/2004 - 07/2011
2.0 HDi 1997 CCM 136 HP 11/2004 - 12/2010
1.6 VTi 120 1598 CCM 120 HP 07/2008 - 07/2011
1.6 THP 150 1598 CCM 150 HP 07/2008 - 07/2011
2.0 HDi 1997 CCM 140 HP 07/2008 - 07/2011
C4 I Saloon
Description Cylinder Capacity Horse Power Year
1.6 16V 1587 CCM 109 HP 07/2006 - 07/2011
1.6 HDi 1560 CCM 109 HP 07/2006 - 07/2011
PEUGEOT
307 (3A/C)
Description Cylinder Capacity Horse Power Year
1.6 16V 1587 CCM 109 HP 08/2000 - 11/2007
2.0 16V 1997 CCM 136 HP 08/2000 - 06/2005
2.0 HDi 90 1997 CCM 90 HP 08/2000 - 03/2007
2.0 HDi 110 1997 CCM 107 HP 08/2000 - 03/2007
1.4 1360 CCM 75 HP 08/2000 - 09/2003
1.4 HDi 1398 CCM 68 HP 10/2001 - 06/2005
2.0 HDi 135 1997 CCM 136 HP 10/2003 - 11/2007
1.4 16V 1360 CCM 88 HP 11/2003 - 07/2007
1.6 HDi 110 1560 CCM 109 HP 02/2004 - 03/2009
2.0 16V 1997 CCM 140 HP 03/2005 - 11/2007
2.0 16V 1997 CCM 177 HP 06/2005 - 11/2007
1.6 HDi 1560 CCM 90 HP 04/2005 - 03/2009
307 SW (3H)
Description Cylinder Capacity Horse Power Year
1.6 16V 1587 CCM 109 HP 03/2002 - 04/2008
2.0 HDI 90 1997 CCM 90 HP 03/2002 - 04/2008
2.0 HDI 110 1997 CCM 107 HP 03/2002 - 12/2009
1.4 16V 1360 CCM 88 HP 11/2003 - 07/2007
1.6 HDI 110 1560 CCM 109 HP 11/2003 - 12/2007
2.0 HDi 135 1997 CCM 136 HP 02/2004 - 04/2008
2.0 16V 1997 CCM 140 HP 03/2005 - 04/2008
1.6 HDI 90 1560 CCM 90 HP 04/2005 - 04/2008
307 CC (3B)
Description Cylinder Capacity Horse Power Year
2.0 16V 1997 CCM 177 HP 10/2003 - 04/2009
1.6 16V 1587 CCM 110 HP 03/2003 - 04/2009
2.0 16V 1997 CCM 140 HP 12/2004 - 04/2009
2.0 HDi 135 1997 CCM 136 HP 06/2005 - 04/2009

The Delphi TD1157W Bushing, axle beam is a replacement steering or suspension support component that locates or supports connected chassis parts while allowing the movement specified for the application. Its catalogue specification records 83 mm width 1, 17 mm inner diameter 1, 72 mm outer diameter 1, and rear axle fitting position. Confirm the reference, material, dimensions, fitting position and vehicle application before fitting; tighten bonded bushes at the specified ride-height position and check wheel alignment where applicable.

Function : Bushing, axle beam
Width 1 [mm] : 83
Inner Diameter 1 [mm] : 17
Outer Diameter 1 [mm] : 72
Fitting Position : Rear Axle
  • Vendor DELPHI
  • SKU TD1157W
  • Barcode 5012759518052
  • CITROËN : 5131.A4
  • PEUGEOT : 5131.A4
  • APEC : AST8044
  • BORG & BECK : BSK7279
  • CORTECO : 49394721
  • FEBI BILSTEIN : 28403
  • FIRST LINE : FSK7279
  • GATES : AWS2450
  • MEYLE : 11-14 710 0017
  • NAPA : NST8044
  • Schaeffler FAG : 829 0501 10
  • Schaeffler FAG : 829 0511 10
  • SKF : VKDS 473022
