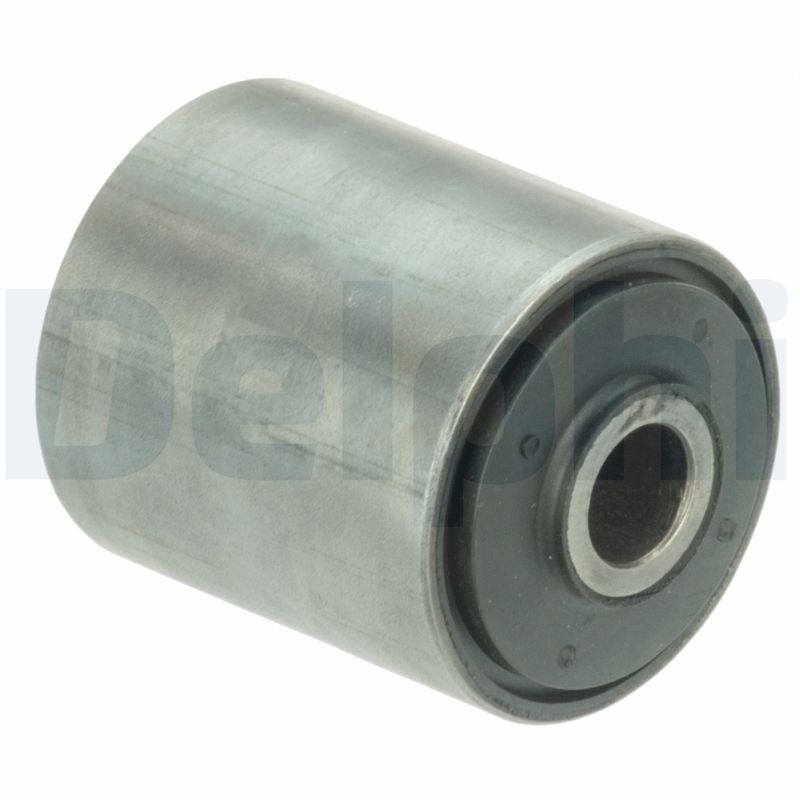

Delphi TD1193W Mounting, leaf spring - 1
Delphi TD1193W Mounting, leaf spring - 1
DELPHI

Delphi TD1193W Mounting, leaf spring

SKU: TD1193W
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£15.53 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI (F_A_, F_B_, F_C_, F_D_) 2402 CCM 75 HP 01/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.3 16V (F_A_, F_B_, F_C_, F_D_) 2295 CCM 146 HP 04/2001 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
2.4 TDE 2402 CCM 125 HP 07/2001 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI RWD (F_B_, F_C_, F_A_) 2402 CCM 120 HP 01/2000 - 05/2006
2.4 DI (F_B_, F_C_, F_A_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI RWD (F_B_, F_C_) 2402 CCM 75 HP 01/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.4 TDE (F_C_, F_B_, F_A_) 2402 CCM 125 HP 07/2001 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.4 DI (FAA_, FAB_, FAC_, FAD_) 2402 CCM 90 HP 01/2000 - 05/2006
2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) 2402 CCM 120 HP 01/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.3 16V RWD (FAA_, FAB_, FAC_) 2295 CCM 146 HP 04/2001 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
2.4 TDE 2402 CCM 125 HP 07/2001 - 05/2006
2.4 TDE 2402 CCM 115 HP 03/2004 - 05/2006
2.4 TDCi 2402 CCM 137 HP 03/2004 - 05/2006
2.3 2295 CCM 143 HP 03/2001 - 03/2006

The Delphi TD1193W Mounting, leaf spring is a replacement suspension spring that supports vehicle load and works with the damper to control suspension movement. Its catalogue specification records 16.1 mm inner diameter 1, 57 mm outer diameter 1, 72.2 mm thickness 1, and 60.6 mm inner diameter 2. Confirm the reference, spring design, dimensions, axle position and vehicle application before fitting; springs should normally be renewed in axle pairs and installed with suitable spring-compression equipment.

Function : Mounting, leaf spring
Inner Diameter 1 [mm] : 16.1
Outer Diameter 1 [mm] : 57
Thickness 1 [mm] : 72.2
Inner Diameter 2 [mm] : 60.6
Thickness 2 [mm] : 60.6
  • Vendor DELPHI
  • SKU TD1193W
  • Barcode 5012759518113
  • FORD : YC15-5781-AC 1749786 4055743
  • BORG & BECK : BSK6629
  • FEBI BILSTEIN : 181526
  • FIRST LINE : FSK6629
  • User manual
