Delphi TD1202W Bushing, stabiliser bar - 1
Delphi TD1202W Bushing, stabiliser bar - 1
DELPHI

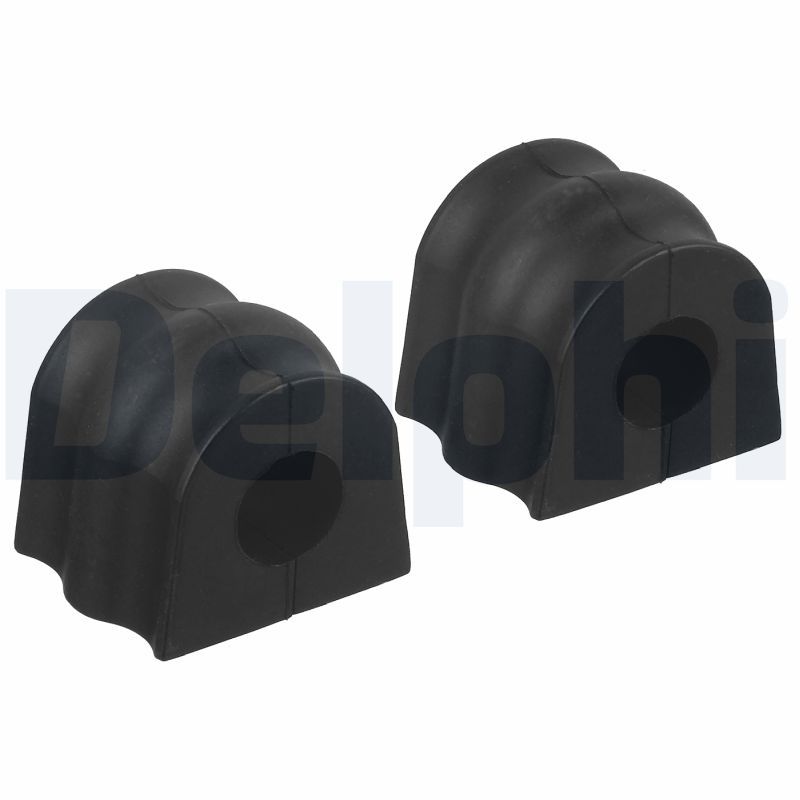

Delphi TD1202W Bushing, stabiliser bar

SKU: TD1202W
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£16.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
FORESTER (SF_)
Description Cylinder Capacity Horse Power Year
2.0 S Turbo AWD (SF5) 1994 CCM 170 HP 06/1998 - 04/2001
2.0 S Turbo AWD (SF5) 1994 CCM 177 HP 04/2001 - 09/2002
FORESTER (SG_)
Description Cylinder Capacity Horse Power Year
2.0 AWD (SG5) 1994 CCM 125 HP 06/2002 - 05/2005
2.0 S Turbo AWD (SG5) 1994 CCM 177 HP 02/2002 - 05/2005
2.5 AWD (SG9) 2457 CCM 211 HP 12/2003 - 05/2005
2.0 X AWD (SG5) 1994 CCM 158 HP 06/2005 - 05/2008
2.5 AWD (SG9, S11SG, S12SH) 2457 CCM 230 HP 06/2005 - 05/2008
2.5 RX Nato AWD (SG9) 2457 CCM 156 HP 11/2002 - 12/2008
2.5 AWD 2457 CCM 232 HP 01/2004 - 12/2009
2.5 Prodrive Performance Pack AWD 2457 CCM 256 HP 05/2005 - 09/2005
FORESTER (SH_)
Description Cylinder Capacity Horse Power Year
2.5 AWD (SH9) 2457 CCM 230 HP 06/2008 - 09/2013
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
1.6 AWD (GD5) 1597 CCM 95 HP 12/2000 - 06/2009
2.0 i AWD (GD9) 1994 CCM 125 HP 12/2000 - 06/2009
2.0 WRX Turbo AWD (GDA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX STi AWD (GDB) 1994 CCM 265 HP 11/2001 - 07/2005
2.0 WRX Turbo AWD (GDA) 1994 CCM 225 HP 12/2002 - 03/2007
2.0 WRX STi AWD 1994 CCM 320 HP 02/2004 - 07/2005
2.0 i R AWD (GD9) 1994 CCM 160 HP 09/2005 - 03/2007
2.5 i WRX AWD (GDG) 2457 CCM 230 HP 09/2005 - 12/2008
2.5 WRX STi AWD (GDF) 2457 CCM 280 HP 09/2005 - 12/2007
1.5 AWD (GD3) 1498 CCM 105 HP 05/2006 - 03/2007
1.5 (GD2) 1498 CCM 101 HP 06/2001 - 09/2005
1.5 (GDC) 1498 CCM 110 HP 10/2005 - 03/2007
1.5 AWD (GDD) 1498 CCM 110 HP 10/2005 - 03/2007
2.0 AWD (GDA) 1994 CCM 250 HP 10/2005 - 03/2007
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
1.6 AWD 1597 CCM 95 HP 12/2000 - 09/2006
2.0 AWD (GG9) 1994 CCM 125 HP 12/2000 - 12/2007
2.0 Turbo AWD (GGA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX Turbo AWD (GGA) 1994 CCM 225 HP 12/2002 - 09/2006
2.0 i R AWD (GG9) 1994 CCM 160 HP 12/2000 - 06/2007
2.5 WRX AWD (GGG) 2457 CCM 230 HP 09/2005 - 12/2008
1.5 AWD (GG3) 1498 CCM 105 HP 05/2006 - 03/2007
2.5 GB270 AWD 2457 CCM 269 HP 07/2007 - 12/2007
1.6 1597 CCM 95 HP 10/2000 - 09/2006
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
2.5 AWD 2457 CCM 272 HP 01/2007 - 12/2007
2.5 AWD 2457 CCM 320 HP 02/2007 - 12/2007
LEGACY Mk II (BD)
Description Cylinder Capacity Horse Power Year
2.0 i (BD4) 1994 CCM 116 HP 09/1994 - 03/1999
2.0 i 4WD (BD5) 1994 CCM 116 HP 09/1994 - 03/1999
2.2 i 4WD (BD7) 2212 CCM 128 HP 09/1994 - 03/1999
2.5 i 4WD (BD9) 2457 CCM 150 HP 06/1996 - 03/1999
2.2 i 4WD (BD7) 2212 CCM 131 HP 06/1996 - 03/1999
LEGACY Mk II Estate (BG)
Description Cylinder Capacity Horse Power Year
2.0 i (BG4) 1994 CCM 116 HP 09/1994 - 11/1998
2.0 i 4WD (BG5) 1994 CCM 116 HP 09/1994 - 11/1998
2.2 i 4WD (BG7) 2212 CCM 128 HP 02/1994 - 12/1998
2.5 i 4WD (BG9) 2457 CCM 150 HP 06/1996 - 11/1998
2.2 i 4WD (BG7) 2212 CCM 131 HP 06/1996 - 11/1998
LEGACY OUTBACK (BG)
Description Cylinder Capacity Horse Power Year
2.5 (BG9) 2457 CCM 150 HP 01/1996 - 12/1999
LEGACY III (BE)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BE9) 2457 CCM 156 HP 10/1998 - 08/2003
LEGACY Mk III Estate (BH)
Description Cylinder Capacity Horse Power Year
2.5 AWD (BH9) 2457 CCM 156 HP 12/1998 - 08/2003
3.0 H6 AWD (BHE) 3000 CCM 209 HP 08/2000 - 08/2003
OUTBACK (BH)
Description Cylinder Capacity Horse Power Year
3.0 H6 AWD (BHE) 3000 CCM 209 HP 10/2000 - 08/2003
2.5 AWD (BH9) 2457 CCM 156 HP 10/2000 - 08/2003

The Delphi TD1202W Bushing, stabiliser bar is a replacement steering or suspension support component that locates or supports connected chassis parts while allowing the movement specified for the application. Its catalogue specification records 19 mm inner diameter 1, 50 mm outer diameter 1, 40 mm thickness 1, and front, inner, and left fitting position. Confirm the reference, material, dimensions, fitting position and vehicle application before fitting; tighten bonded bushes at the specified ride-height position and check wheel alignment where applicable.

Function : Bushing, stabiliser bar
Inner Diameter 1 [mm] : 19
Outer Diameter 1 [mm] : 50
Thickness 1 [mm] : 40
Fitting Position : Front
Fitting Position : inner
Fitting Position : Left
Fitting Position : Right
  • Vendor DELPHI
  • SKU TD1202W
  • Barcode 5012759518502
  • SUBARU : 20401AC011 20414-SA000 20401-AC031
  • BLUE PRINT : ADS78003
  • FEBI BILSTEIN : 42783
  • GATES : AWS1807
  • MEYLE : 34-14 615 0000
  • MONROE : L68L02
  • SKF : VKDS 858000 T
  • User manual
