DELPHI

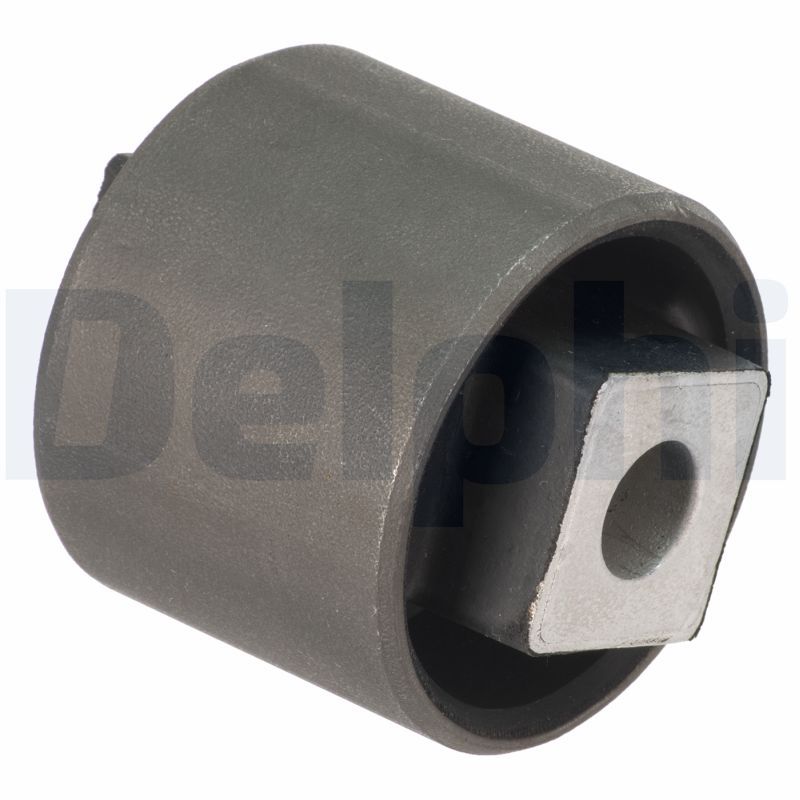

Delphi TD1504W Suspension Bush

SKU: TD1504W

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£20.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER

FREELANDER I (L314)

Description	Cylinder Capacity	Horse Power	Year
1.8 i 16V 4x4	1796 CCM	120 HP	02/1998 - 11/2000
2.0 DI 4x4	1994 CCM	98 HP	02/1998 - 11/2000
2.5 V6 4x4	2497 CCM	177 HP	11/2000 - 10/2006
2.0 Td4 4x4	1951 CCM	112 HP	11/2000 - 10/2006
1.8 16V 4x4	1796 CCM	117 HP	04/1998 - 10/2006
2.0 Td4 4x4	1951 CCM	109 HP	03/2001 - 10/2006

FREELANDER I Soft Top (L314)

Description	Cylinder Capacity	Horse Power	Year
1.8 i 16V 4x4	1796 CCM	120 HP	02/1998 - 10/2006
2.0 DI 4x4	1994 CCM	98 HP	02/1998 - 10/2006
1.8 4x4	1796 CCM	117 HP	10/2000 - 10/2006
2.0 TD4 4x4	1951 CCM	112 HP	10/2000 - 10/2006
2.5 V6 4x4	2497 CCM	177 HP	11/2000 - 10/2006

The Delphi TD1504W Suspension Bush is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 12 mm inner diameter 1, 50 mm outer diameter 1, 55 mm thickness 1, and rear axle, outer, and lower fitting position. It is listed in the mounting, control/trailing arm product category. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Mounting, control/trailing arm

Inner Diameter 1 [mm] : 12

Outer Diameter 1 [mm] : 50

Thickness 1 [mm] : 55

Fitting Position : Rear Axle

Fitting Position : outer

Fitting Position : Lower

Fitting Position : behind the axle

Delphi TD1504W Suspension Bush
