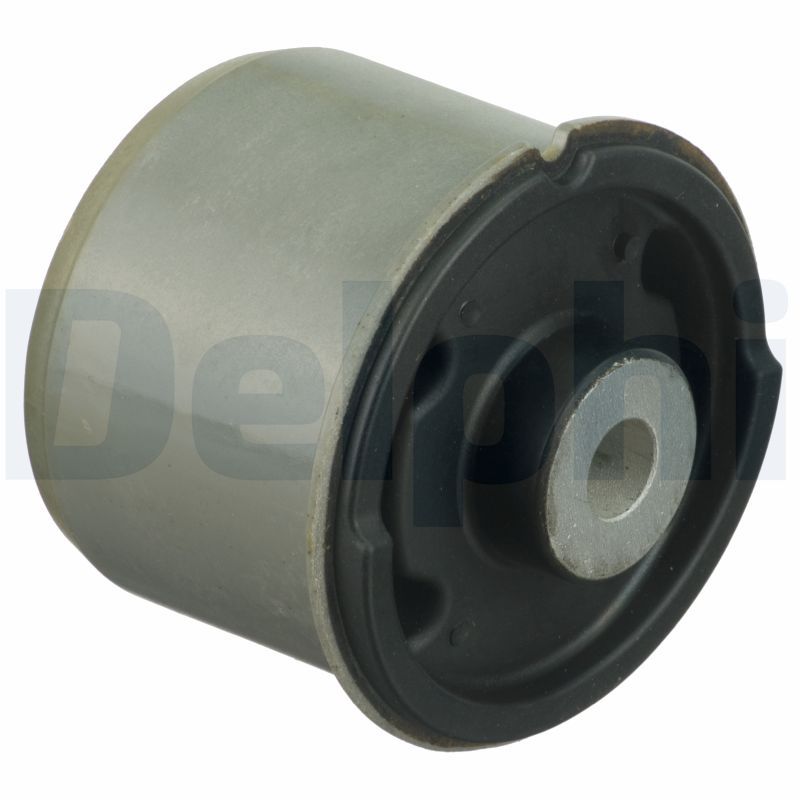

Delphi TD1629W Bushing, axle beam - 1
Delphi TD1629W Bushing, axle beam - 1
DELPHI

Delphi TD1629W Bushing, axle beam

SKU: TD1629W
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£16.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FIESTA VI (CB1, CCN)
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 134 HP 12/2010 - 04/2017
1.4 TDCi 1399 CCM 70 HP 07/2010 - 09/2012
1.25 1242 CCM 60 HP 06/2008 - 04/2017
1.25 1242 CCM 82 HP 06/2008 - 04/2017
1.6 TDCi 1560 CCM 90 HP 06/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2017
1.6 Ti 1596 CCM 120 HP 06/2008 - 09/2012
1.4 TDCi 1399 CCM 68 HP 08/2008 - 09/2012
1.6 TDCi 1560 CCM 75 HP 06/2008 - 12/2012
1.4 LPG 1388 CCM 97 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 12/2015
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 12/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 12/2017
1.6 Ti 1596 CCM 105 HP 09/2012 - 04/2017
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 70 HP 07/2010 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 05/2015
1.25 1242 CCM 82 HP 01/2009 - 04/2017
1.4 TDCi 1399 CCM 68 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 90 HP 01/2009 - 04/2017
1.5 TDCi 1499 CCM 75 HP 10/2012 - 04/2017
1.0 EcoBoost 998 CCM 125 HP 09/2012 - 04/2017
1.0 EcoBoost 998 CCM 140 HP 05/2014 - 04/2017
1.0 998 CCM 65 HP 01/2013 - 04/2017
1.0 EcoBoost 998 CCM 100 HP 01/2013 - 04/2017
1.6 ST 1596 CCM 182 HP 03/2013 - 04/2017
1.5 TDCi 1499 CCM 95 HP 05/2015 - 04/2017
1.0 998 CCM 80 HP 10/2012 - 04/2017

The Delphi TD1629W Bushing, axle beam is a replacement steering or suspension support component that locates or supports connected chassis parts while allowing the movement specified for the application. Its catalogue specification records 78 mm width 1, 12 mm inner diameter 1, 71 mm outer diameter 1, and rear axle fitting position. Confirm the reference, material, dimensions, fitting position and vehicle application before fitting; tighten bonded bushes at the specified ride-height position and check wheel alignment where applicable.

Function : Bushing, axle beam
Width 1 [mm] : 78
Inner Diameter 1 [mm] : 12
Outer Diameter 1 [mm] : 71
Fitting Position : Rear Axle
  • Vendor DELPHI
  • SKU TD1629W
  • Barcode 5012759982006
  • FORD : 1805815
  • APEC : AST8000
  • BORG & BECK : BSK7745
  • CORTECO : 49405827
  • FEBI BILSTEIN : 34748
  • FIRST LINE : FSK7745
  • GATES : AWS2234
  • MEYLE : 714 710 0006
  • MONROE : L16L00
  • NAPA : NST8000
  • Schaeffler FAG : 829 0561 10
  • SKF : VKDS 474003
