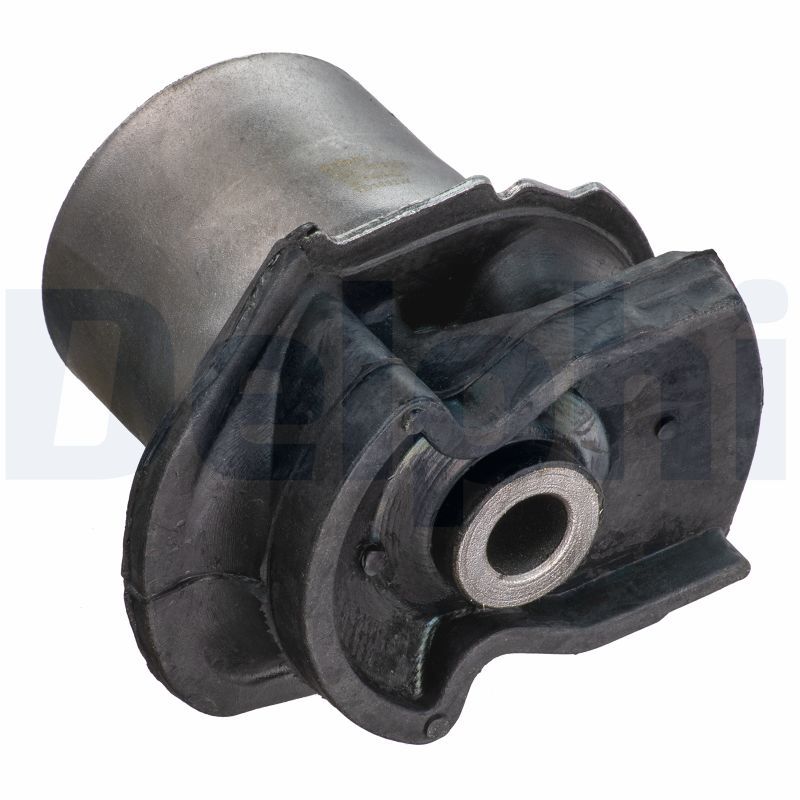

Delphi TD1893W Bushing, axle beam - 1
Delphi TD1893W Bushing, axle beam - 1
DELPHI

Delphi TD1893W Bushing, axle beam

SKU: TD1893W
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£37.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
ALPHARD I (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 Hybrid 4WD (ATH10W) 2362 CCM 159 HP 09/2003 - 04/2008
3.0 (MNH10) 2995 CCM 220 HP 04/2003 - 04/2008
3.0 4WD (MNH15W) 2995 CCM 220 HP 04/2003 - 04/2008
2.4 (ANH10W) 2362 CCM 159 HP 09/2003 - 04/2008
2.4 4WD (ANH15W) 2362 CCM 159 HP 09/2003 - 04/2008
AVENSIS VERSO (_M2_)
Description Cylinder Capacity Horse Power Year
2.0 VVT-i (ACM20_, ACM20R) 1998 CCM 150 HP 08/2001 - 11/2009
2.0 D (CLM20_, CLM20R) 1995 CCM 116 HP 08/2001 - 08/2005
2.4 VVT-i (ACM21) 2362 CCM 156 HP 08/2001 - 08/2007
2.4 VVT-i 4WD (ACM26_, ACM26W) 2362 CCM 156 HP 11/2003 - 08/2006
2.4 VVT-i 4WD (ACM26_, ACM26W) 2362 CCM 160 HP 05/2001 - 12/2010
ISIS (_M1_)
Description Cylinder Capacity Horse Power Year
2.0 VVTi (ANM10G) 1998 CCM 155 HP 07/2004 - 08/2009
NOAH/VOXY (_R6_)
Description Cylinder Capacity Horse Power Year
2.0 (AZR60G) 1998 CCM 152 HP 11/2001 - 06/2007
2.0 4WD (AZR65) 1998 CCM 152 HP 12/2001 - 06/2007
2.0 (AZR60G) 1998 CCM 155 HP 01/2004 - 06/2007
2.0 4WD (AZR65G) 1998 CCM 155 HP 01/2004 - 06/2007
PREVIA / ESTIMA II (_R3_)
Description Cylinder Capacity Horse Power Year
2.4 (ACR30) 2362 CCM 156 HP 02/2000 - 02/2006
2.0 D-4D (CLR30_, CLR30R) 1995 CCM 116 HP 03/2001 - 01/2006
3.0 (MCR30W) 2995 CCM 220 HP 08/2000 - 12/2005
3.0 4WD (MCR40W) 2995 CCM 220 HP 02/2000 - 12/2005
2.4 (ACR30) 2362 CCM 170 HP 02/2000 - 01/2006

The Delphi TD1893W Bushing, axle beam is a replacement steering or suspension support component that locates or supports connected chassis parts while allowing the movement specified for the application. Its catalogue specification records 102 mm width 1, 14 mm inner diameter 1, 65 mm outer diameter 1, and rear axle fitting position. Confirm the reference, material, dimensions, fitting position and vehicle application before fitting; tighten bonded bushes at the specified ride-height position and check wheel alignment where applicable.

Function : Bushing, axle beam
Width 1 [mm] : 102
Inner Diameter 1 [mm] : 14
Outer Diameter 1 [mm] : 65
Fitting Position : Rear Axle
  • Vendor DELPHI
  • SKU TD1893W
  • Barcode 5012759555880
  • NISSAN : 55501-CY70C
  • TOYOTA : 48725-28050 48725-44050 48725-44051 48725-58010
  • BORG & BECK : BSK7694
  • FIRST LINE : FSK7694
  • MONROE : L14L16
