DELPHI

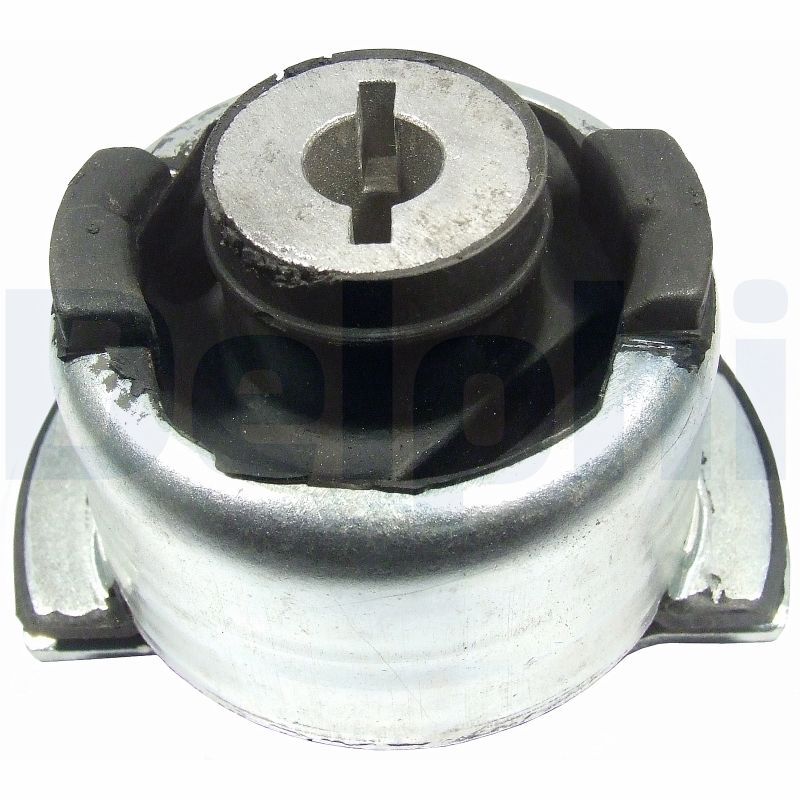

Delphi TD690W Bushing, axle beam

SKU: TD690W

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£31.87 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

LAGUNA II (BG0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.6 16V (BG0A, BG0L)	1598 CCM	107 HP	03/2001 - 05/2005
1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V)	1783 CCM	121 HP	03/2001 - 05/2005
3.0 V6 24V (BG01, BG02, BG0D, BG0Y)	2946 CCM	207 HP	03/2001 - 08/2007
1.9 dCi (BG08, BG0G)	1870 CCM	120 HP	03/2001 - 09/2007
2.0 16V IDE (BG0N)	1998 CCM	140 HP	04/2001 - 09/2007
1.9 dCI (BG0E)	1870 CCM	105 HP	06/2001 - 05/2005
2.2 dCi (BG0F)	2188 CCM	150 HP	10/2001 - 08/2006
1.8 16V (BG0B, BG0M)	1783 CCM	120 HP	03/2001 - 09/2007
1.8 16V (BG06, BG0J, BG0M)	1783 CCM	116 HP	03/2001 - 12/2007
1.9 dCi (BG0R, BG0E)	1870 CCM	100 HP	10/2001 - 05/2005
2.0 16V (BG00, BG0K, BG0P, BG0W)	1998 CCM	135 HP	08/2002 - 12/2007
2.0 16V Turbo (BG0S, BG1L, BG1M)	1998 CCM	163 HP	01/2003 - 03/2005
1.9 dCi (BG05)	1870 CCM	92 HP	03/2004 - 05/2005
2.0 16V (BG03, BG0Z, BG0T, BG1Y)	1998 CCM	170 HP	01/2005 - 09/2007
2.0 16V (BG1Y)	1998 CCM	204 HP	01/2005 - 09/2007

LAGUNA II Sport Tourer (KG0/1_)

Description	Cylinder Capacity	Horse Power	Year
1.6 16V (KG0A, KG0L)	1598 CCM	107 HP	03/2001 - 12/2007
1.8 16V	1783 CCM	121 HP	03/2001 - 05/2005
3.0 V6 24V (KG0D, KG01)	2946 CCM	207 HP	03/2001 - 12/2007
1.9 dCi (KG0G)	1870 CCM	120 HP	03/2001 - 09/2007
2.0 16V IDE (KG0N)	1998 CCM	140 HP	04/2001 - 09/2007
1.9 dCI (KG0E)	1870 CCM	105 HP	06/2001 - 05/2005
2.2 dCi (KG0F)	2188 CCM	150 HP	10/2001 - 08/2006
1.8 16V (KG0J)	1783 CCM	116 HP	03/2001 - 05/2005
1.8 16V (KG0B, KG0M)	1783 CCM	120 HP	03/2001 - 05/2005
1.9 dCi (KG0E, KG0R)	1870 CCM	100 HP	10/2001 - 05/2005
2.0 16V (KG00, KG0K, KG0W, KG0P)	1998 CCM	135 HP	08/2002 - 12/2007
2.0 16V Turbo (KG0S, KG1L, KG03)	1998 CCM	163 HP	01/2003 - 08/2005
1.9 dCi (KG05)	1870 CCM	92 HP	03/2004 - 05/2005
2.0 16V (KG03, KG0Z, KG0T, KG1Y)	1998 CCM	170 HP	01/2005 - 09/2007
2.0 16V (KG1Y)	1998 CCM	204 HP	01/2005 - 09/2007

The Delphi TD690W Bushing, axle beam is a replacement steering or suspension support component that locates or supports connected chassis parts while allowing the movement specified for the application. Its catalogue specification records 73 mm width 1, 78 mm outer diameter 1, and rear axle right fitting position. Confirm the reference, material, dimensions, fitting position and vehicle application before fitting; tighten bonded bushes at the specified ride-height position and check wheel alignment where applicable.

Function : Bushing, axle beam

Width 1 [mm] : 73

Outer Diameter 1 [mm] : 78

Fitting Position : Rear Axle Right

Delphi TD690W Bushing, axle beam
