FAHREN

Fahren FBD6080 Brake Disc

SKU: FBD6080

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£26.40 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi RWD	2198 CCM	125 HP	09/2011 - 12/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014
2.2 TDCi RWD	2198 CCM	135 HP	09/2011 - 08/2014

TRANSIT Van (FA_ _)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	125 HP	10/2011 - 08/2014
2.2 TDCi	2198 CCM	110 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	130 HP	04/2006 - 08/2014
2.2 TDCi	2198 CCM	85 HP	04/2006 - 08/2014

TRANSIT TOURNEO Bus

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	110 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	131 HP	07/2006 - 08/2014
2.2 TDCi	2198 CCM	140 HP	10/2007 - 08/2014
2.2 TDCi	2198 CCM	115 HP	10/2008 - 08/2014
2.2	2198 CCM	125 HP	10/2011 - 08/2014

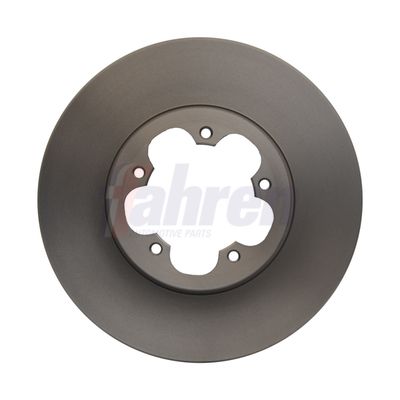

The Fahren FBD6080 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 28 mm brake disc thickness, and 93 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 280

Brake Disc Thickness [mm] : 28

Height [mm] : 54

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 93

Test Mark : 90R-02C0448/1337

Fahren FBD6080 Brake Disc
