Fahren FBD6095 Brake Disc - 1
Fahren FBD6095 Brake Disc - 1
FAHREN

Fahren FBD6095 Brake Disc

SKU: FBD6095
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£15.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
CORSA C (X01)
Description Cylinder Capacity Horse Power Year
1.0 (F08, F68) 973 CCM 58 HP 09/2000 - 06/2003
1.2 (F08, F68) 1199 CCM 75 HP 09/2000 - 12/2009
1.7 DI (F08, F68) 1686 CCM 65 HP 09/2000 - 12/2009
1.0 (F08, F68) 998 CCM 60 HP 06/2003 - 12/2009
1.2 Twinport (F08, F68) 1229 CCM 80 HP 07/2004 - 12/2009
CORSA C Hatchback Van (X01)
Description Cylinder Capacity Horse Power Year
1.2 16V (F08, W5L) 1199 CCM 75 HP 09/2000 - 07/2003
1.7 DI 16V (F08, W5L) 1686 CCM 65 HP 09/2000 - 07/2003
1.2 (F08, W5L) 1229 CCM 80 HP 07/2005 - 06/2006
VAUXHALL
CORSA Mk II (C) (X01)
Description Cylinder Capacity Horse Power Year
1.2 Twinport (F08, F68) 1229 CCM 80 HP 07/2004 - 10/2006
1.0 12V (F08, F68) 973 CCM 58 HP 09/2000 - 10/2003
1.2 16V (F08, F68) 1199 CCM 75 HP 09/2000 - 10/2006
1.7 DI 16V (F08, F68) 1686 CCM 65 HP 08/2000 - 09/2006
1.2 16V Dualfuel (F08) 1199 CCM 75 HP 08/2001 - 10/2006
1.0 12V (F08, F68) 998 CCM 60 HP 11/2003 - 10/2006
CORSAVAN Mk II (C) Hatchback Van (X01)
Description Cylinder Capacity Horse Power Year
1.2 16V (F08) 1199 CCM 75 HP 09/2000 - 06/2006
1.7 DI 16V (F08) 1686 CCM 65 HP 09/2000 - 06/2006
1.2 16V Dualfuel (F08) 1199 CCM 75 HP 08/2001 - 06/2006
1.2 16V Dualfuel (F08) 1229 CCM 80 HP 07/2004 - 12/2005
1.2 16V (F08) 1229 CCM 80 HP 07/2004 - 11/2006

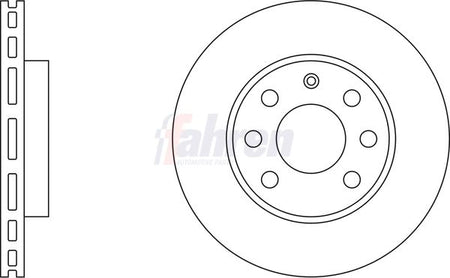

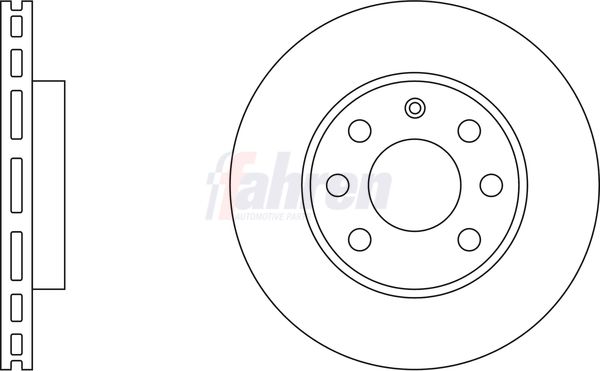

The Fahren FBD6095 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 240 mm outer diameter, 20 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 240
Brake Disc Thickness [mm] : 20
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 60
Test Mark : 90R-02C0349/0488
Fitting Position : Front Axle
Braking/Driving Dynamics : for vehicles with ABS
  • Vendor FAHREN
  • SKU FBD6095
  • Barcode 5056758928641
  • OPEL : 569021 9195985
  • VAUXHALL : 9195985 95526649
  • APEC : DSK2059
  • APEC : SDK6095
  • BLUE PRINT : ADZ94323
  • FEBI BILSTEIN : 19508
  • NAPA : NBD5564
