Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

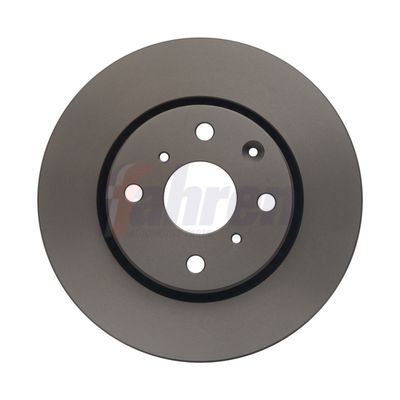

Fahren FBD6101 Brake Disc - 1
Fahren FBD6101 Brake Disc - 2
Fahren FBD6101 Brake Disc - 1
Fahren FBD6101 Brake Disc - 2
FAHREN

Fahren FBD6101 Brake Disc

SKU: FBD6101
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£19.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C1 (PM_, PN_)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 68 HP 06/2005 - 09/2014
1.4 HDi 1398 CCM 54 HP 06/2005 - 09/2014
C1 II (PA_, PS_)
Description Cylinder Capacity Horse Power Year
1.0 VTi 68 998 CCM 69 HP 04/2014 - 04/2018
1.2 VTi 82 1199 CCM 82 HP 04/2014 - 04/2018
1.0 VTi 72 998 CCM 72 HP 06/2018 - 07/2021
PEUGEOT
107 (PM_, PN_)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 68 HP 06/2005 - 05/2014
1.4 HDi 1398 CCM 54 HP 06/2005 - 05/2014
108
Description Cylinder Capacity Horse Power Year
1.0 VTi 998 CCM 69 HP From 05/2014
1.2 1199 CCM 82 HP From 05/2014
1.0 VTi 72 998 CCM 72 HP From 05/2018
TOYOTA
AYGO (_B1_)
Description Cylinder Capacity Horse Power Year
1.0 (KGB10_, KGB10R) 998 CCM 68 HP 07/2005 - 05/2014
1.4 D-4D (WNB10_, WNB10R) 1398 CCM 54 HP 07/2005 - 08/2010
AYGO (_B4_)
Description Cylinder Capacity Horse Power Year
1.0 (KGB40) 998 CCM 69 HP From 05/2014
1.0 VVTi (KGB40) 998 CCM 72 HP From 03/2018

The Fahren FBD6101 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 247 mm outer diameter, 20 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 247
Brake Disc Thickness [mm] : 20
Height [mm] : 35
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 55
Test Mark : 90R-02C0411/1547
Fitting Position : Front Axle
for article number : FBP3087
  • Vendor FAHREN
  • SKU FBD6101
  • Barcode 5056758928702
  • PEUGEOT : 1613819880 1618862380 1630633180 4246F0 4246J0 424954 424955 424994
  • TOYOTA : 435120H010 435120H020 435120H040 43512YZZAJ
  • APEC : DSK2411
  • APEC : SDK6101
  • BLUE PRINT : ADT343198
  • FEBI BILSTEIN : 30636
  • NAPA : NBD5005
