Fahren FBD6123 Brake Disc

SKU: FBD6123

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£33.66 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

6 Saloon (GH)

Description	Cylinder Capacity	Horse Power	Year
1.8 MZR	1798 CCM	120 HP	08/2007 - 07/2013
2.0 MZR (GHEFP, GH10F)	1999 CCM	147 HP	08/2007 - 12/2012
2.5 MZR (GH5FS, GH5FP)	2488 CCM	170 HP	08/2007 - 07/2013
2.0 MZR-CD (GH14)	1998 CCM	140 HP	08/2007 - 10/2010
2.2 MZR-CD (GH10)	2184 CCM	125 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	163 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	185 HP	01/2009 - 12/2012
2.0 MZR (GHEFP)	1999 CCM	155 HP	01/2010 - 12/2012
2.2 D (GH10)	2184 CCM	129 HP	01/2010 - 12/2012
2.2 D (GH10)	2183 CCM	180 HP	01/2010 - 07/2013

6 Hatchback (GH)

Description	Cylinder Capacity	Horse Power	Year
2.2 MZR-CD (GH10)	2184 CCM	180 HP	01/2010 - 12/2012
2.2 D (GH10)	2184 CCM	129 HP	01/2010 - 12/2012
2.0 MZR (GHEFS)	1999 CCM	155 HP	01/2010 - 12/2012
1.8 MZR	1798 CCM	120 HP	08/2007 - 07/2013
2.0 MZR (GHEFS)	1999 CCM	147 HP	08/2007 - 07/2013
2.5 MZR (GH5FS)	2488 CCM	170 HP	08/2007 - 03/2013
2.0 MZR-CD (GH14)	1998 CCM	140 HP	08/2007 - 10/2009
2.2 MZR-CD (GH10)	2184 CCM	185 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	163 HP	01/2009 - 12/2012
2.2 MZR-CD (GH10)	2184 CCM	125 HP	01/2009 - 12/2012

6 Estate (GH)

Description	Cylinder Capacity	Horse Power	Year
2.0 MZR (GHEFW)	1999 CCM	155 HP	01/2010 - 07/2013
2.2 D (GH10)	2184 CCM	129 HP	01/2010 - 07/2013
2.2 MZR-CD (GH10)	2183 CCM	180 HP	01/2010 - 07/2013
1.8 MZR	1798 CCM	120 HP	02/2008 - 07/2013
2.0 MZR (GHEFW, GH10F)	1999 CCM	147 HP	12/2007 - 07/2013
2.0 MZR-CD (GH14)	1998 CCM	140 HP	12/2007 - 12/2010
2.5 MZR (GH5FW)	2488 CCM	170 HP	02/2008 - 07/2013
2.2 MZR-CD (GH10)	2184 CCM	125 HP	01/2009 - 12/2010
2.2 MZR-CD (GH10)	2184 CCM	163 HP	08/2008 - 07/2013
2.2 MZR-CD (GH10)	2184 CCM	185 HP	08/2008 - 12/2011

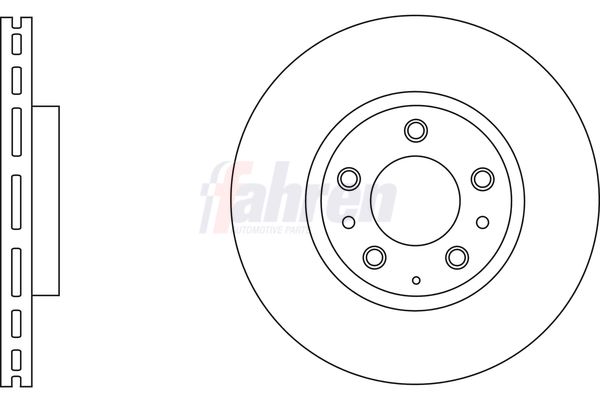

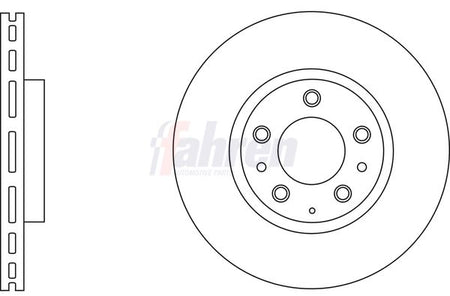

The Fahren FBD6123 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 299 mm outer diameter, 25 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 299

Brake Disc Thickness [mm] : 25

Height [mm] : 48

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 72

Test Mark : 90R-02C0349/1304

Fitting Position : Front Axle

for article number : FBP3304

Fahren FBD6123 Brake Disc
