Fahren FBD6193 Brake Disc

SKU: FBD6193

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£18.72 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI

JIMNY Open Off-Road Vehicle (SN)

Description	Cylinder Capacity	Horse Power	Year
1.3 16V 4WD (SN413, JB33)	1298 CCM	80 HP	From 09/1998
1.3 (SN413)	1328 CCM	86 HP	From 08/2004

JIMNY Closed Off-Road Vehicle (SN)

Description	Cylinder Capacity	Horse Power	Year
1.3 16V (SN413, JB33)	1298 CCM	80 HP	From 09/1998
1.3 16V 4WD (SN413, JB33)	1298 CCM	80 HP	From 09/1998
1.3 16V 4WD (SN413, JB43)	1328 CCM	82 HP	From 02/2001
1.3 16V 4x4 (SN413, JB43)	1328 CCM	86 HP	From 08/2005

SAMURAI Closed Off-Road Vehicle (SJ_)

Description	Cylinder Capacity	Horse Power	Year
1.3 All-wheel Drive (SJ413, SJ70, SJ80)	1298 CCM	70 HP	11/1988 - 12/2004
1.3 All-wheel Drive (SJ413)	1324 CCM	64 HP	11/1988 - 12/2004

SAMURAI Open Off-Road Vehicle (SJ_)

Description	Cylinder Capacity	Horse Power	Year
1.3 (SJ413)	1298 CCM	70 HP	08/1992 - 08/1998

VITARA / ESCUDO (ET, TA, TD)

Description	Cylinder Capacity	Horse Power	Year
1.6 (TA, TA01)	1590 CCM	80 HP	01/1991 - 01/1998
1.6 All-wheel Drive (SE416, TA01)	1589 CCM	82 HP	07/1988 - 12/1995
1.6 i 16V All-wheel Drive (ET, TA02, SE416)	1590 CCM	97 HP	07/1990 - 03/1998
1.6 (SE 416)	1590 CCM	95 HP	02/1991 - 03/1998
1.6 All-wheel Drive (SE416, TA01)	1590 CCM	75 HP	10/1988 - 12/1998

VITARA Cabrio (ET, TA)

Description	Cylinder Capacity	Horse Power	Year
1.6 (TA01, SE416)	1589 CCM	80 HP	07/1988 - 01/1995
1.6 i 16V (TA02, SE416)	1590 CCM	97 HP	07/1990 - 03/1999
1.6 (SE416)	1589 CCM	75 HP	01/1990 - 12/1993

X-90 (EL)

Description	Cylinder Capacity	Horse Power	Year
1.6 i 16V 4x4 (SZ416)	1590 CCM	97 HP	09/1995 - 12/1997
1.6 i 16V (SZ416)	1590 CCM	97 HP	09/1995 - 12/1997

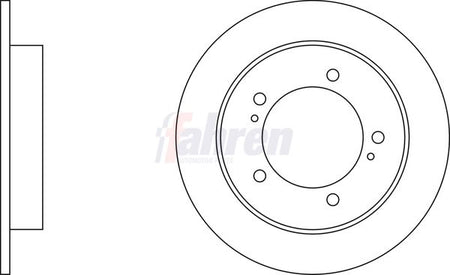

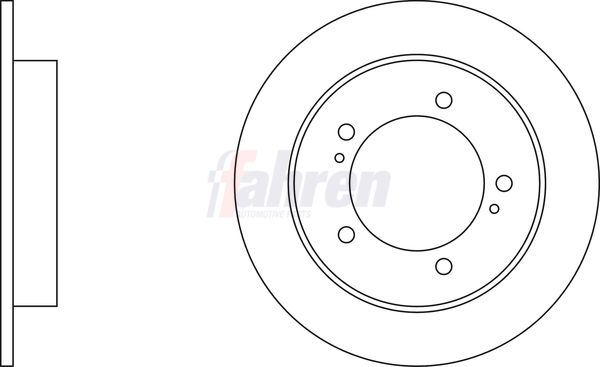

The Fahren FBD6193 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 289 mm outer diameter, 10 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 289

Brake Disc Thickness [mm] : 10

Height [mm] : 46

Bolt Hole Circle Ø [mm] : 140

Centering Diameter [mm] : 107

Test Mark : 90R-02C0355/0907

Fitting Position : Front Axle

Vehicle Identification Number (VIN) to : 00203804

Fahren FBD6193 Brake Disc
