Fahren FBD6291 Brake Disc - 1
Fahren FBD6291 Brake Disc - 2
Fahren FBD6291 Brake Disc - 1
Fahren FBD6291 Brake Disc - 2
FAHREN

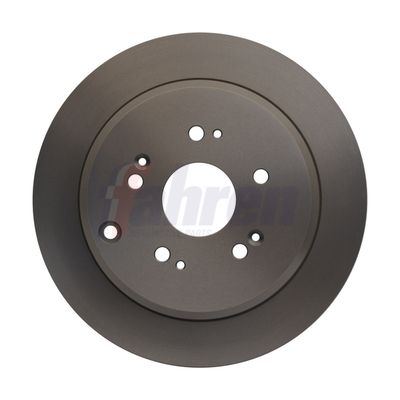

Fahren FBD6291 Brake Disc

SKU: FBD6291
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£21.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
CR-V III (RE_)
Description Cylinder Capacity Horse Power Year
2.4 i-VTEC 4WD (RE7) 2354 CCM 166 HP 09/2009 - 12/2012
2.4 4WD (RE4) 2354 CCM 168 HP 09/2006 - 06/2012
2.0 i-VTEC 4WD (RE5, RE2) 1997 CCM 150 HP 10/2006 - 06/2012
2.2 i-CTDi 4WD (RE6) 2204 CCM 140 HP 01/2007 - 02/2010
2.4 (RE3) 2354 CCM 170 HP 04/2007 - 12/2012
2.4 i-VTEC 4WD (RE4) 2354 CCM 160 HP 10/2006 - 10/2012
2.4 (RE3) 2354 CCM 168 HP 06/2006 - 06/2012
2.2 i-DTEC 4WD (RE6) 2199 CCM 150 HP 01/2007 - 06/2012
2.4 i-Vtec 4WD (RE4) 2354 CCM 170 HP 04/2007 - 12/2012
2.0 i-VTEC (RE5, RE1) 1997 CCM 150 HP 01/2007 - 06/2012
CR-V IV (RM_)
Description Cylinder Capacity Horse Power Year
2.0 (RM1) 1997 CCM 150 HP 01/2012 - 12/2018
1.6 i-DTEC (RE6) 1597 CCM 120 HP 10/2013 - 08/2018
2.0 iVtec (RE5, RM1) 1997 CCM 155 HP 10/2012 - 12/2018
2.0 AWD (RE5, RM2) 1997 CCM 155 HP 10/2012 - 12/2018
1.6 i-DTEC 4WD (RE6) 1597 CCM 160 HP 02/2015 - 08/2018
2.2 i-DTEC 4WD (RE6) 2199 CCM 150 HP 11/2012 - 05/2015

The Fahren FBD6291 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 302 mm outer diameter, 10 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 10
Height [mm] : 61
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 64
Test Mark : 90R-02C0357/0801
Fitting Position : Rear Axle
for article number : FBP3229
  • Vendor FAHREN
  • SKU FBD6291
  • Barcode 5056758930569
  • HONDA : 42510SWWG01 42510T1GG00 42510T1GG01
  • APEC : DSK2663
  • APEC : SDK6291
  • BLUE PRINT : ADH243105
  • FEBI BILSTEIN : 108423
  • FEBI BILSTEIN : 108576
  • NAPA : NBD5627
