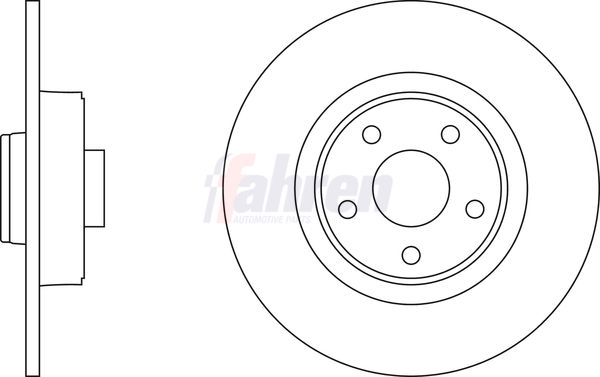

Fahren FBD6422 Brake Disc - 1

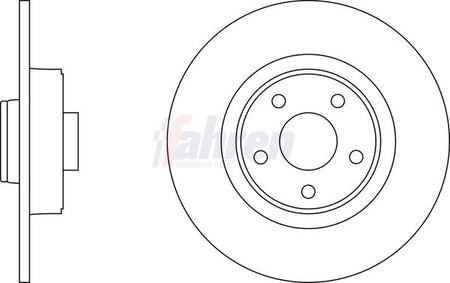

Fahren FBD6422 Brake Disc - 1
FAHREN

Fahren FBD6422 Brake Disc

SKU: FBD6422
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£74.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
ESPACE Mk IV (JK0/1_)
Description Cylinder Capacity Horse Power Year
2.0 Turbo (JK0A, JK0B, JK0N) 1998 CCM 163 HP 11/2002 - 02/2006
2.2 dCi (JK0H) 2188 CCM 150 HP 11/2002 - 08/2006
3.5 V6 (JK00, JK0F, JK0P, JK0S, JK0W) 3498 CCM 241 HP 11/2002 - 12/2015
3.0 dCi (JK0J, JK0V) 2958 CCM 177 HP 11/2002 - 08/2006
2.0 (JK09) 1998 CCM 136 HP 11/2002 - 01/2015
1.9 dCi (JK0U, JK0G) 1870 CCM 120 HP 11/2002 - 01/2015
2.0 (JK0A, JK1D, JK0N) 1998 CCM 170 HP 04/2005 - 12/2015
2.0 dCi (JK01, JK02, JK1J, JK1K, JK1H) 1995 CCM 150 HP 01/2006 - 12/2015
2.0 dCi (JK03, JK04, JK1C, JK1G, JK1J, JK1K) 1995 CCM 173 HP 01/2006 - 12/2015
3.0 dCi (JK0E, JK0Y) 2958 CCM 181 HP 01/2006 - 01/2015
2.2 dCi (JK07) 2188 CCM 139 HP 02/2006 - 12/2015
1.9 dCi (JK0U) 1870 CCM 116 HP 04/2003 - 02/2005
2.0 dCi (JK02, JK03) 1995 CCM 131 HP 01/2006 - 12/2015
2.0 (JK0K) 1998 CCM 133 HP 11/2002 - 12/2015
3.0 dCi 2958 CCM 163 HP 09/2005 - 01/2015
VEL SATIS (BJ0_)
Description Cylinder Capacity Horse Power Year
2.0 16V Turbo (BJ0K) 1998 CCM 163 HP 06/2002 - 08/2009
3.5 V6 (BJ0R, BJ0V, BJ0U) 3498 CCM 241 HP 06/2002 - 08/2009
2.2 dCi (BJ0E, BJ0F) 2188 CCM 150 HP 06/2002 - 08/2009
3.0 dCi (BJ0J, BJ0N) 2958 CCM 177 HP 06/2002 - 06/2006
2.0 16 V Turbo 1998 CCM 170 HP 04/2004 - 08/2009

The Fahren FBD6422 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 300 mm outer diameter, 11 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 11
Height [mm] : 84
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 62
Test Mark : 90R-02C0528/1385
Fitting Position : Rear Axle
for article number : FBP3061
  • Vendor FAHREN
  • SKU FBD6422
  • Barcode 5056758931382
  • RENAULT : 402021651R 432025945R 432029079R 8200002874 8200244108 8200649353
  • APEC : DSK2326
  • APEC : SDK6422
  • BLUE PRINT : ADR164336
  • FEBI BILSTEIN : 44018
