Fahren FBD6438 Brake Disc

SKU: FBD6438

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£56.08 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

M-CLASS (W164)

Description	Cylinder Capacity	Horse Power	Year
ML 350 4-matic (164.186)	3498 CCM	272 HP	02/2005 - 12/2011
ML 280 CDI 4-matic (164.120)	2987 CCM	190 HP	07/2005 - 07/2009
ML 320 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2005 - 07/2009
ML 300 CDI 4-matic (164.120)	2987 CCM	190 HP	07/2009 - 12/2011
ML 350 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2009 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124)	2987 CCM	211 HP	09/2009 - 12/2011
ML 300 CDI 4-matic (164.121)	2987 CCM	204 HP	02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124)	2987 CCM	231 HP	02/2010 - 12/2011
ML 320 CDI 4-matic (164.124, 164.125, 164.122)	2987 CCM	211 HP	07/2005 - 07/2011

R-CLASS (W251, V251)

Description	Cylinder Capacity	Horse Power	Year
R 350 CDI 4-matic (251.023, 251.123)	2987 CCM	265 HP	08/2010 - 12/2014
R 350 4-matic (251.065, 251.165)	3498 CCM	272 HP	07/2005 - 12/2012
R 320 CDI 4-matic (251.022, 251.122)	2987 CCM	224 HP	01/2006 - 07/2010
R 280 CDI 4-matic (251.020)	2987 CCM	190 HP	05/2006 - 12/2012
R 350 (251.056, 251.156)	3498 CCM	272 HP	01/2007 - 12/2012
R 280 CDI (251.121, 251.026, 251.126)	2987 CCM	190 HP	05/2006 - 12/2012
R 300 CDI (251.021, 251.121, 251.026, 251.126)	2987 CCM	190 HP	07/2009 - 12/2012
R 350 CDI 4-matic (251.022, 251.122)	2987 CCM	224 HP	07/2009 - 12/2012

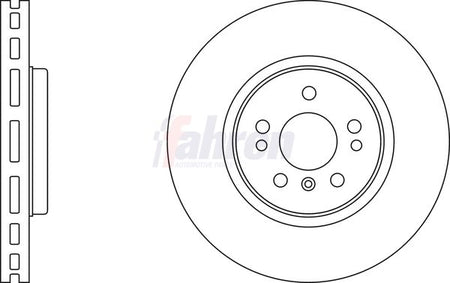

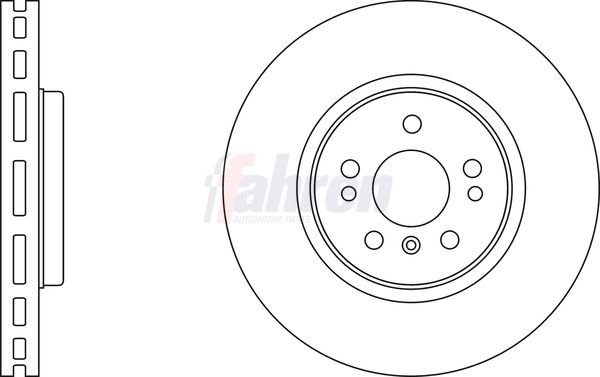

The Fahren FBD6438 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 330 mm outer diameter, 32 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 330

Brake Disc Thickness [mm] : 32

Height [mm] : 55

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Test Mark : 90R-02C0349/1369

Fitting Position : Front Axle

for article number : FBP3629

Fahren FBD6438 Brake Disc
