Fahren FBD6497 Brake Disc
Your selected vehicle
Regular price
£26.05
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

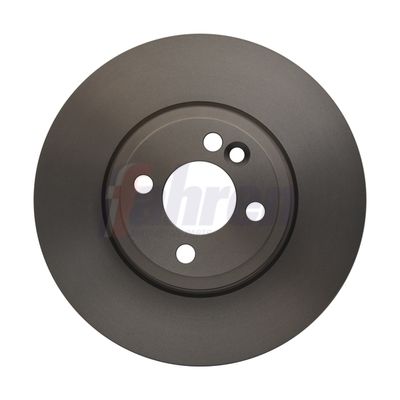

The Fahren FBD6497 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 294 mm outer diameter, 22 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
Vented
Outer Diameter [mm] :
294
Brake Disc Thickness [mm] :
22
Height [mm] :
44
Bolt Hole Circle Ø [mm] :
100
Centering Diameter [mm] :
64
Test Mark :
90R-02C0349/0902
Fitting Position :
Front Axle
for article number :
FBP3228
- Vendor FAHREN
- SKU FBD6497
- MINI : 34116768933 34116774986 34116858652
- APEC : DSK2499
- APEC : SDK6497
- BLUE PRINT : ADG043148
- FEBI BILSTEIN : 36698
- FEBI BILSTEIN : 43904
- NAPA : NBD5396
