Fahren FBD6542 Brake Disc

SKU: FBD6542

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£30.77 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

C-CLASS (W204)

Description	Cylinder Capacity	Horse Power	Year
C 180 CDI (204.000)	2143 CCM	120 HP	04/2010 - 03/2014
C 200 CDI (204.001)	2143 CCM	136 HP	11/2009 - 03/2014
C 200 CDI (204.007, 204.006)	2148 CCM	136 HP	01/2007 - 12/2009
C 180 Kompressor (204.046)	1796 CCM	156 HP	01/2007 - 01/2009

C-CLASS T-Model (S204)

Description	Cylinder Capacity	Horse Power	Year
C 200 CDI (204.201)	2143 CCM	136 HP	08/2010 - 08/2014
C 180 CGI (204.249)	1796 CCM	156 HP	11/2009 - 08/2014
C 180 CDI (204.200)	2143 CCM	120 HP	04/2010 - 08/2014
C 180 Kompressor (204.246)	1796 CCM	156 HP	08/2007 - 08/2014
C 200 CDI (204.207)	2148 CCM	136 HP	08/2007 - 12/2009

C-CLASS Coupe (C204)

Description	Cylinder Capacity	Horse Power	Year
C 180 (204.349)	1796 CCM	156 HP	From 06/2011
C 180 (204.331)	1595 CCM	156 HP	From 01/2013

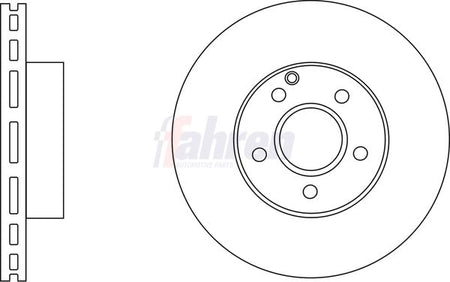

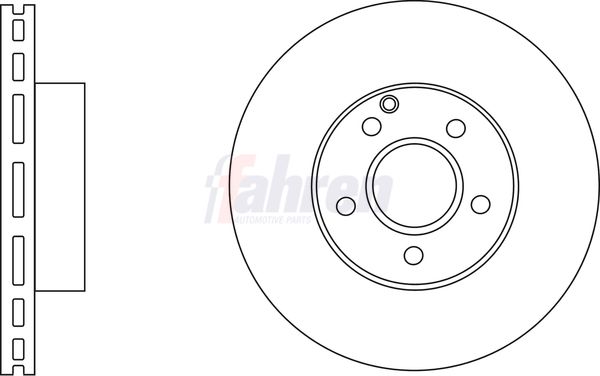

The Fahren FBD6542 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 288 mm outer diameter, 25 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 288

Brake Disc Thickness [mm] : 25

Height [mm] : 64

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Test Mark : 90R-02C0448/1334

Fitting Position : Front Axle

for article number : FBP3223
