Fahren FBD6591 Brake Disc

SKU: FBD6591

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£44.22 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

PAJERO/SHOGUN IV (V8_W, V9_W)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D 4WD (V98W, V88W)	3200 CCM	190 HP	From 02/2007
3.8 V6 (V87W, V97W)	3828 CCM	250 HP	From 02/2007
3.2 DI-D (V88W, V98W)	3200 CCM	160 HP	From 02/2007
3.2 DI-D (V88W, V98W)	3200 CCM	170 HP	From 02/2007
3.2 DI-D 4WD (V98W, V88W)	3200 CCM	200 HP	From 01/2009
3.8 V6 (V87W)	3828 CCM	248 HP	From 10/2006
3.2 DI-D	3200 CCM	167 HP	From 02/2007
3.2 4WD (V98W)	3200 CCM	192 HP	From 10/2016

PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)

Description	Cylinder Capacity	Horse Power	Year
3.2 DI-D	3200 CCM	160 HP	From 11/2006
3.2 TD 4WD (V88V, V98V)	3200 CCM	200 HP	From 01/2010
3.2 DI-D 4WD (V88W, V98W)	3200 CCM	190 HP	From 02/2007

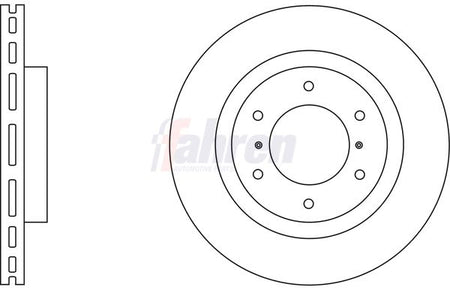

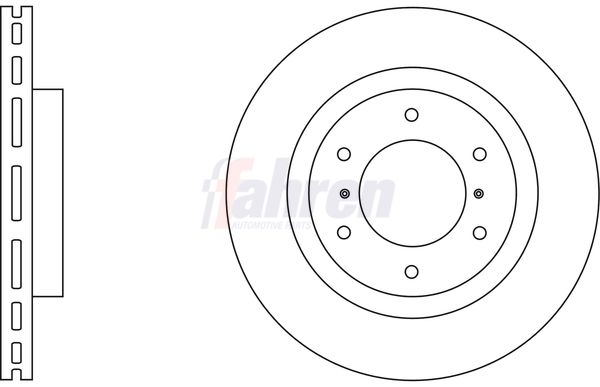

The Fahren FBD6591 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 332 mm outer diameter, 28 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 332

Brake Disc Thickness [mm] : 28

Height [mm] : 56

Bolt Hole Circle Ø [mm] : 140

Centering Diameter [mm] : 94

Test Mark : 90R-02C0349/1407

Fitting Position : Front Axle

for article number : FBP3193
