FAHREN

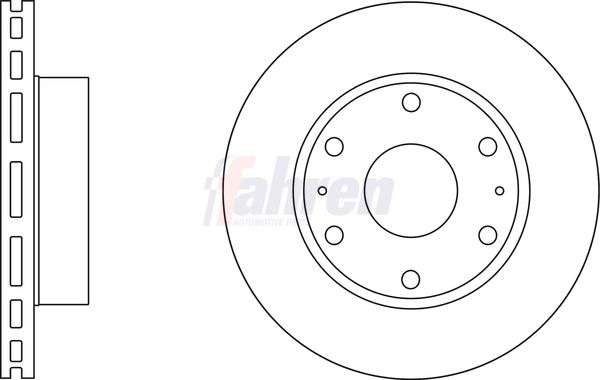

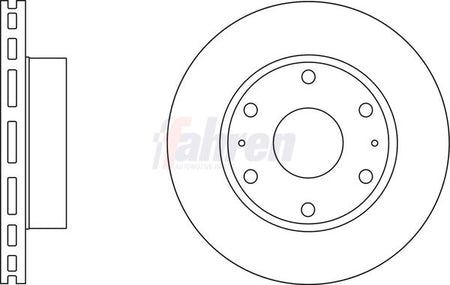

Fahren FBD6636 Brake Disc

SKU: FBD6636

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£29.14 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)

Description	Cylinder Capacity	Horse Power	Year
2.5 D 4WD (KUN25)	2494 CCM	102 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R)	2494 CCM	120 HP	06/2006 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	171 HP	08/2005 - 09/2015
2.5 D-4D 4WD (KUN25)	2494 CCM	144 HP	12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_)	2494 CCM	128 HP	11/2004 - 12/2005
3.0 D-4D 4WD (KUN26)	2982 CCM	197 HP	05/2008 - 12/2012
3.0 D-4D 4WD (KUN26)	2982 CCM	169 HP	08/2005 - 05/2015

The Fahren FBD6636 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 297 mm outer diameter, 25 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 297

Brake Disc Thickness [mm] : 25

Height [mm] : 67

Bolt Hole Circle Ø [mm] : 140

Wheel Bolt Bore Diameter [mm] : 15

Centering Diameter [mm] : 108

Test Mark : 90R-02C0349/1236

Fitting Position : Front Axle

for article number : FBP3232

Fahren FBD6636 Brake Disc
