Fahren FBD6677 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: FBD6677

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£23.20 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI

SWIFT III (FZ, NZ)

Description	Cylinder Capacity	Horse Power	Year
1.2 (AZH412, ZC72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.2 4x4 (AZH412, ZD72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.3 DDiS (AZG413D, ZC02S, ZC92S)	1248 CCM	75 HP	10/2010 - 04/2017
1.2 (AZG412, ZC72S)	1242 CCM	90 HP	10/2010 - 04/2017
1.2 4x4 (AZG412, ZD72S)	1242 CCM	90 HP	10/2010 - 04/2017
1.2 (AZH412, AZG412, ZC72S)	1242 CCM	91 HP	08/2012 - 04/2017
1.2 4WD (AZH412, AZG412, ZD72S)	1242 CCM	91 HP	08/2012 - 04/2017

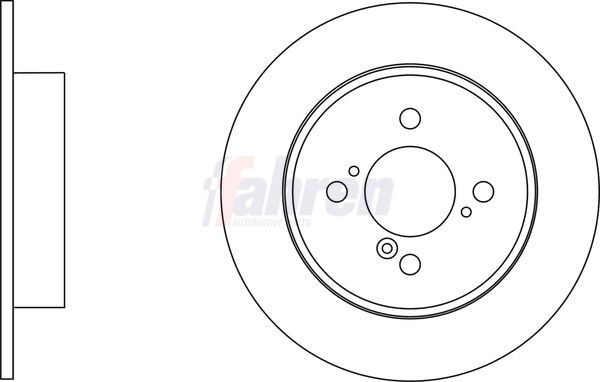

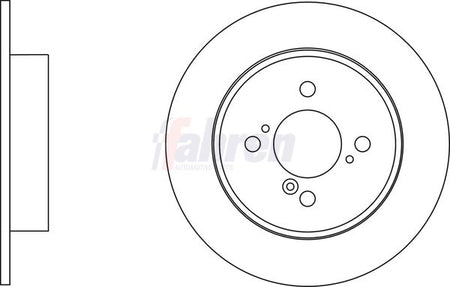

The Fahren FBD6677 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 259 mm outer diameter, 9 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 259

Brake Disc Thickness [mm] : 9

Height [mm] : 43

Bolt Hole Circle Ø [mm] : 100

Wheel Bolt Bore Diameter [mm] : 14

Centering Diameter [mm] : 62

Test Mark : 90R-02C0355/0001

Fitting Position : Rear Axle

for article number : FBP3720
