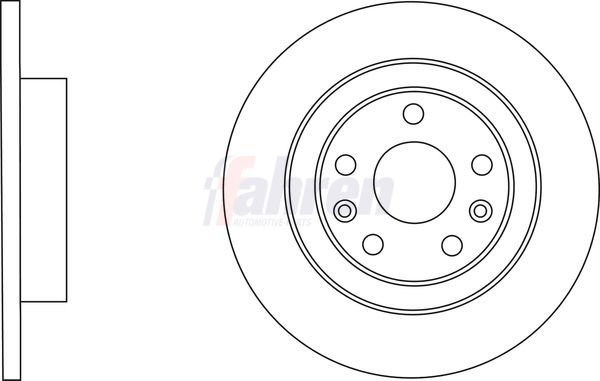

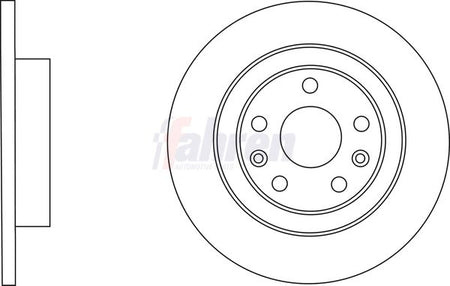

Fahren FBD6715 Brake Disc - 1
Fahren FBD6715 Brake Disc - 1
FAHREN

Fahren FBD6715 Brake Disc

SKU: FBD6715
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£23.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PEUGEOT
508 I (8D_)
Description Cylinder Capacity Horse Power Year
1.6 VTi 1598 CCM 120 HP 11/2010 - 12/2018
1.6 THP 1598 CCM 156 HP 11/2010 - 12/2018
1.6 HDi 1560 CCM 112 HP 11/2010 - 12/2018
2.0 HDi 1997 CCM 140 HP 11/2010 - 12/2018
2.0 HDi 1997 CCM 163 HP 11/2010 - 12/2018
1.6 HDi 1560 CCM 115 HP 02/2012 - 12/2018
2.0 BlueHDi 150 1997 CCM 150 HP 04/2014 - 12/2018
1.6 BlueHDi 120 1560 CCM 120 HP 03/2014 - 12/2018
1.6 HDi 1560 CCM 116 HP 09/2014 - 12/2018
508 SW I (8E_)
Description Cylinder Capacity Horse Power Year
1.6 VTi 1598 CCM 120 HP 11/2010 - 12/2018
1.6 THP 1598 CCM 156 HP 11/2010 - 12/2018
1.6 HDi 1560 CCM 112 HP 11/2010 - 12/2018
2.0 HDi 1997 CCM 140 HP 11/2010 - 12/2018
2.0 HDi 1997 CCM 163 HP 11/2010 - 12/2018
1.6 HDi 1560 CCM 115 HP 02/2012 - 12/2018
2.0 BlueHDi 150 1997 CCM 150 HP 04/2014 - 12/2018
1.6 1598 CCM 165 HP 02/2012 - 12/2018
1.6 BlueHDi 120 1560 CCM 120 HP 03/2014 - 12/2018
1.6 HDi 1560 CCM 116 HP 09/2014 - 12/2018
508 SW Estate Van (8E_)
Description Cylinder Capacity Horse Power Year
2.0 HDi 1997 CCM 163 HP 03/2013 - 12/2018

The Fahren FBD6715 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 290 mm outer diameter, 12 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 12
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 108
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 71
Test Mark : 90R-02C0355/0520
  • Vendor FAHREN
  • SKU FBD6715
  • Barcode 5056758933331
  • PEUGEOT : 4249E0 4249G2
  • APEC : DSK2944
  • APEC : SDK6715
  • BLUE PRINT : ADP154339
  • FEBI BILSTEIN : 44090
  • NAPA : NBD5287
