FAHREN

Fahren FBD6754 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: FBD6754

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£45.86 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD

RANGER (TKE)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	125 HP	From 04/2011
2.2 TDCi 4x4	2198 CCM	125 HP	From 04/2011
2.2 TDCi 4x4	2198 CCM	150 HP	From 04/2011
3.2 TDCi 4x4	3198 CCM	200 HP	From 04/2011
2.2 TDCi	2198 CCM	120 HP	From 04/2011
2.5 i 4x4	2488 CCM	166 HP	From 11/2011
2.2 TDCi	2198 CCM	150 HP	From 11/2011
2.2 TDCi	2198 CCM	160 HP	From 05/2015
2.2 TDCi 4x4	2198 CCM	160 HP	From 05/2015
2.2 TDCi	2198 CCM	131 HP	From 05/2015
2.2 TDCi 4x4	2198 CCM	131 HP	From 05/2015
2.0 EcoBlue 4x4	1996 CCM	213 HP	From 09/2018
2.0 EcoBlue 4x4	1996 CCM	131 HP	From 03/2019
2.0 EcoBlue 4x4	1996 CCM	170 HP	From 03/2019

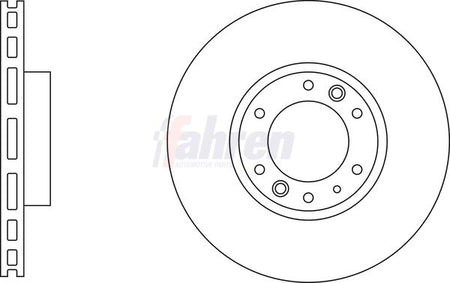

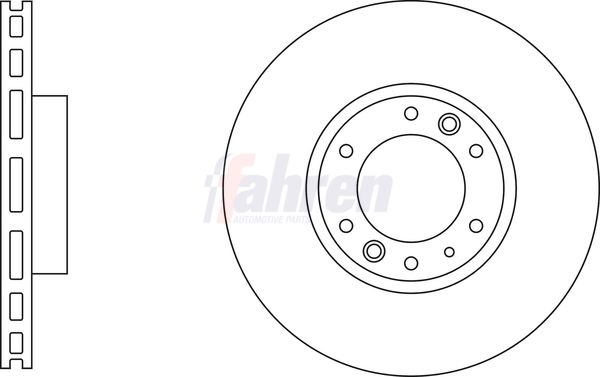

The Fahren FBD6754 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 302 mm outer diameter, 32 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 302

Brake Disc Thickness [mm] : 32

Height [mm] : 61

Bolt Hole Circle Ø [mm] : 140

Wheel Bolt Bore Diameter [mm] : 13

Centering Diameter [mm] : 98

Test Mark : 90R-02C0349/1373
