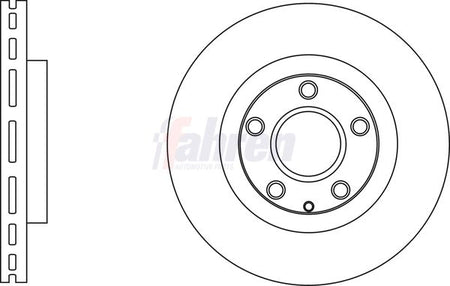

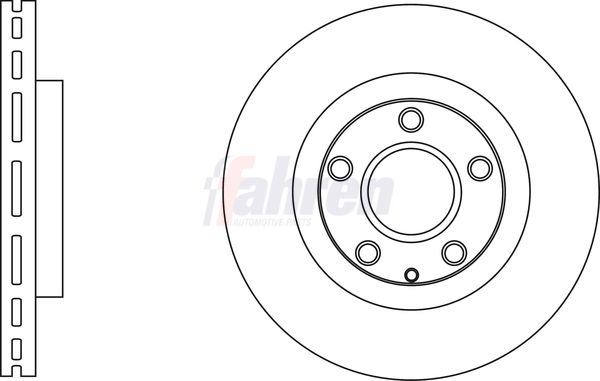

Fahren FBD6763 Brake Disc

SKU: FBD6763

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£35.42 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA

6 Estate (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.2 D (GJ2FW, GJ692)	2191 CCM	175 HP	08/2012 - 02/2018
2.0 (GJEFW)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFW)	1998 CCM	165 HP	From 01/2013
2.2 D	2191 CCM	150 HP	10/2012 - 12/2020
2.2 D AWD	2191 CCM	150 HP	12/2012 - 12/2020
2.5	2488 CCM	194 HP	From 03/2018

6 Saloon (GJ, GL)

Description	Cylinder Capacity	Horse Power	Year
2.2 D (GJ2FP, GJ1021, GJ1022, GL1021)	2191 CCM	175 HP	From 12/2012
2.0 (GJ2, GL2, GL6)	1998 CCM	146 HP	From 01/2013
2.0 (GJEFP)	1998 CCM	165 HP	From 01/2013
2.2 D (GJ2FP)	2191 CCM	150 HP	12/2012 - 11/2020
2.0	1998 CCM	150 HP	12/2012 - 02/2018
2.5	2488 CCM	194 HP	From 03/2018

CX-5 (KE, GH)

Description	Cylinder Capacity	Horse Power	Year
2.0 (KEEFW)	1998 CCM	165 HP	11/2011 - 02/2017
2.2 D (KE2FW)	2191 CCM	150 HP	04/2012 - 02/2017
2.2 D AWD (KE2AW)	2191 CCM	150 HP	04/2012 - 02/2017
2.2 D AWD (KE102)	2191 CCM	175 HP	04/2012 - 02/2017

The Fahren FBD6763 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 297 mm outer diameter, 28 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 297

Brake Disc Thickness [mm] : 28

Height [mm] : 51

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 68

Test Mark : 90R-02C0349/1159

Fahren FBD6763 Brake Disc
